Observatory

The pictures run parallel on the progress of the work.

 Lots of viewing pleasure !

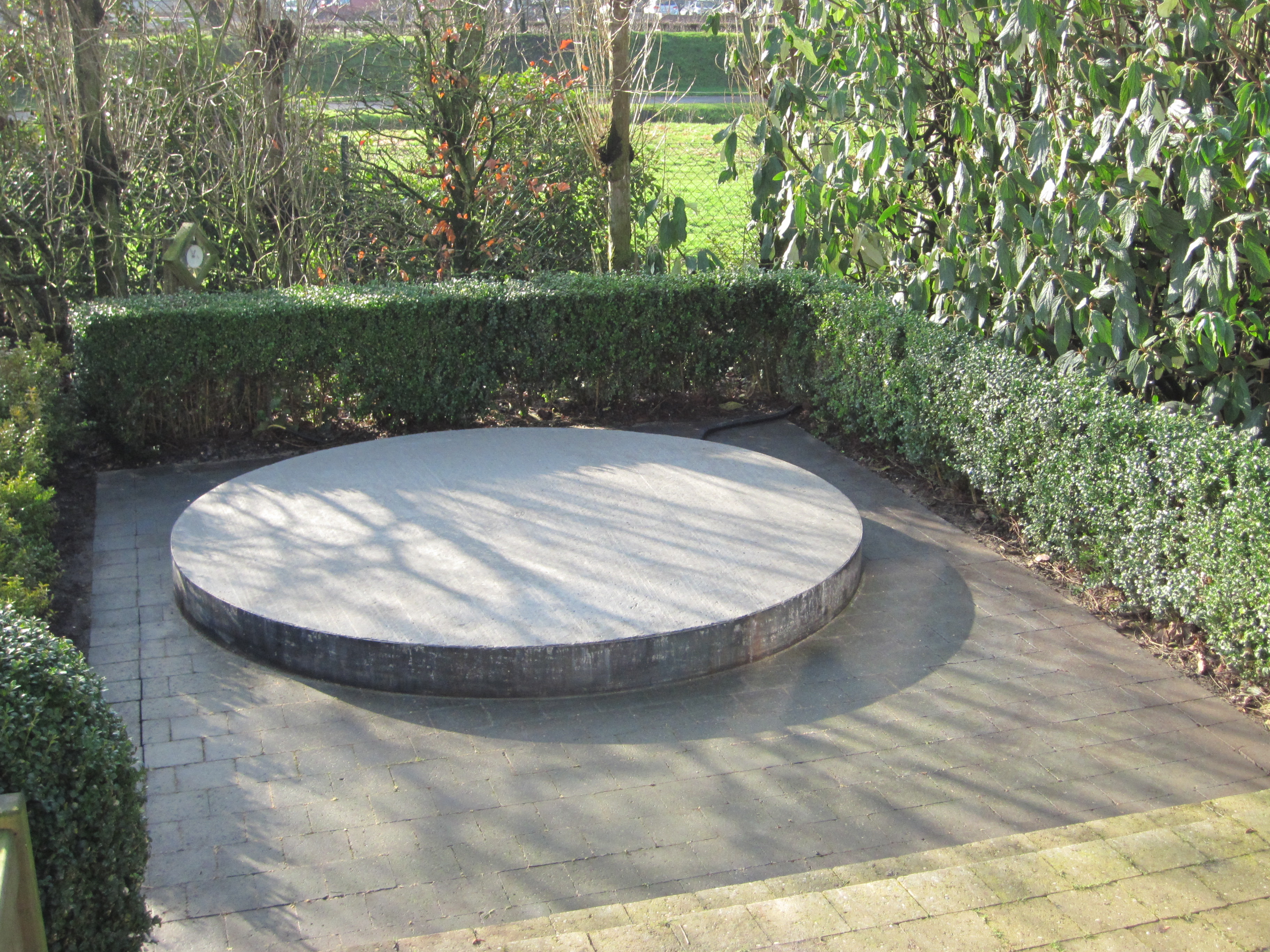

DSCN2460
Round concrete floor, this is the “beginning” of my project !
DSCN2464

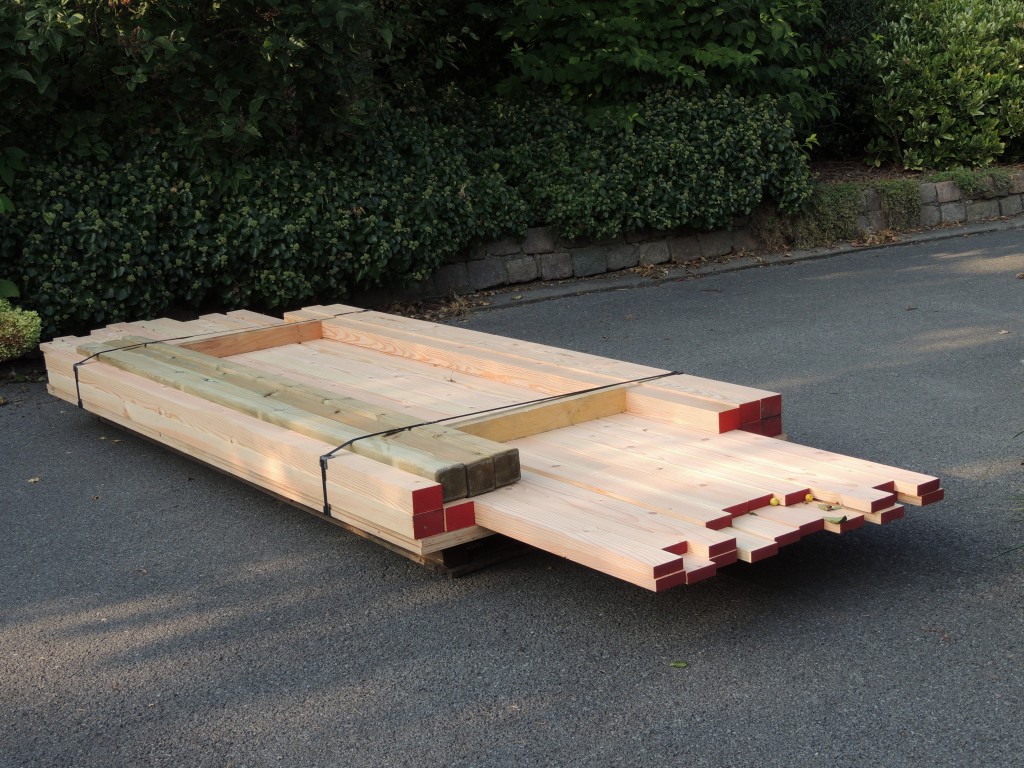

First load of wood, many will still follow.
DSCN2463
Stijn brings the wood to the construction site.
DSCN2465

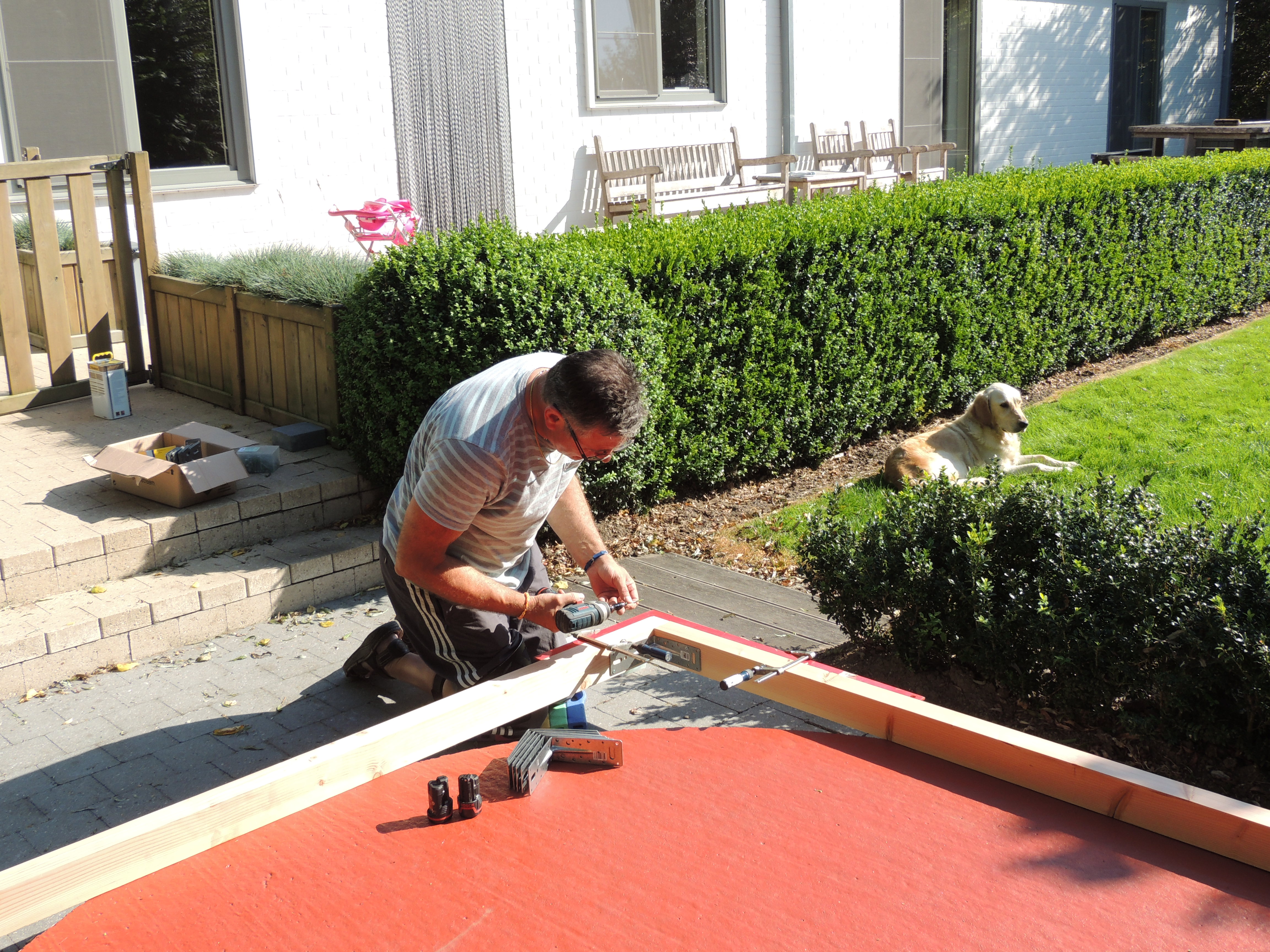

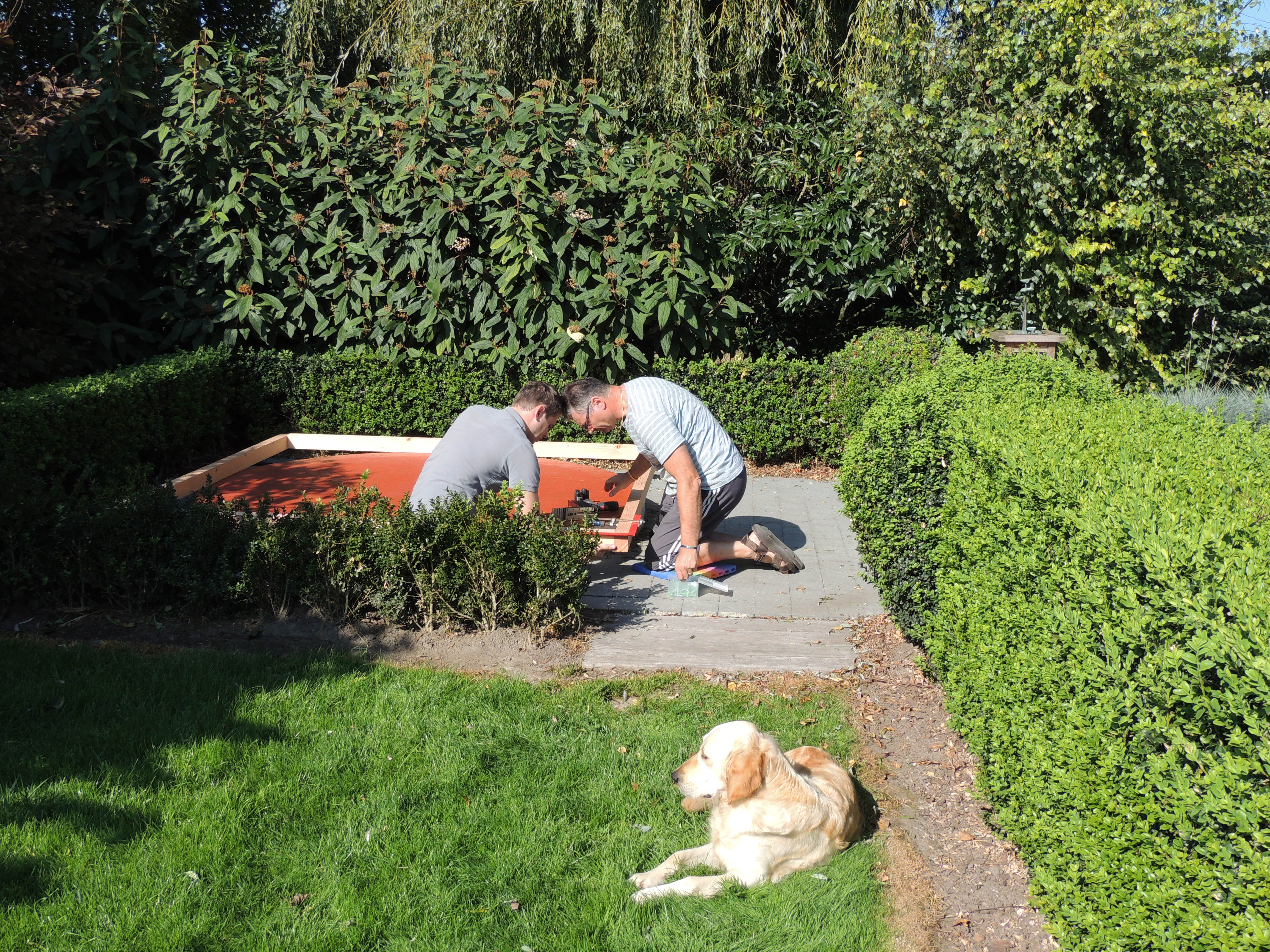

Brecht and I place the bottom edges.
DSCN2466
Securing the corners, our dog Ziva is very quiet.
DSCN2467

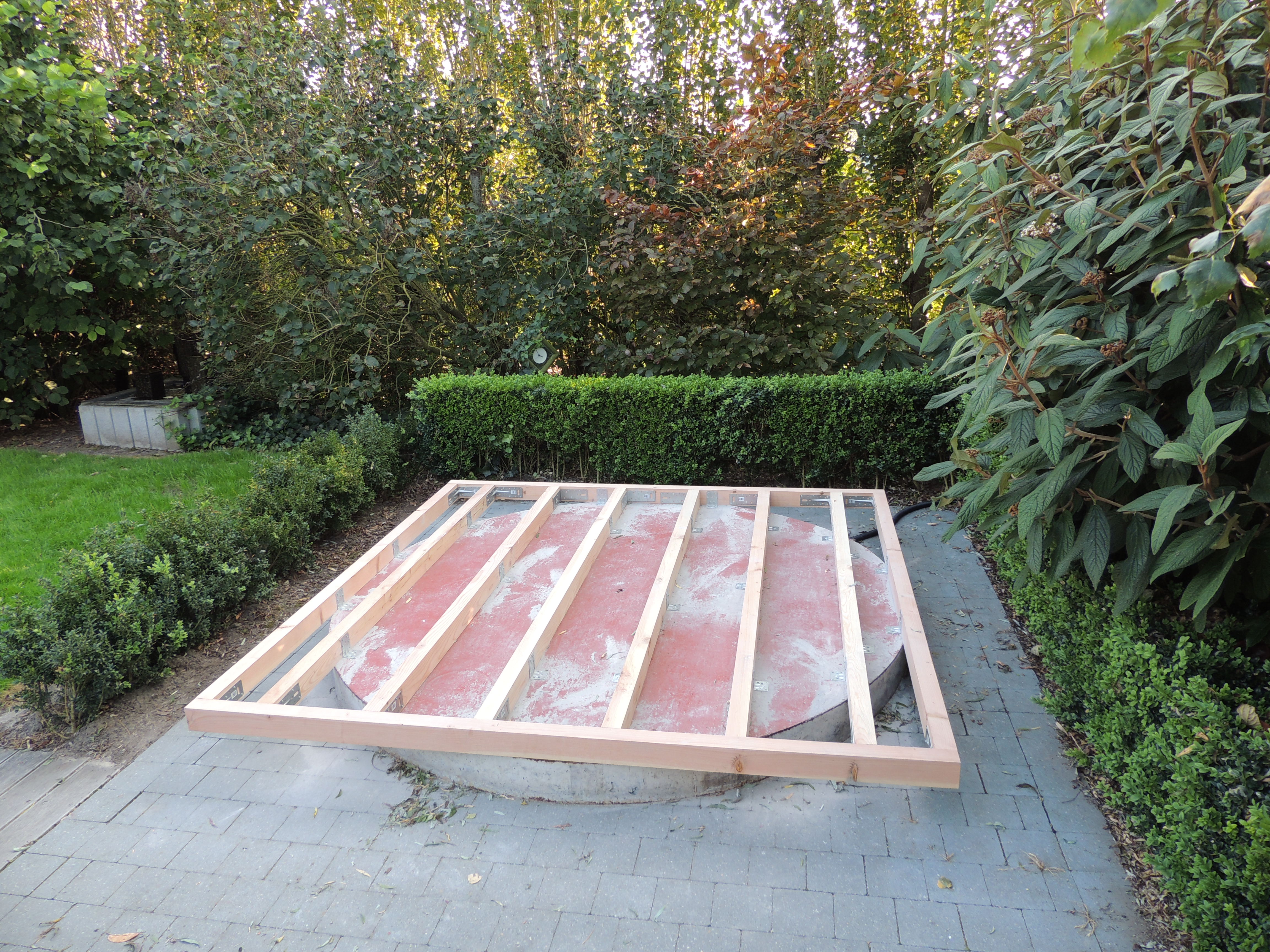

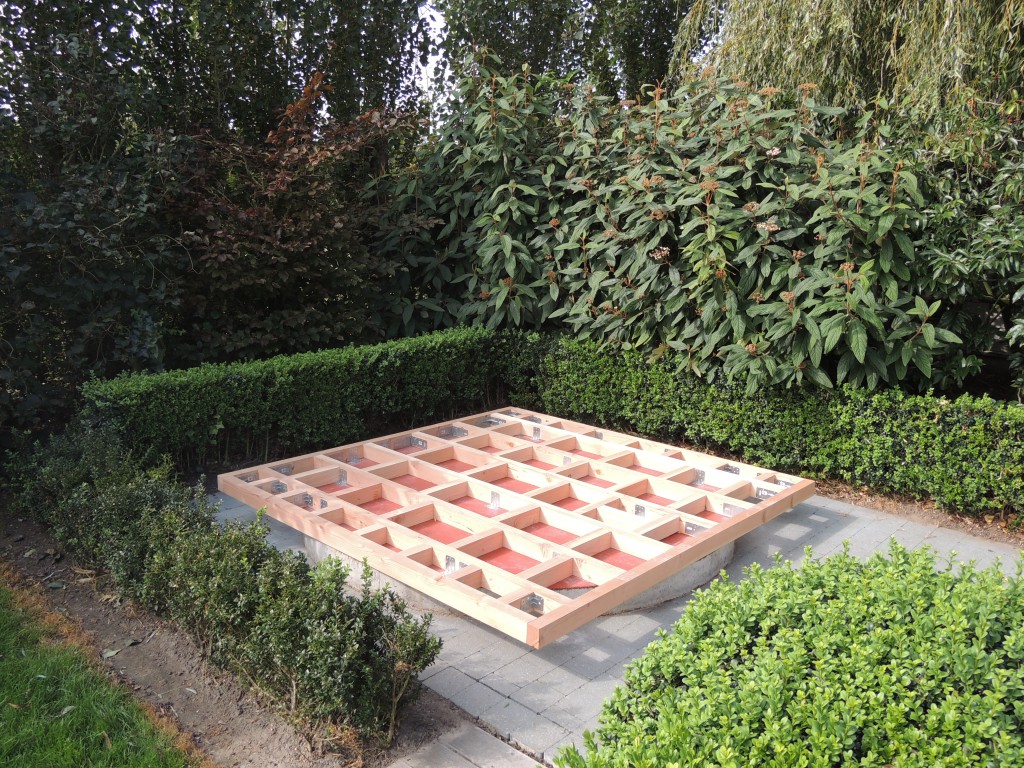

All stringers are fastened to the concrete slab, floating above the flat ground.
DSCN2468
All the pieces give the necessary reinforcement, everything is now connected to each other.
DSCN2469

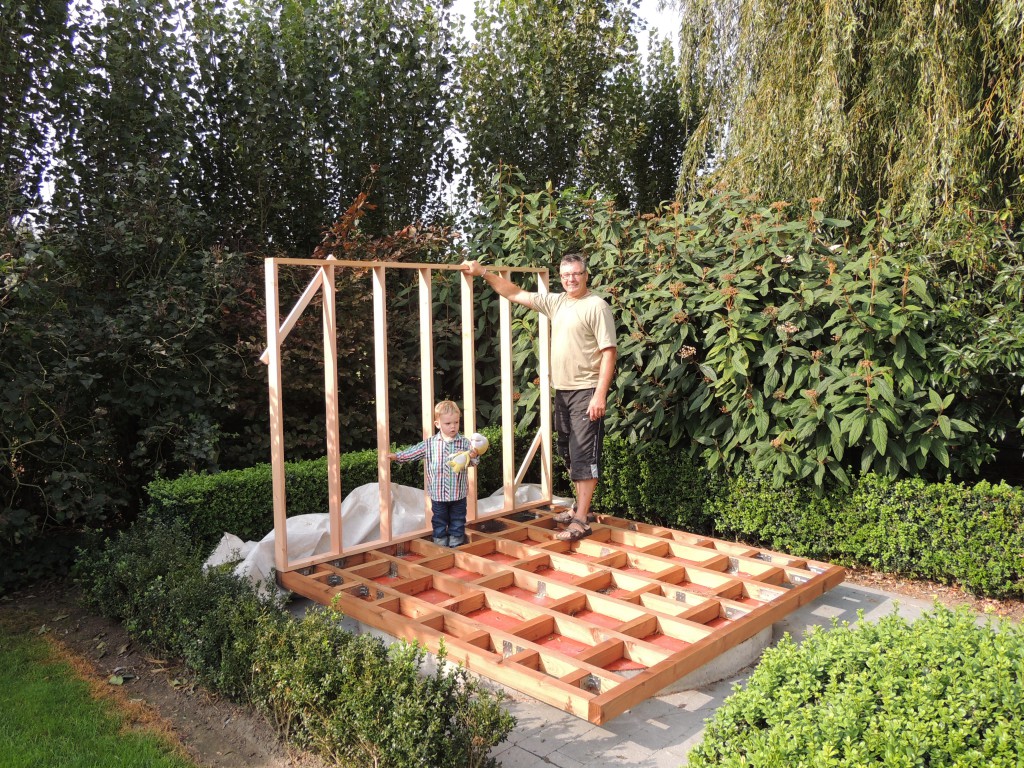

Grandson Léan at the placement of the back wall.
DSCN2471

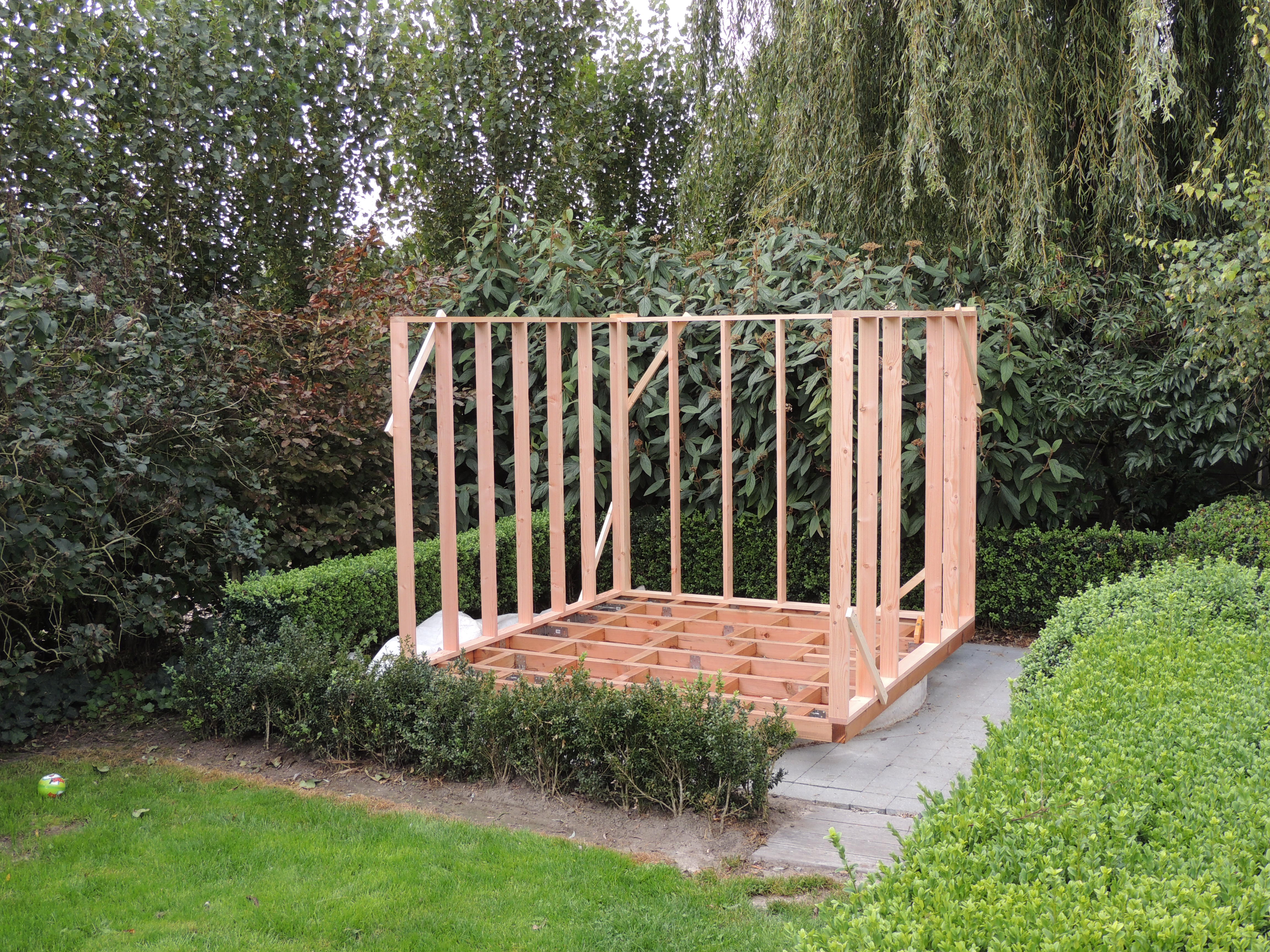

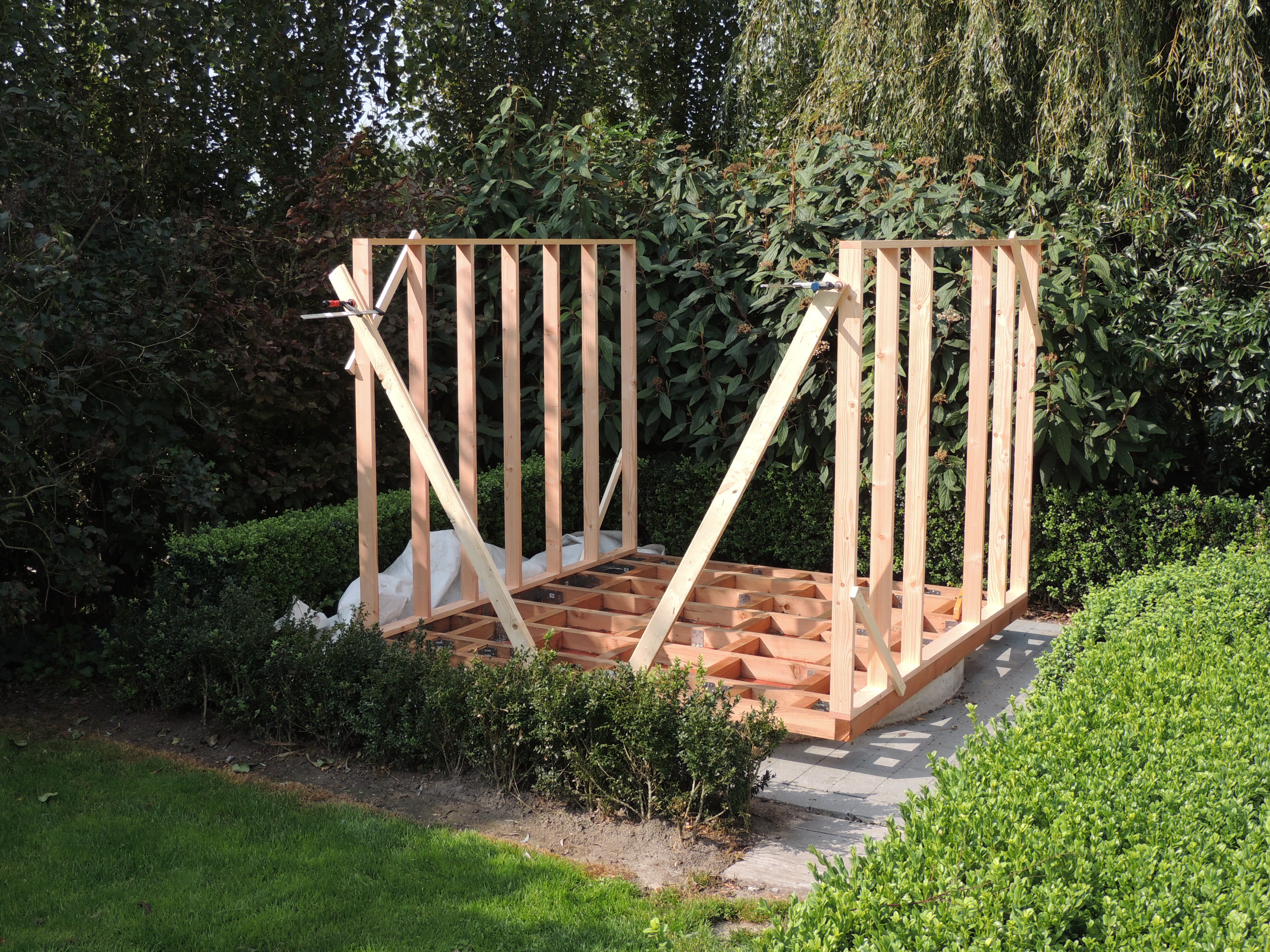

For wall with the door opening is in place.
DSCN2472
Right side panel fits nicely between.
DSCN2474

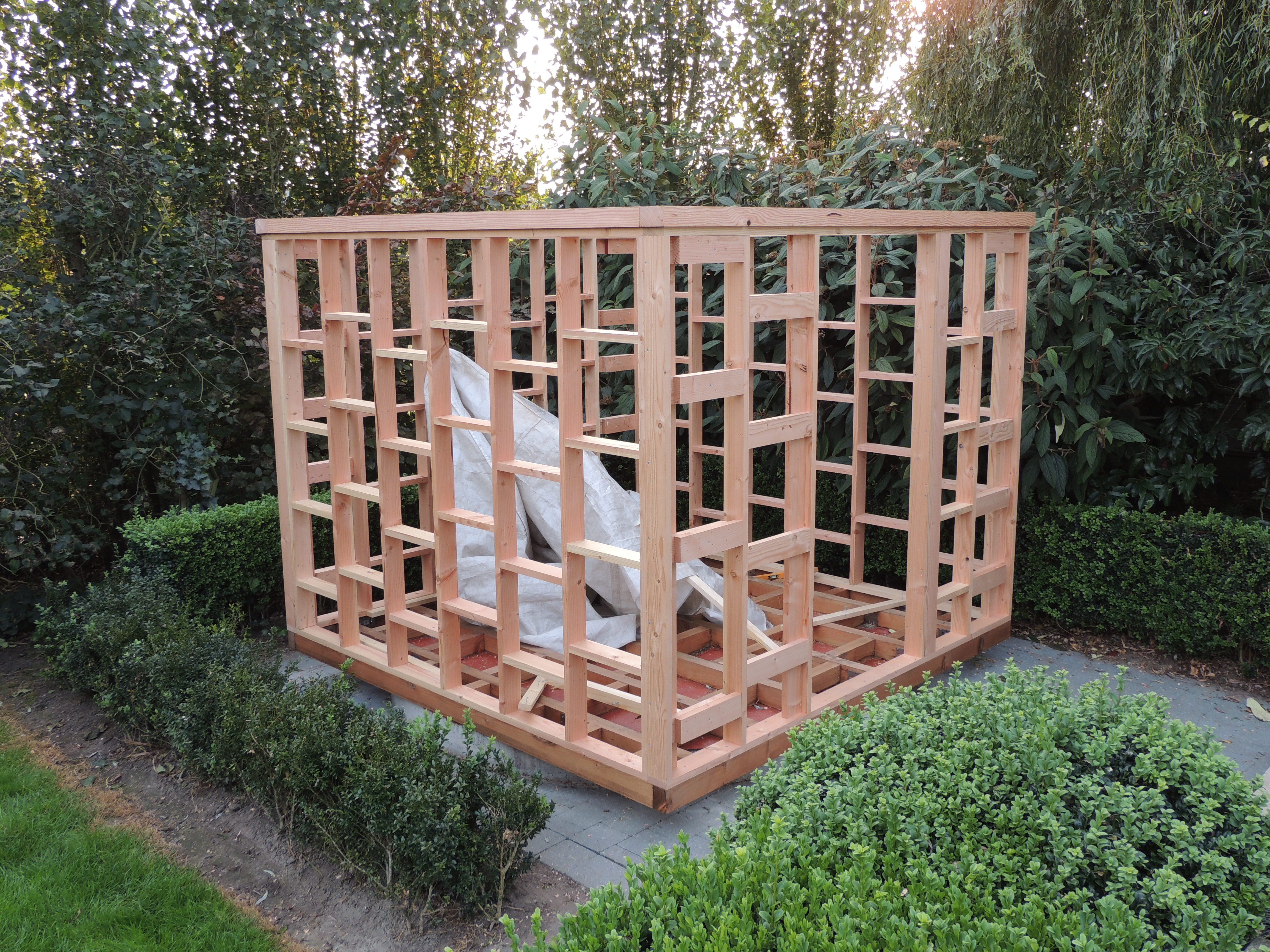

All vertical structures are now strengthened and connected to a horizontal framework.
Also the rain protection is provided.

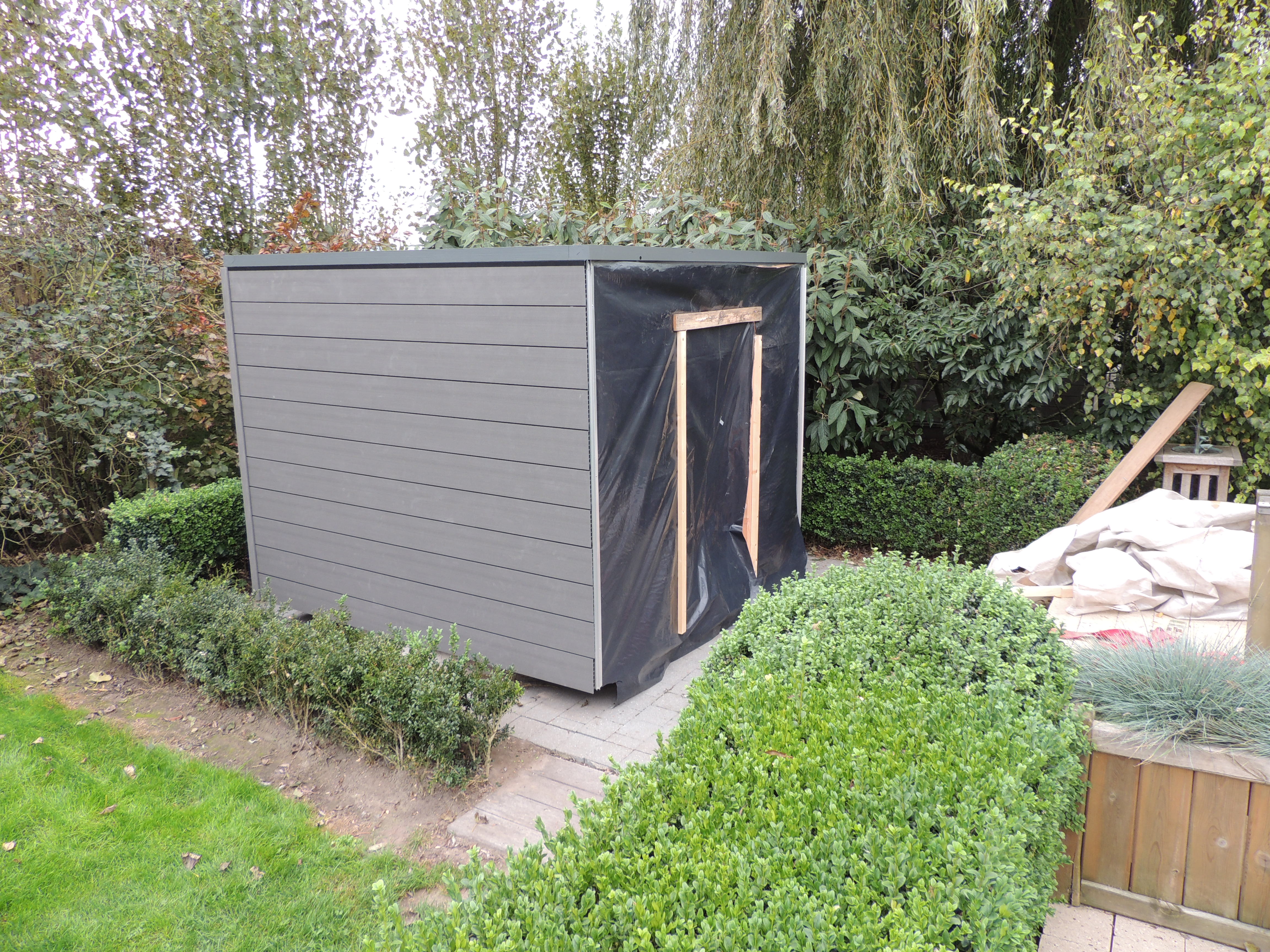

DSCN2475

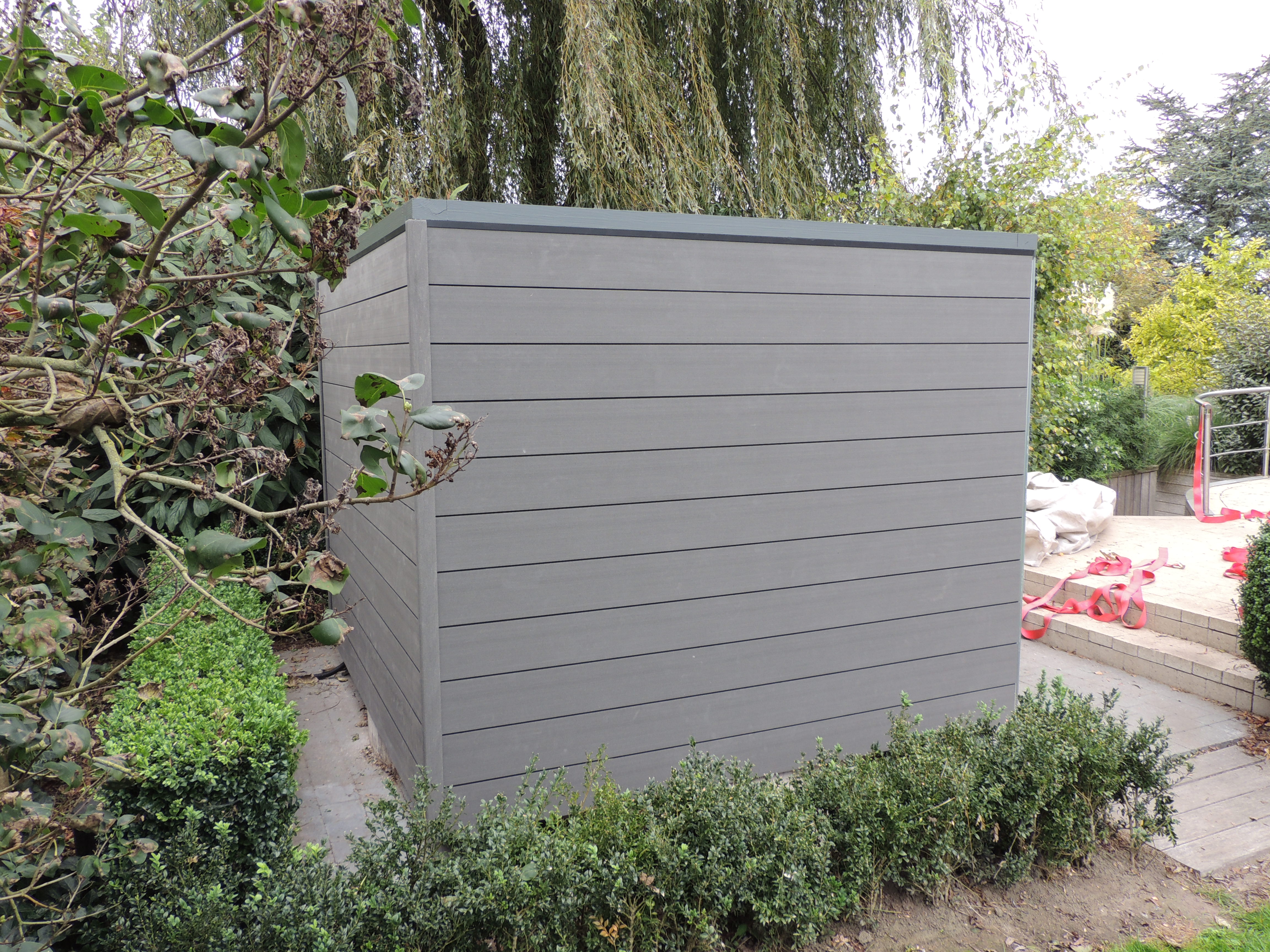

“Twinson” facade cladding system is composed of “composite” and is maintenance-free.
DSCN2478

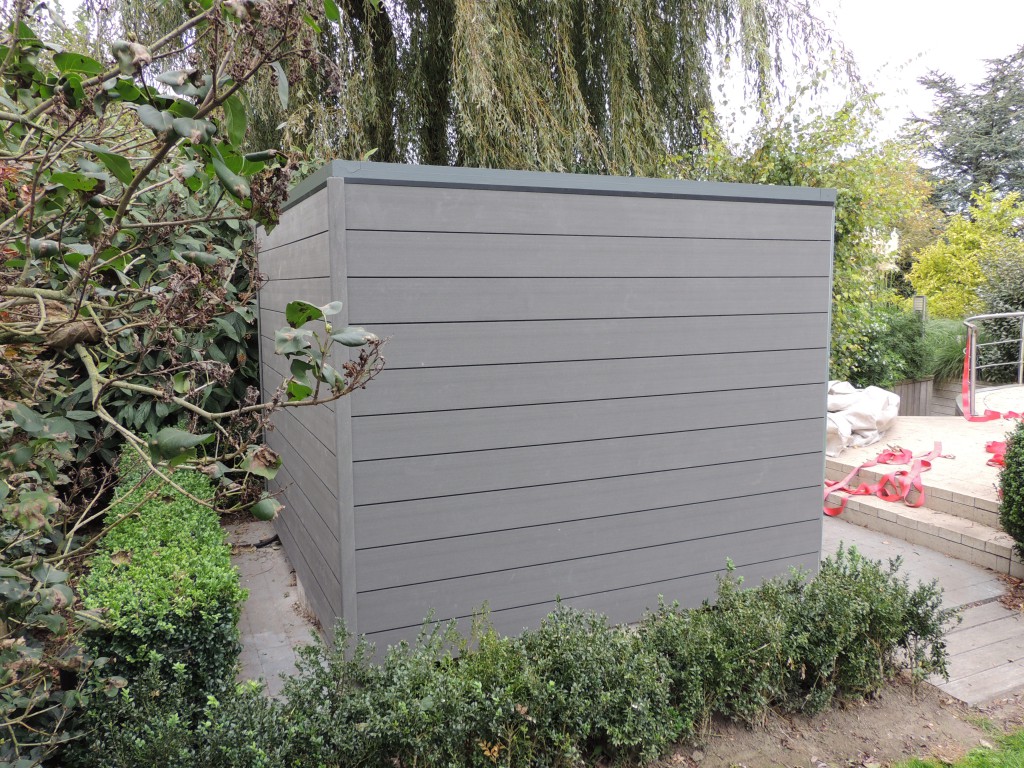

Side and rear with the “liquorice-black” covering.
DSCN2479

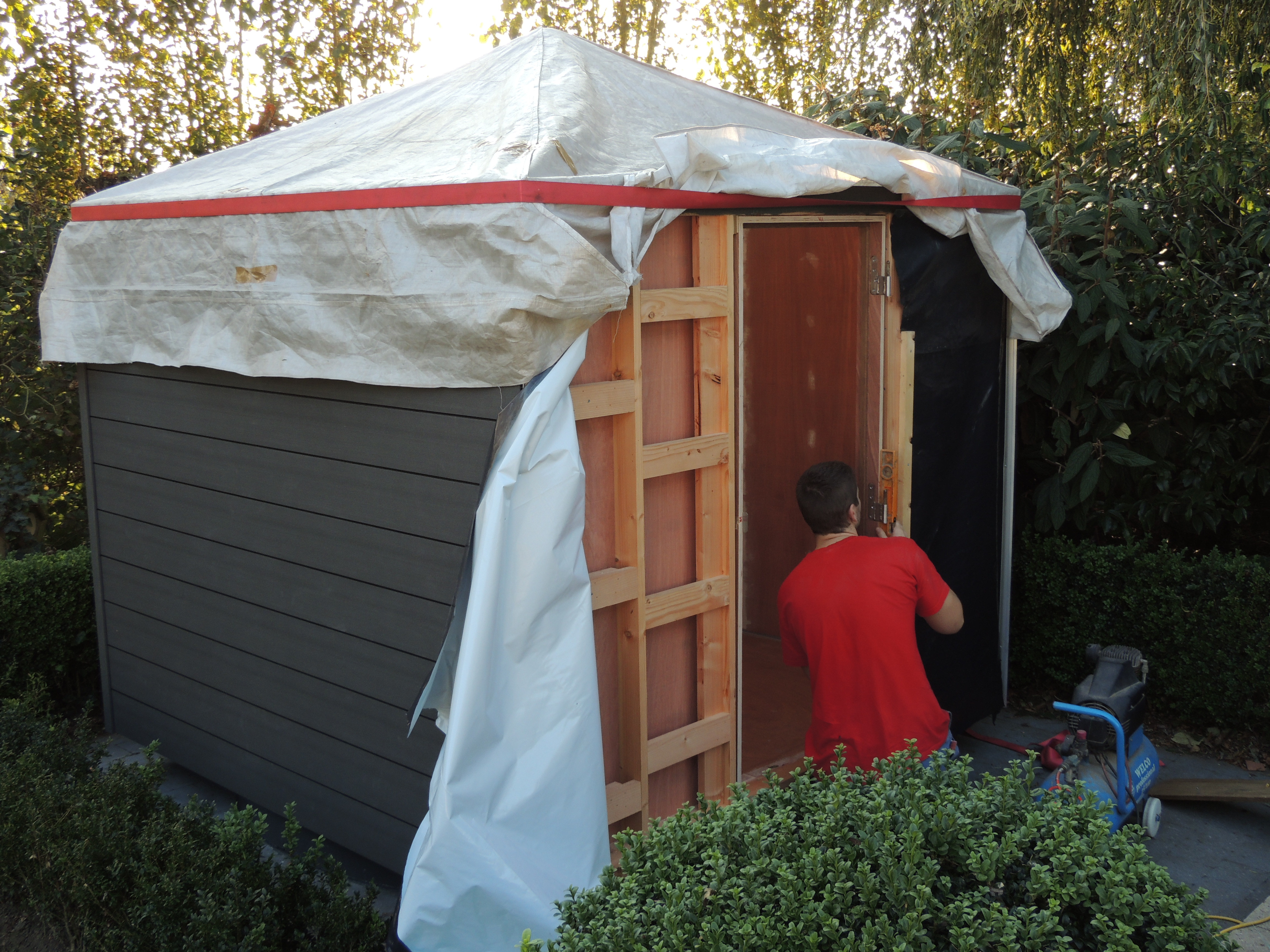

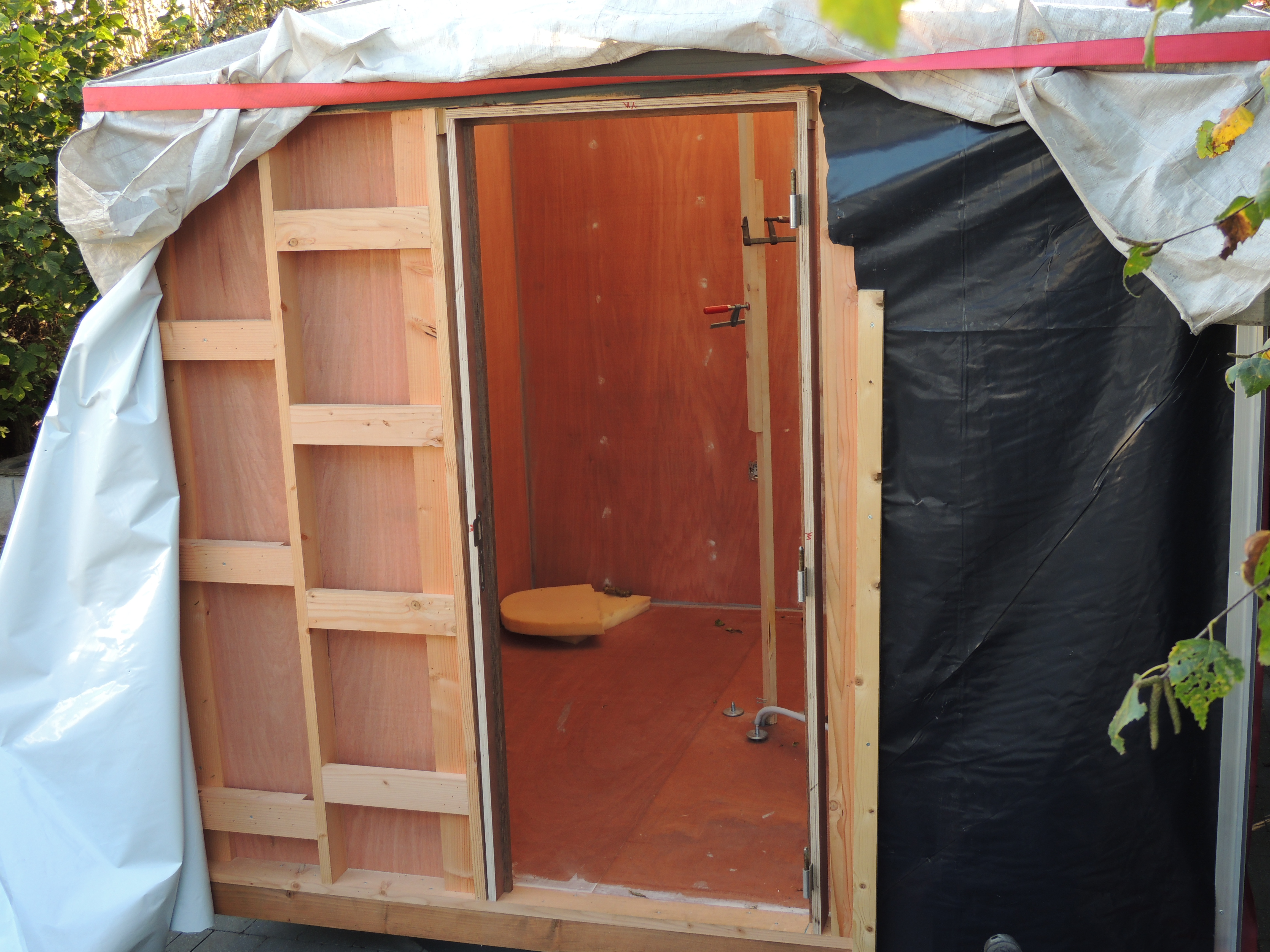

Open front with Interior, the anchorage points and power supply for the column is already present.
DSCN2480
Door frame leveled, the rain protection is not far away.
DSCN2483

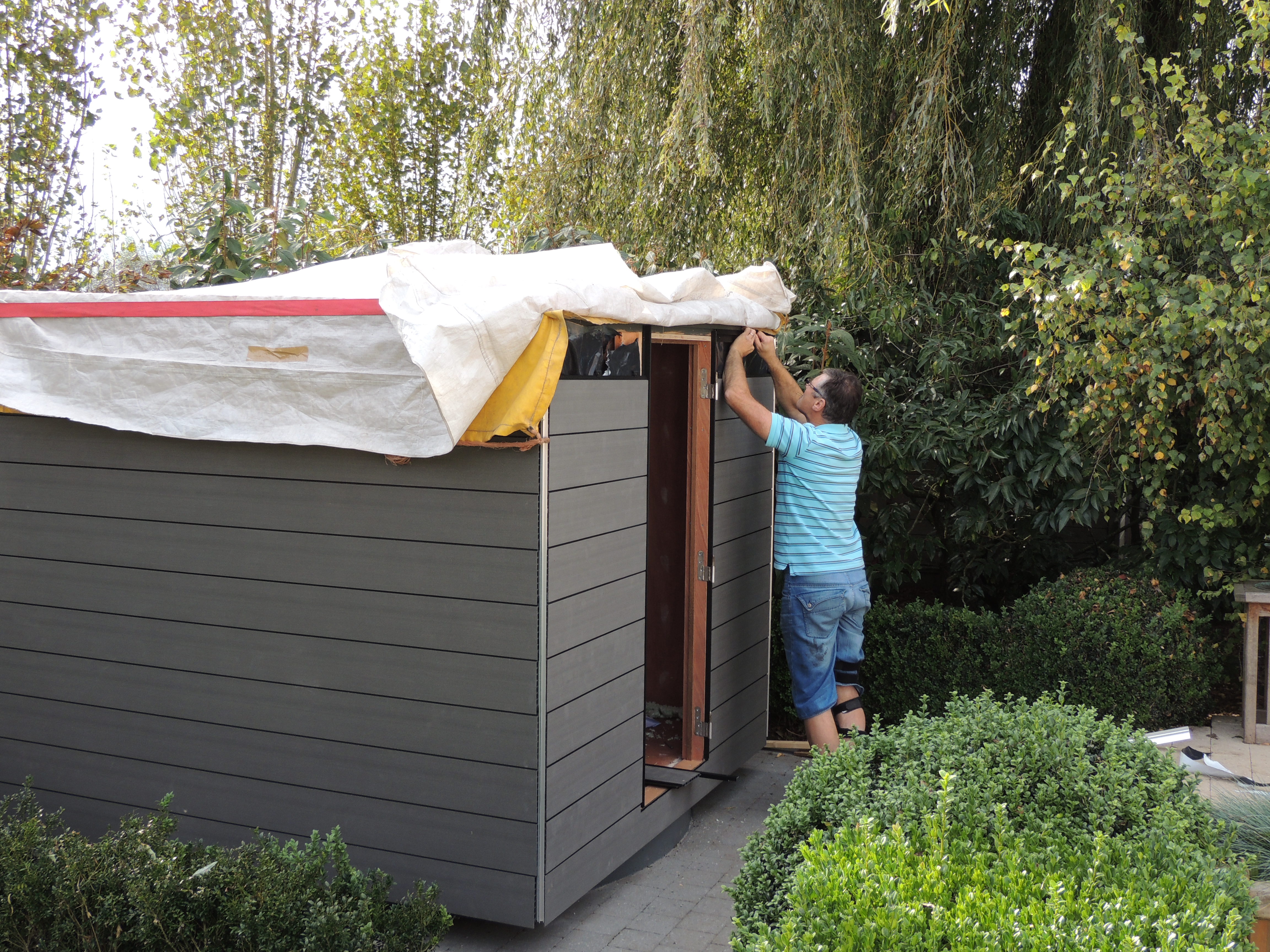

Last adjustment of the front side cladding.

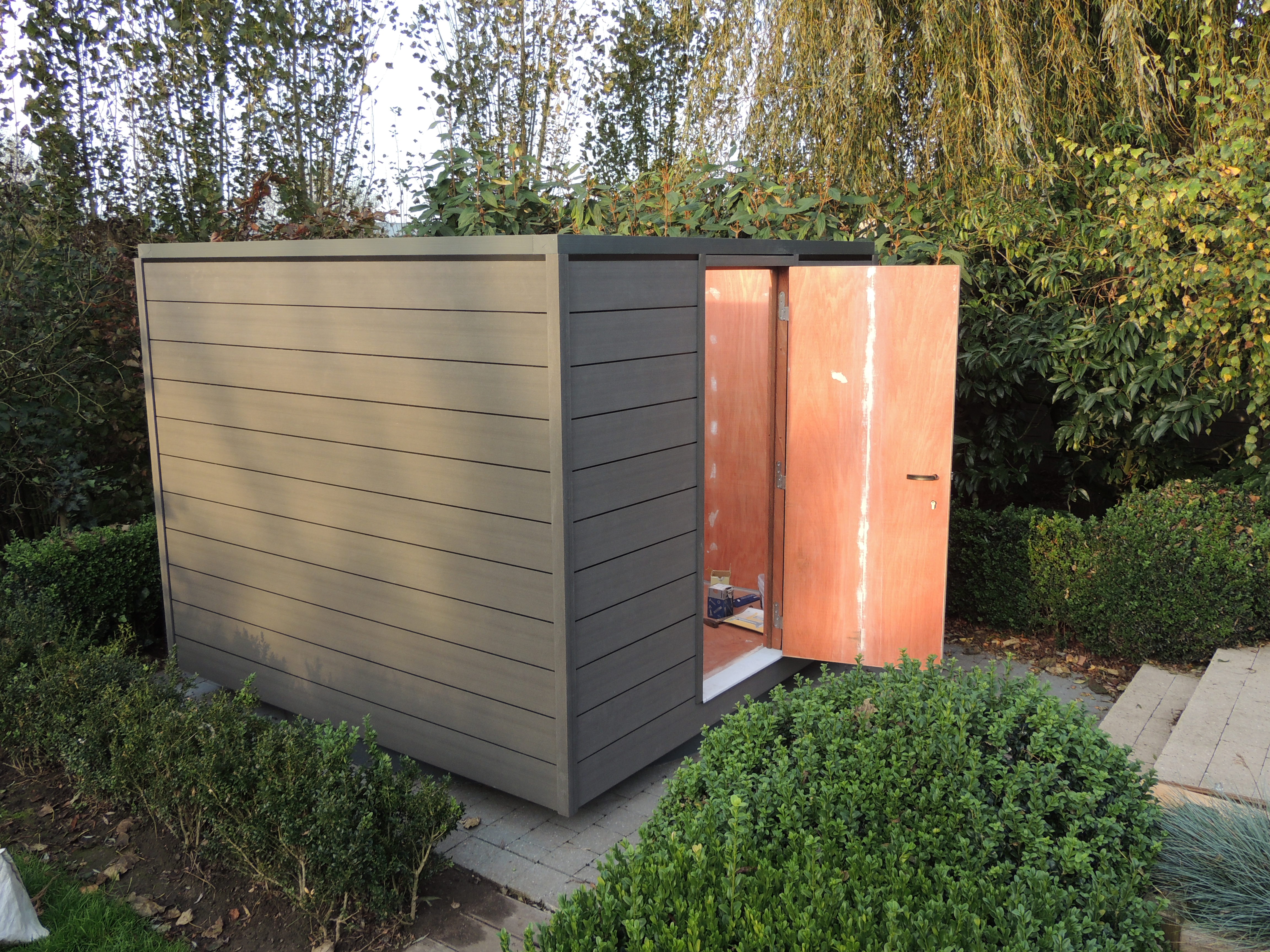

DSCN2484

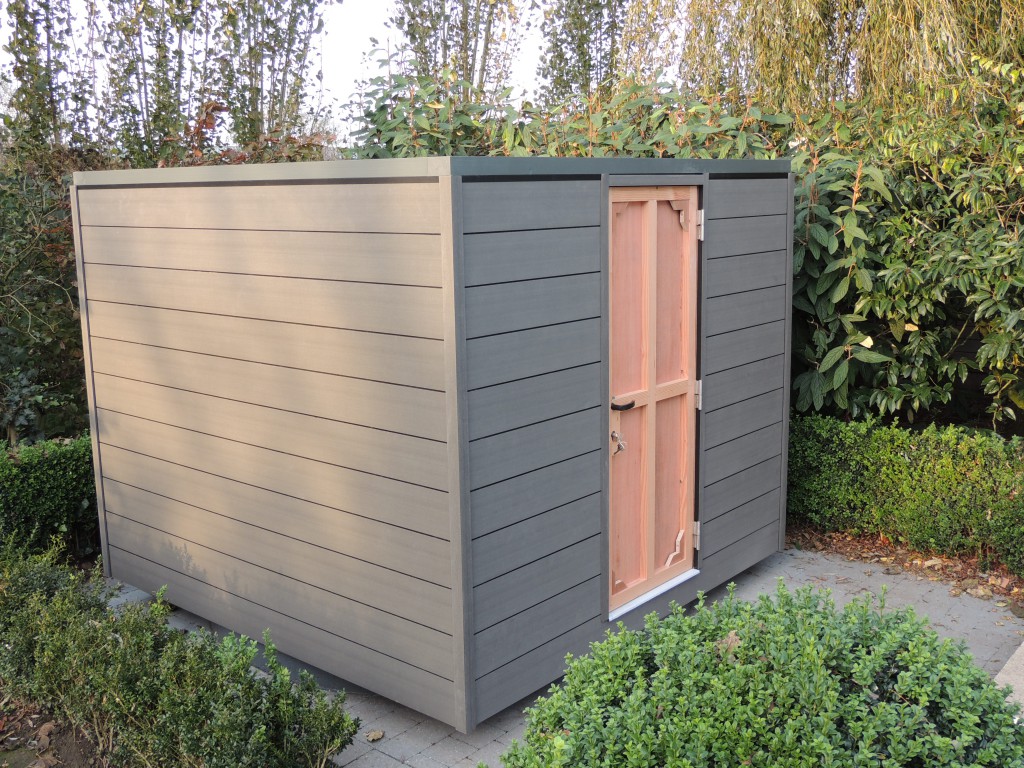

“Open” door with a normal step height.
DSCN2485
“Closed” door with reinforcements.
DSCN2486

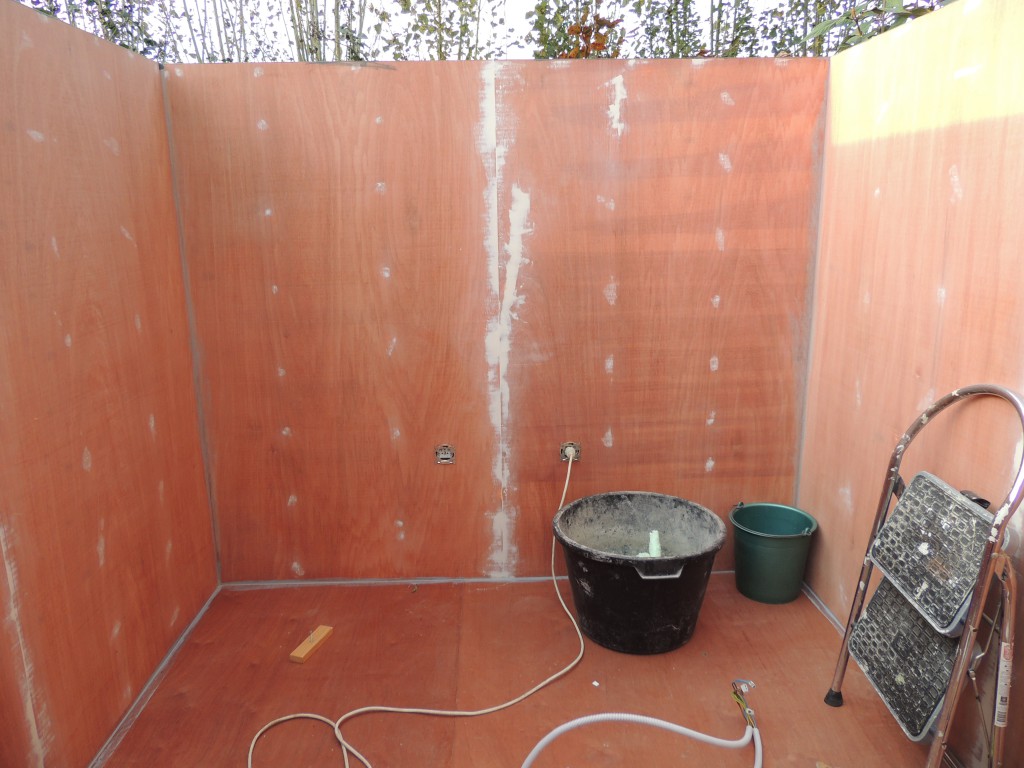

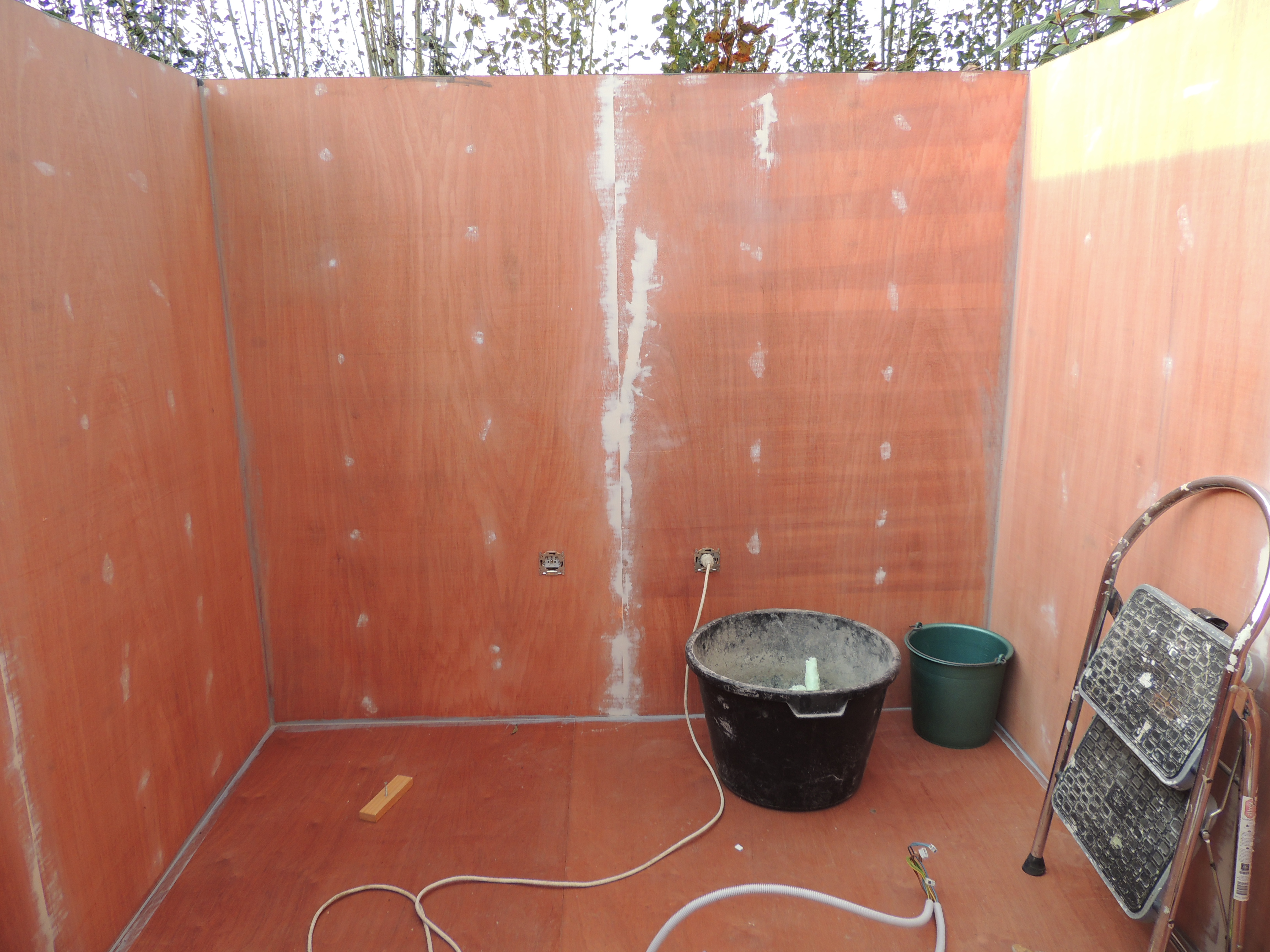

View of the still unfinished inside, electricity already conneted.
DSCN2488

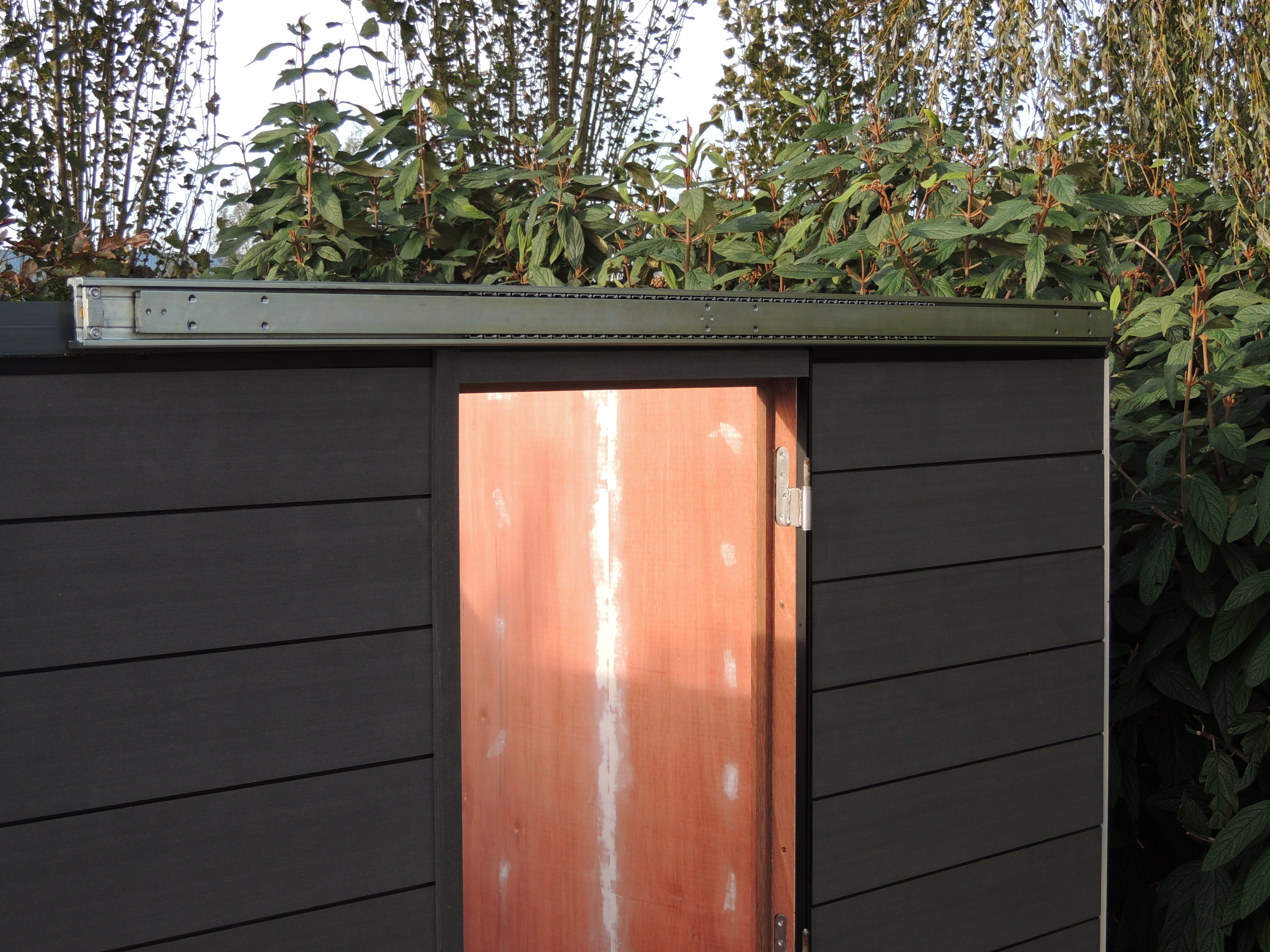

Very heavy telescopic slides screwed to the front and rear.
DSCN2489

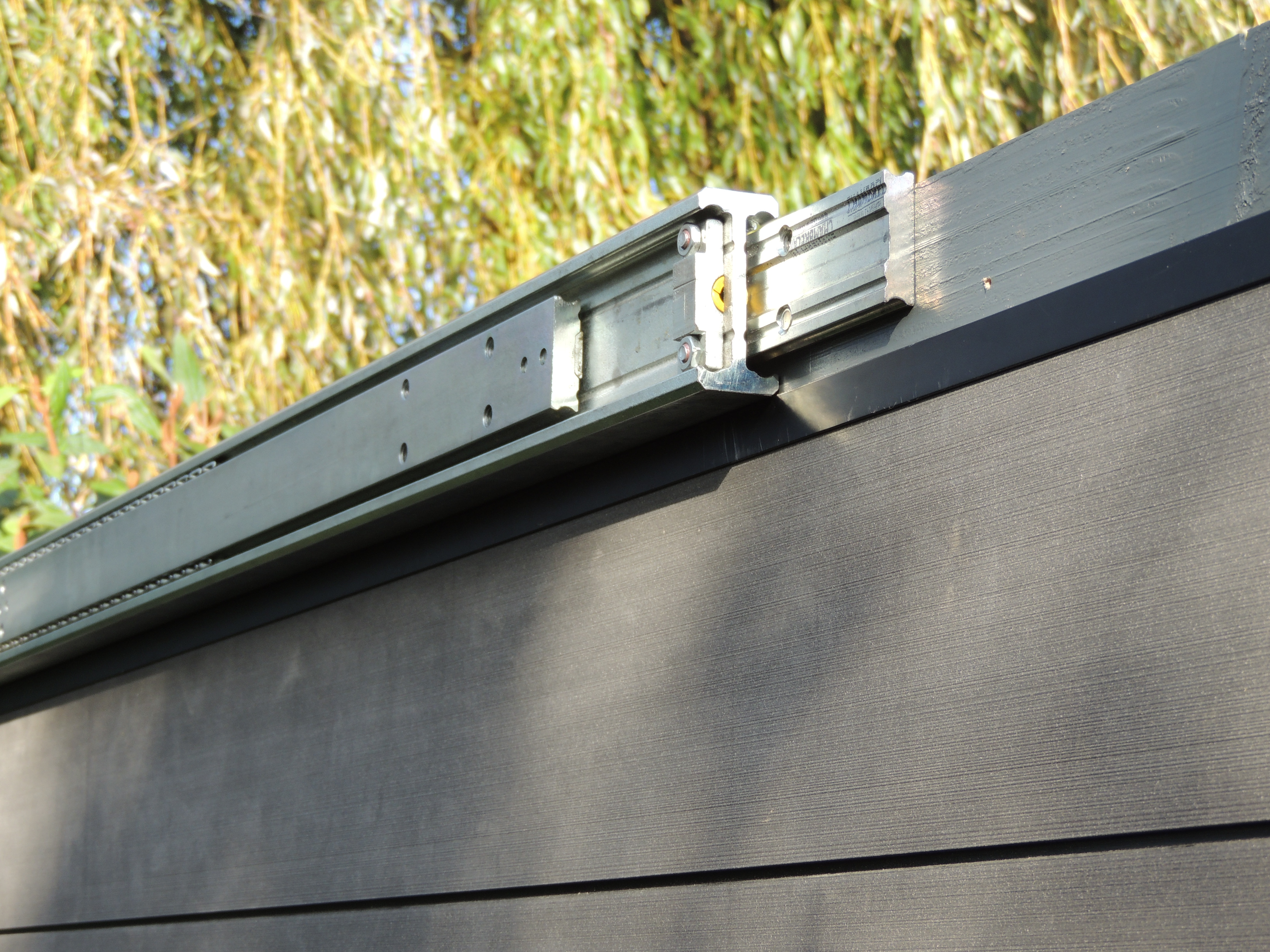

Many “ball’s” follow each other closely.

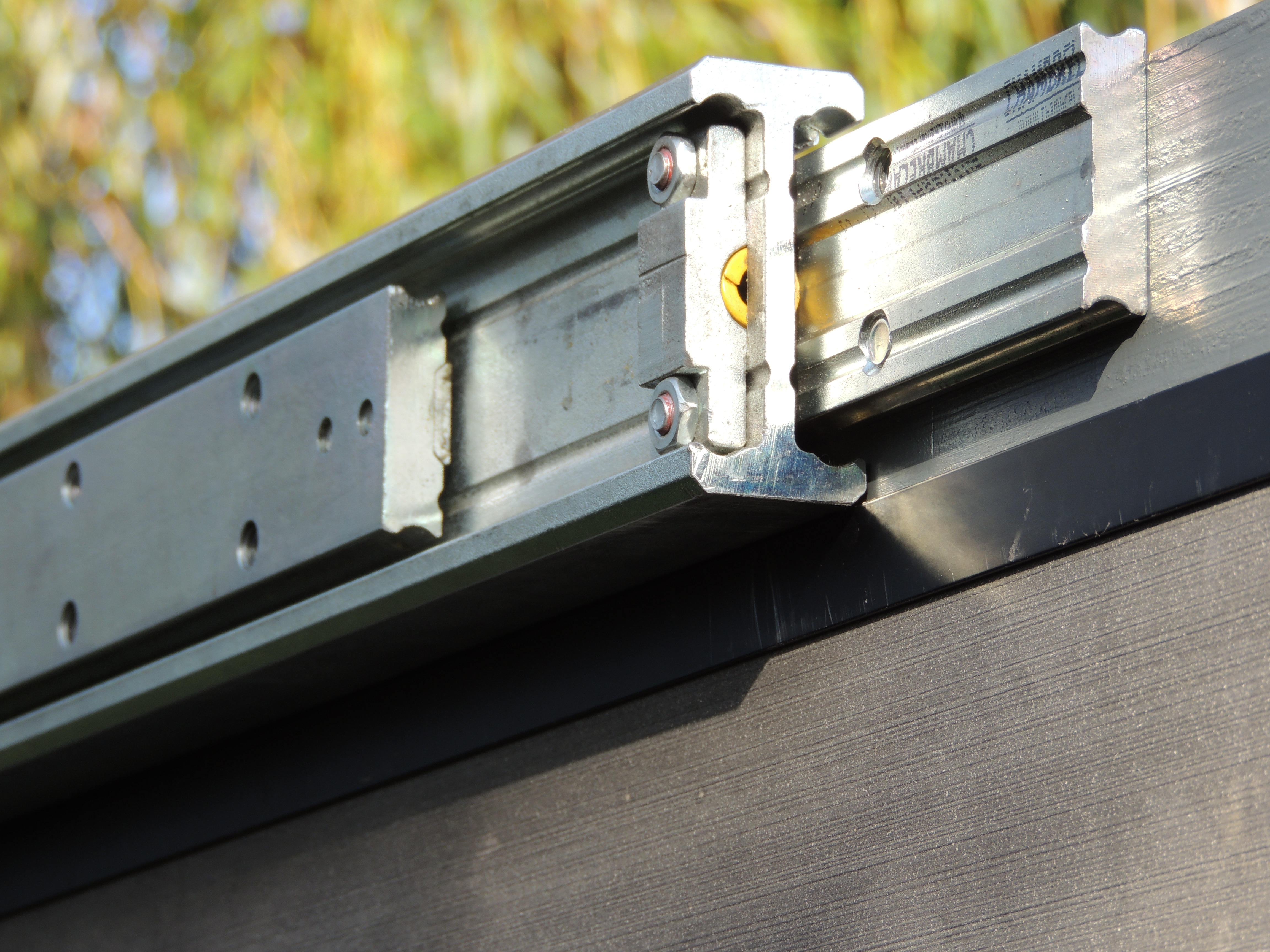

DSCN2490
Very close view of the sturdy shock absorber.
DSCN2491

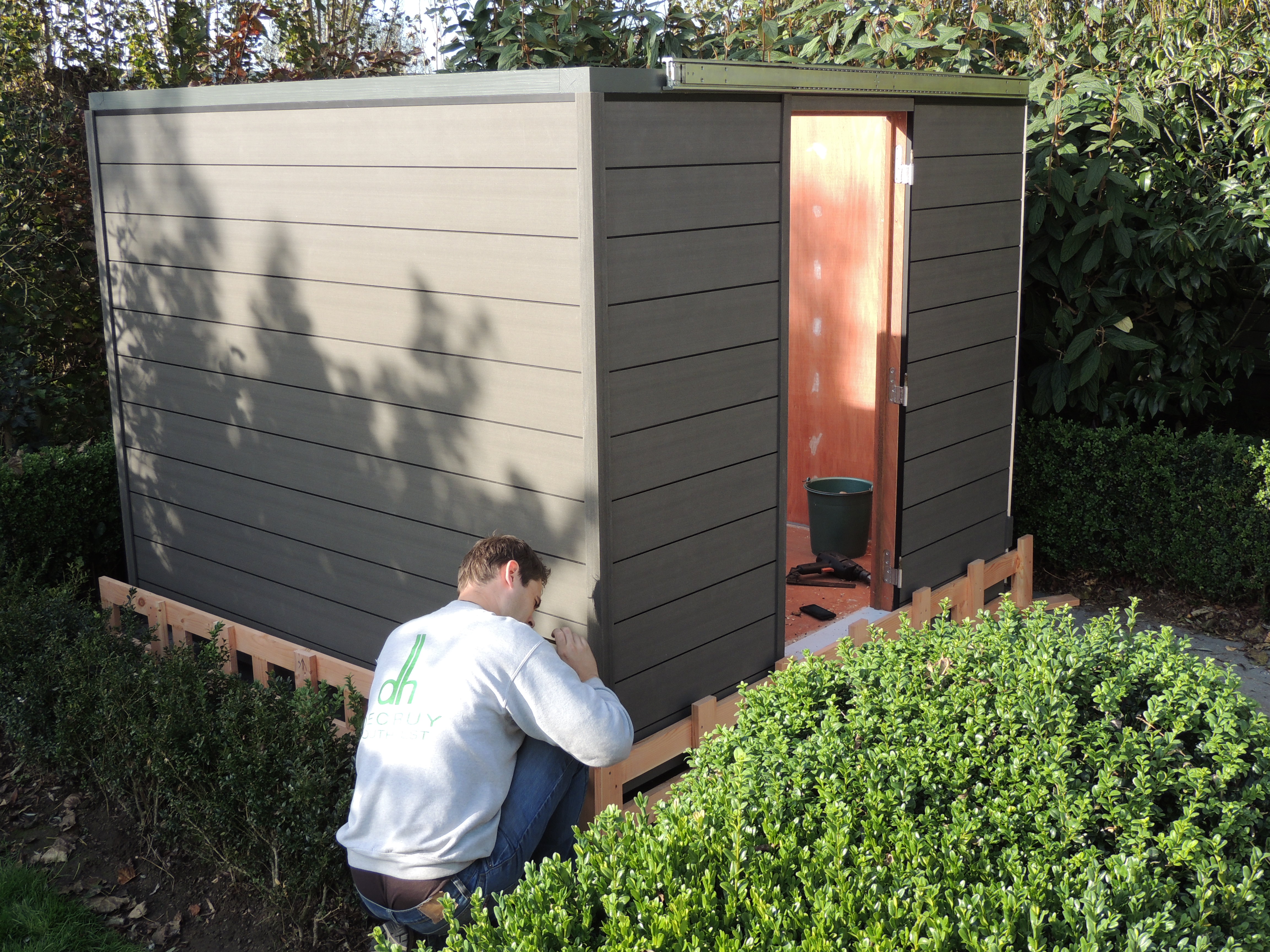

“Thinking” as preparation of the roof assembly.

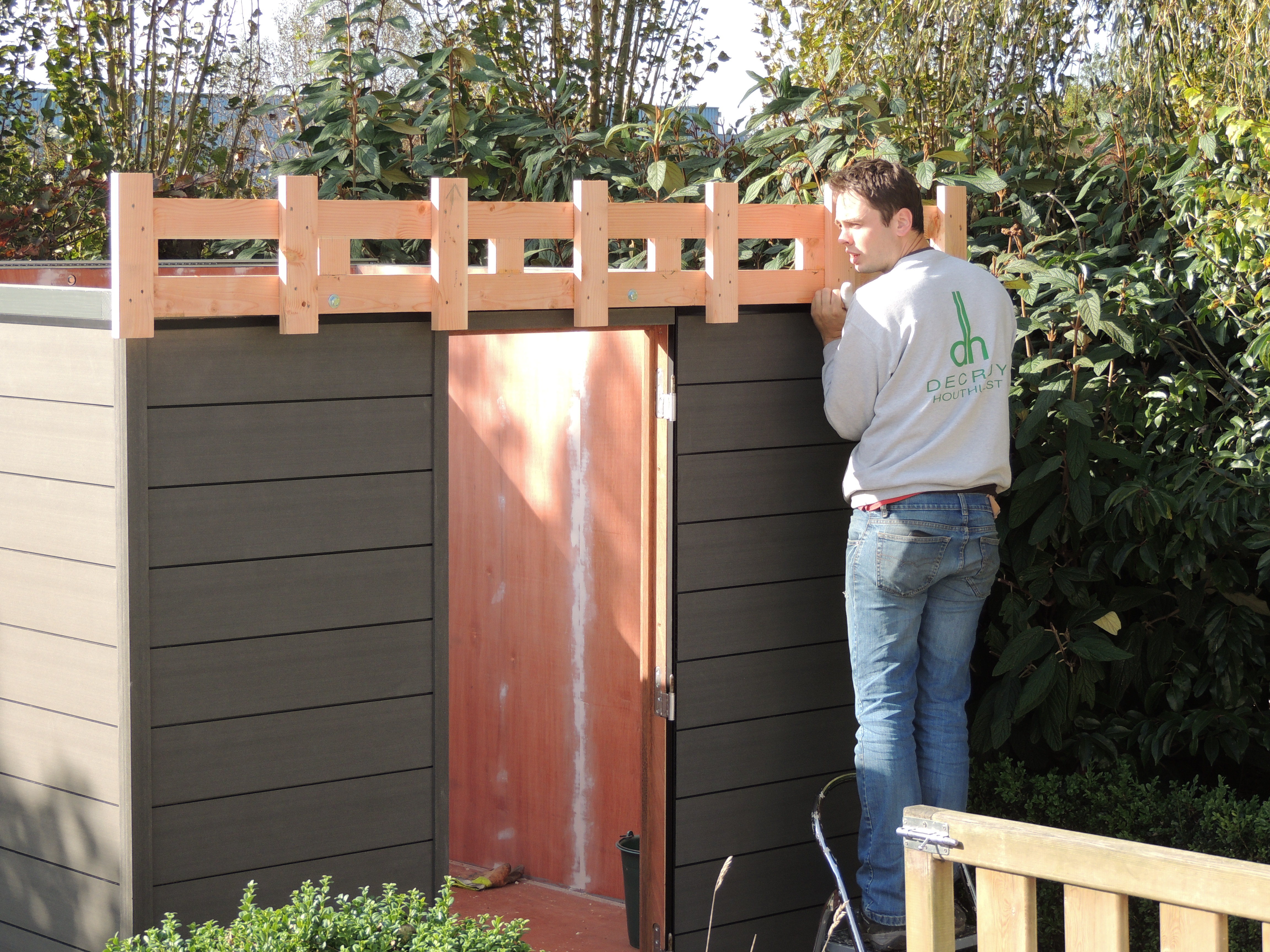

DSCN2492

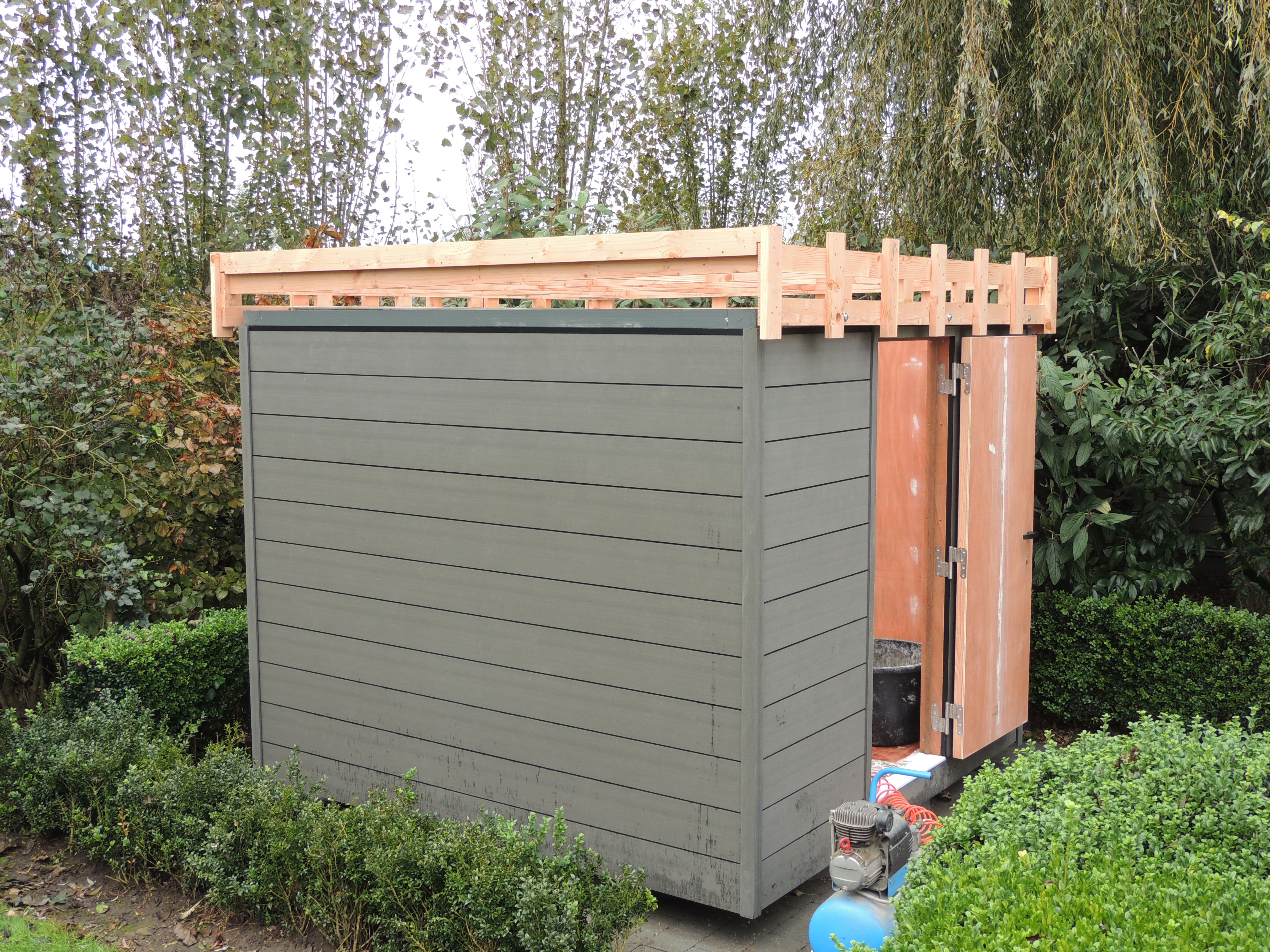

Placement of the first side, which is fastened to the telescopic slide.
DSCN2494

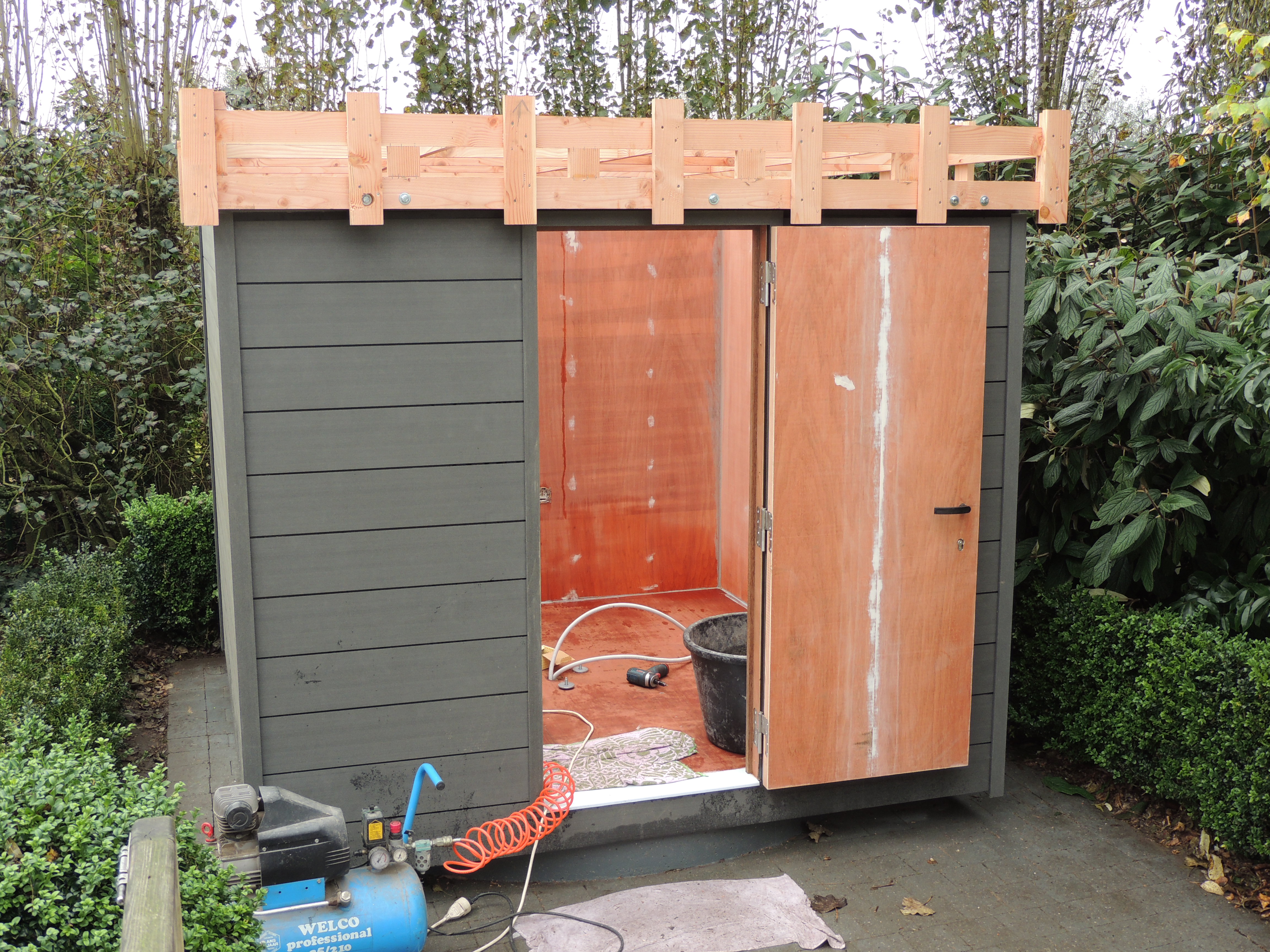

Roof is constructed with a minimum of wood to keep the weight into the allowed capacity.
DSCN2495
Had a lot of rain last night. 🙁

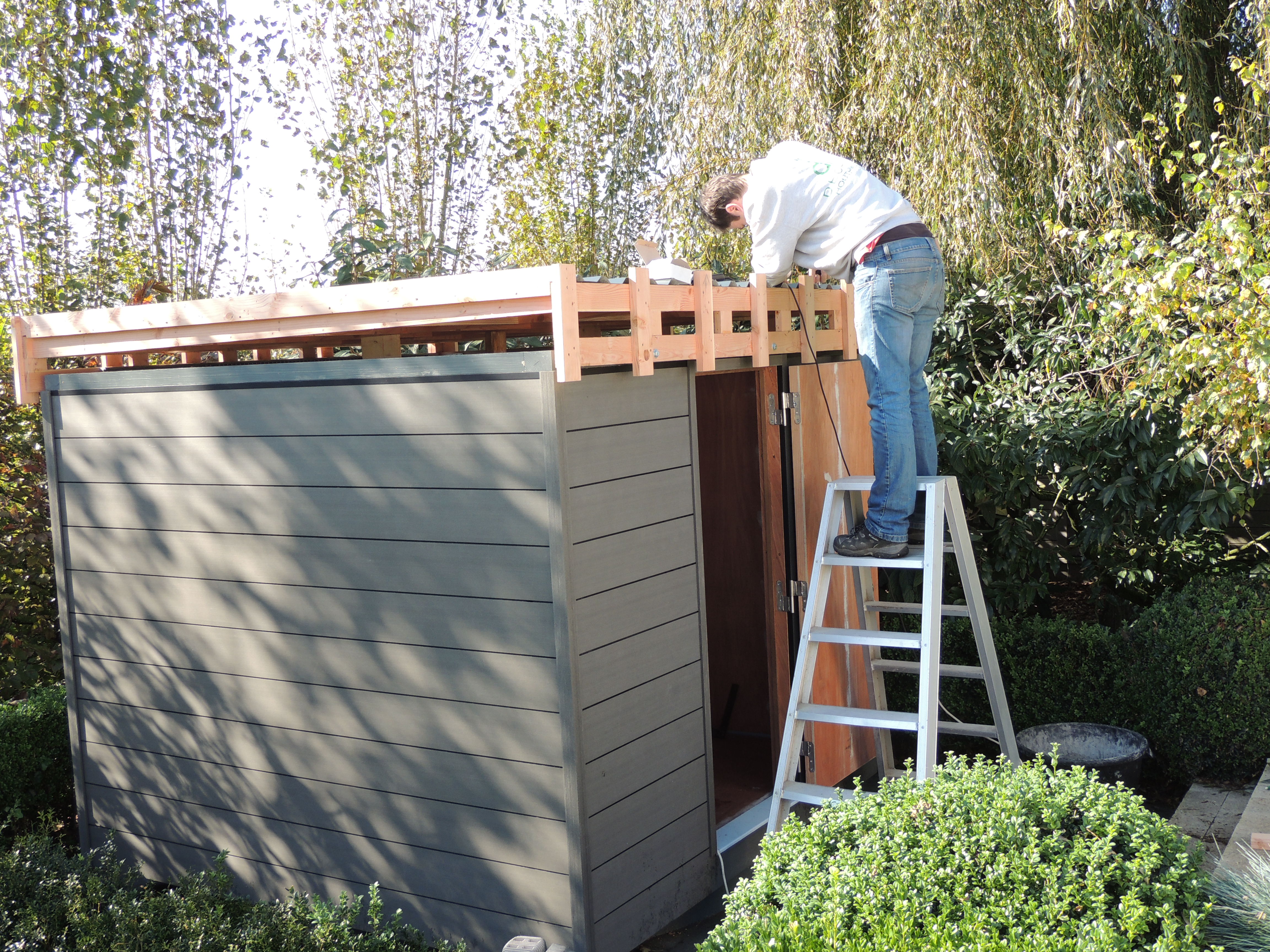

DSCN2497
Attaching the roof plates with screws that are equipped with a seal.

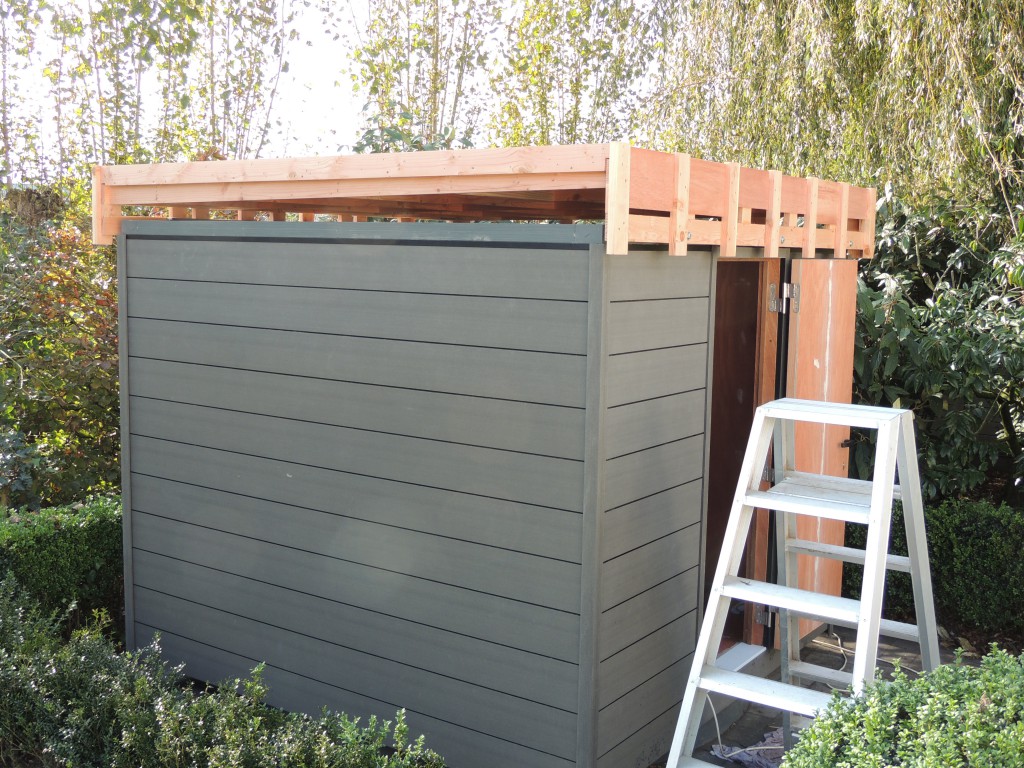

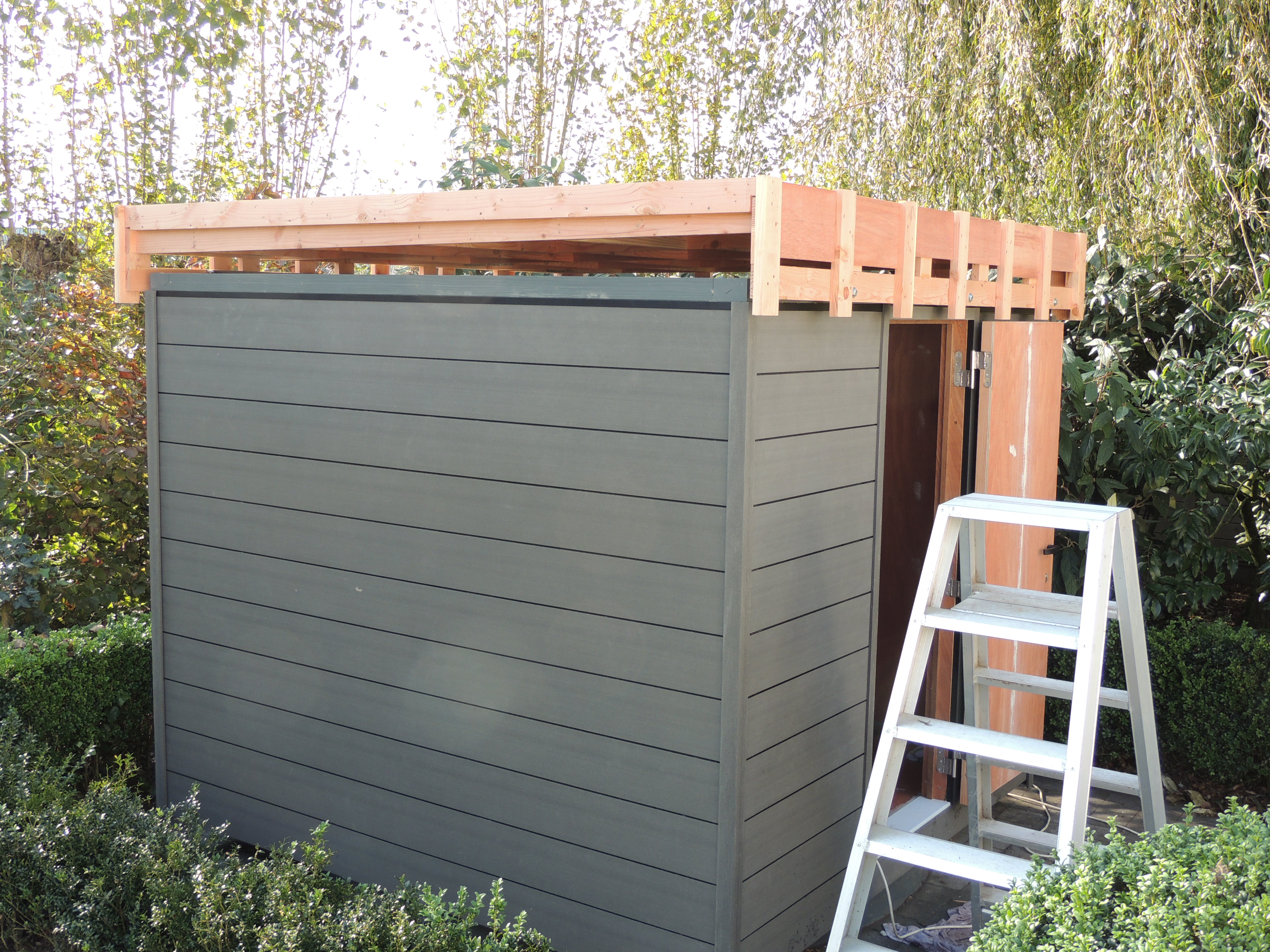

DSCN2499

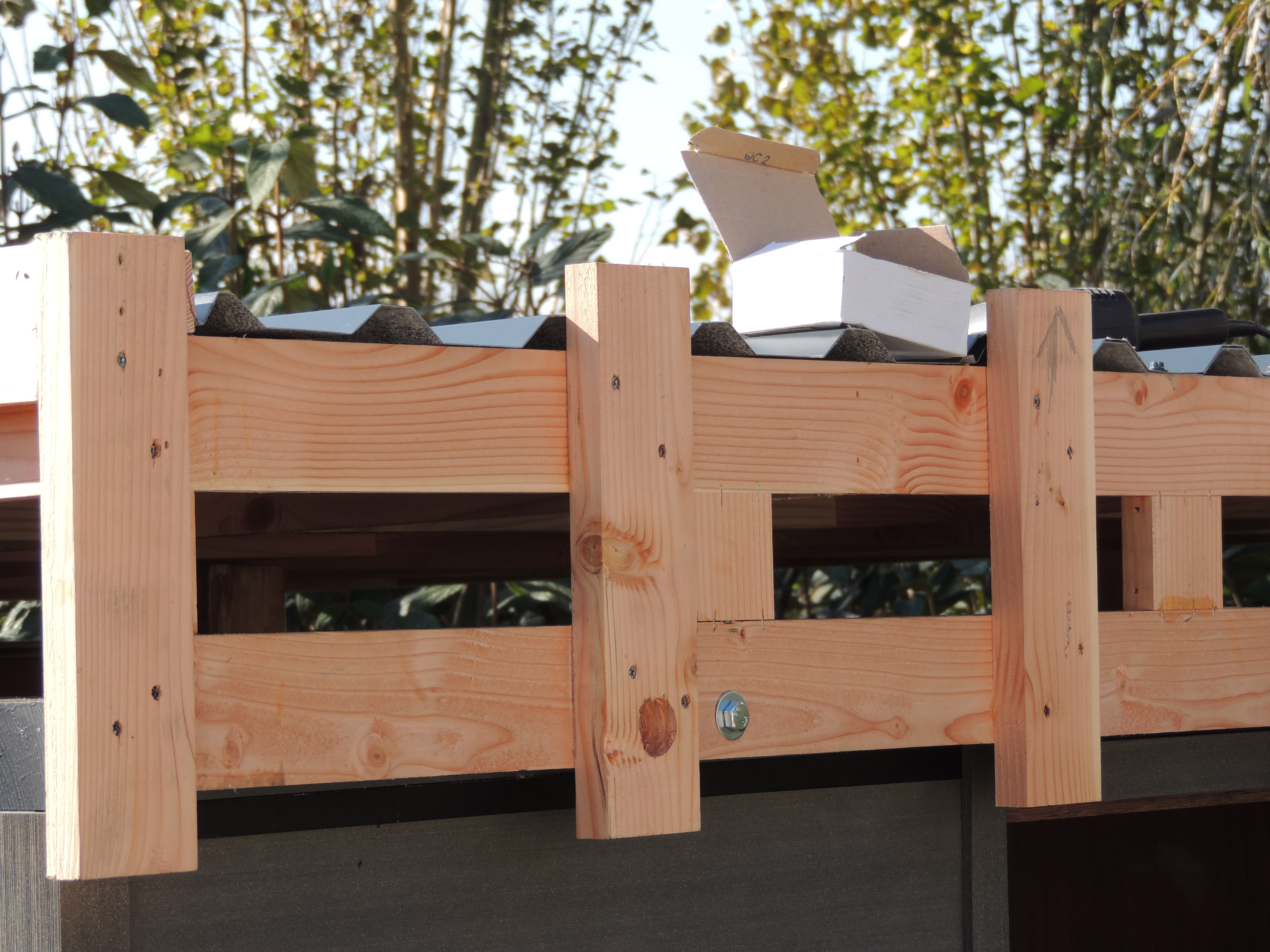

View on the metal galvanized roof plates with a limited height.
DSCN2500
Wood based panels along the sides in order to ensure a seal.
DSCN2501

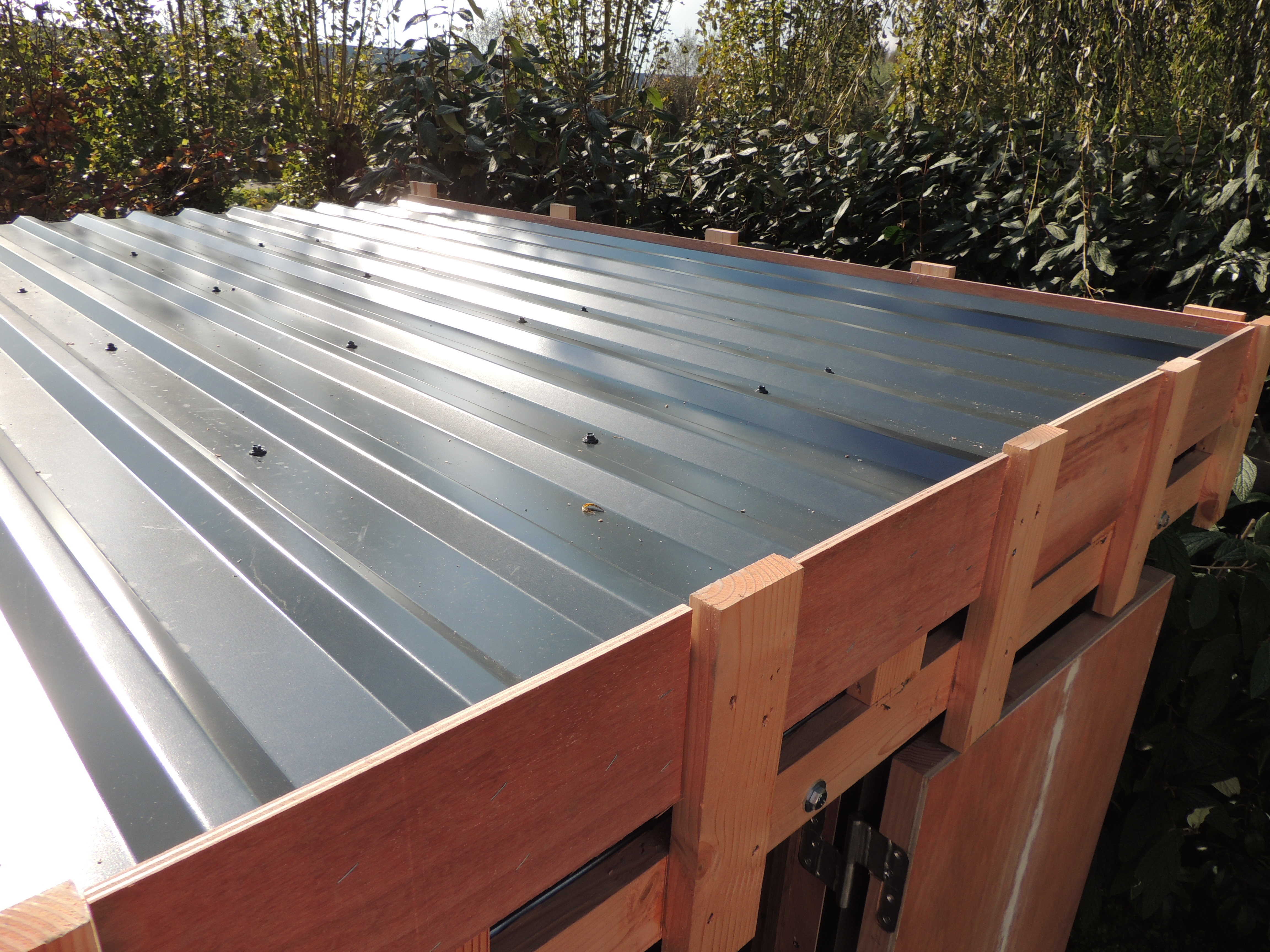

Roof plates with a lot of screws secured.

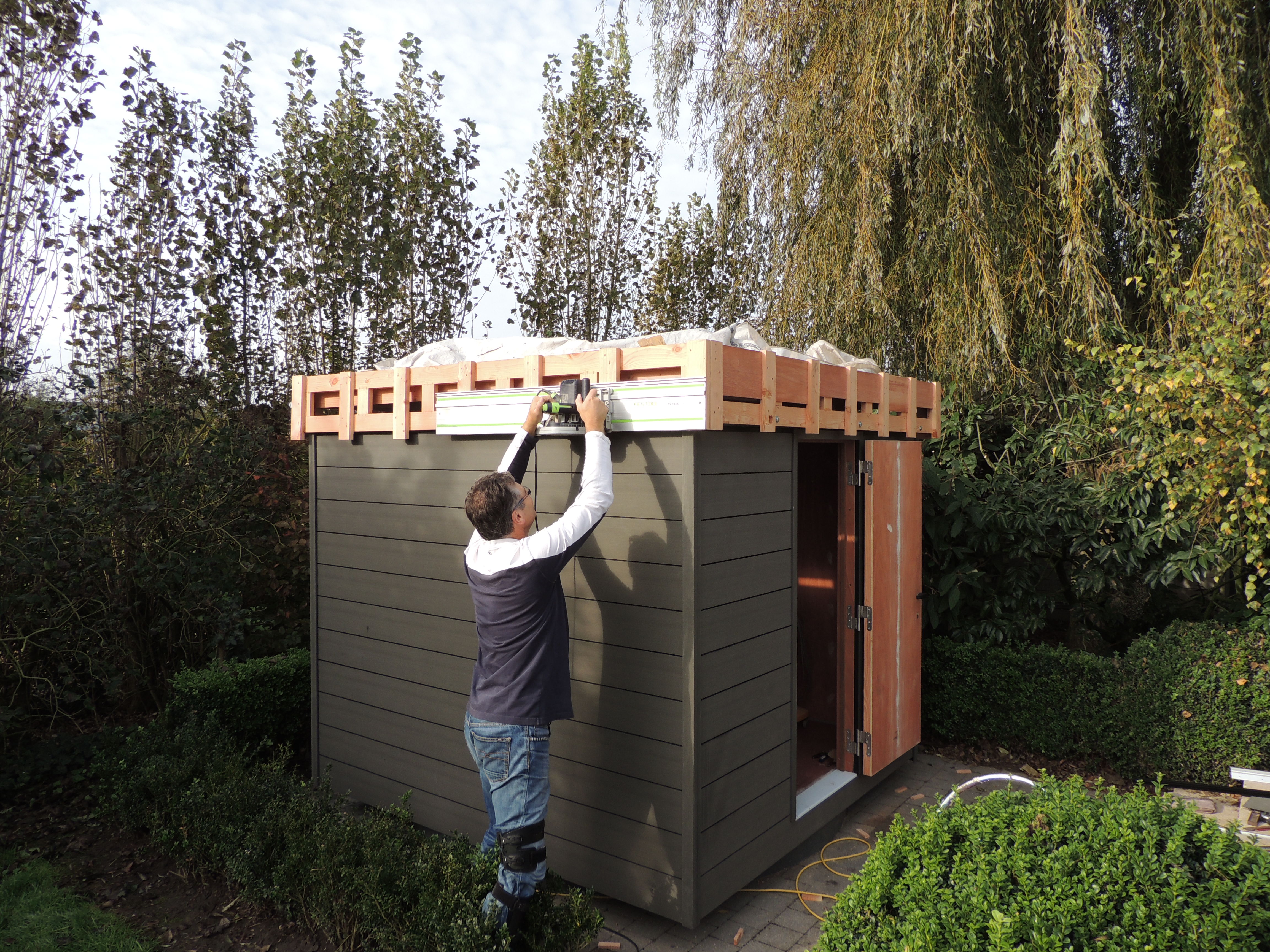

DSCN2504
Cutting to the size of the future covering.

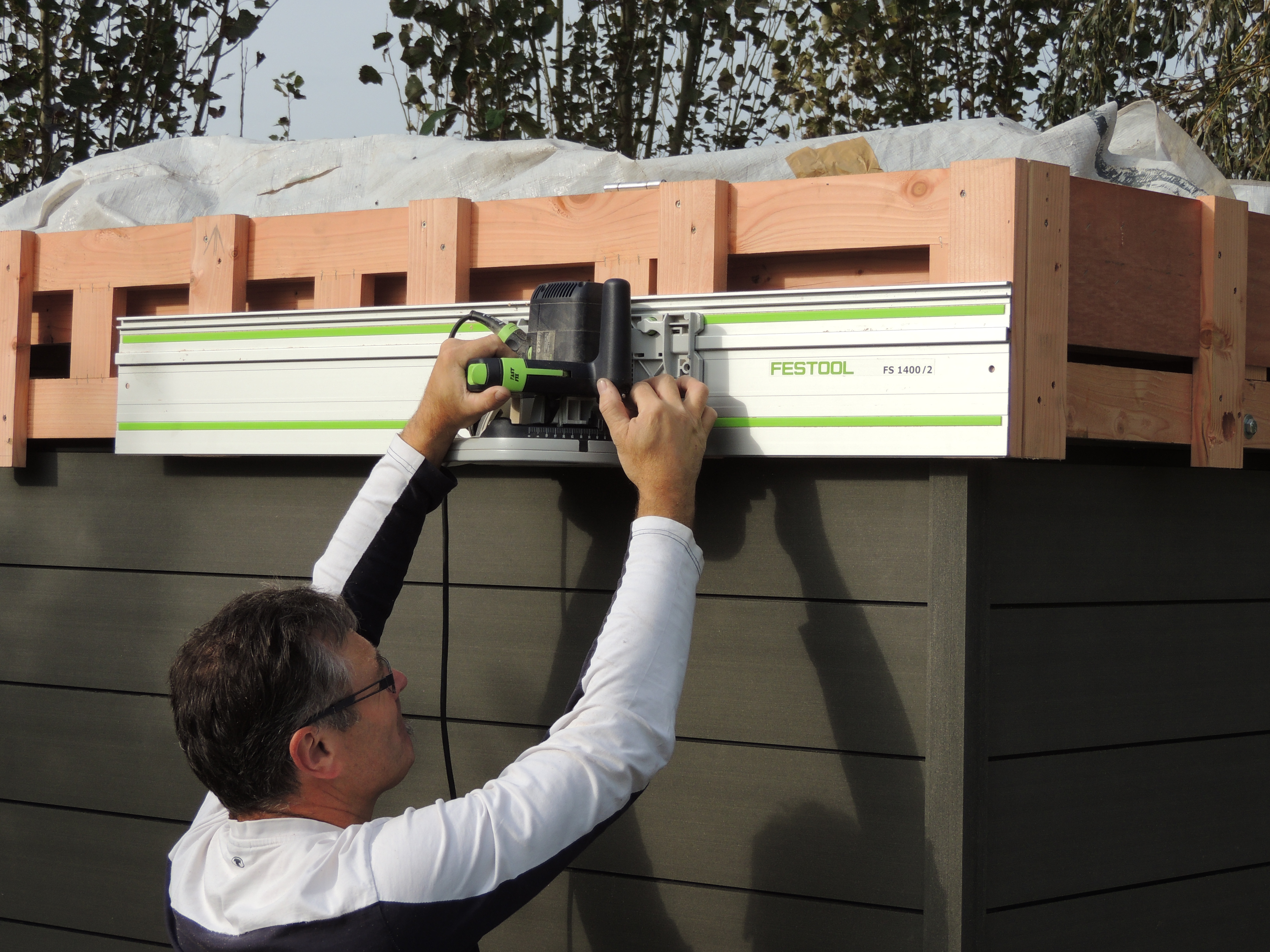

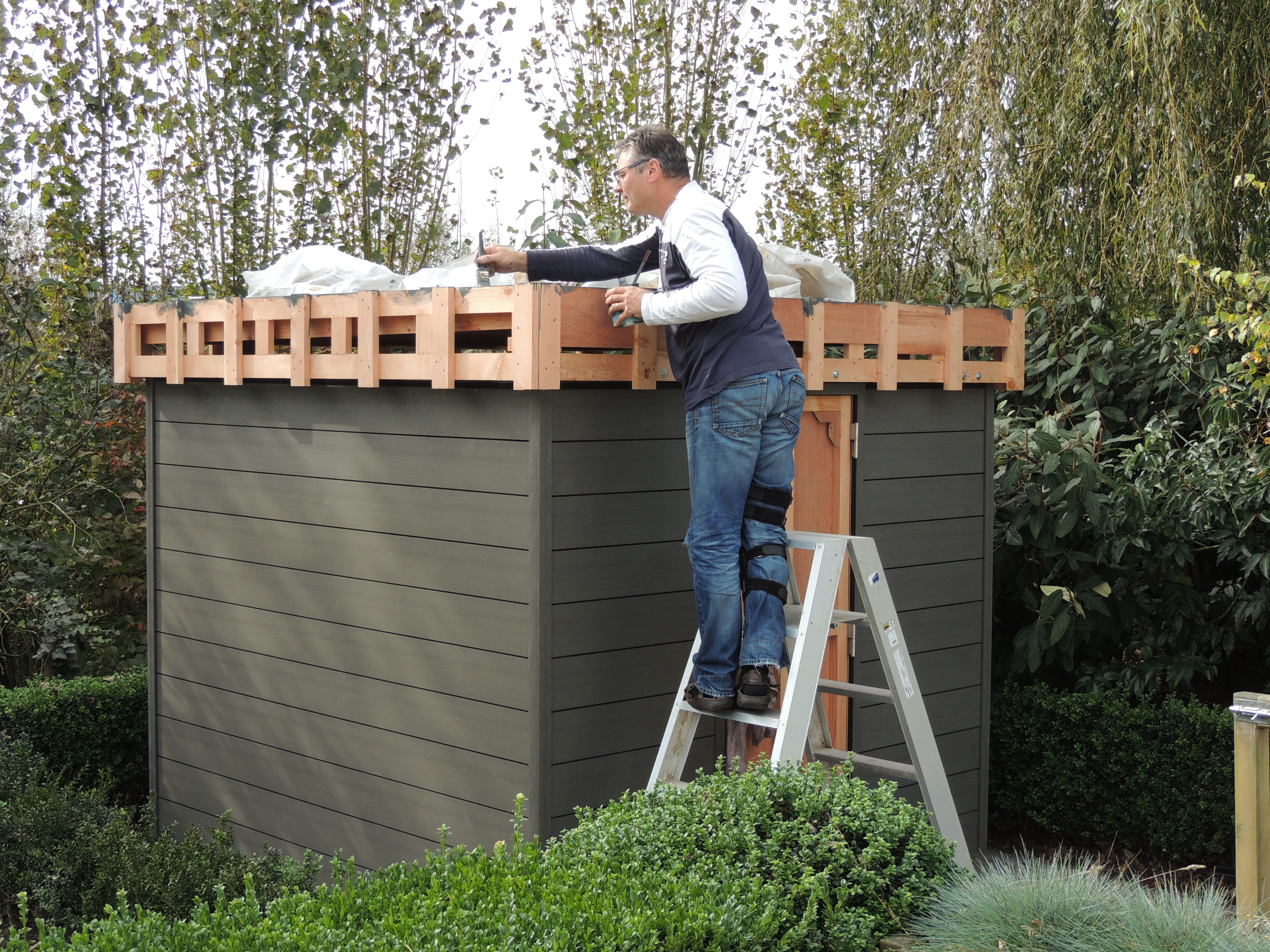

DSCN2505
Precise work with custom tools.

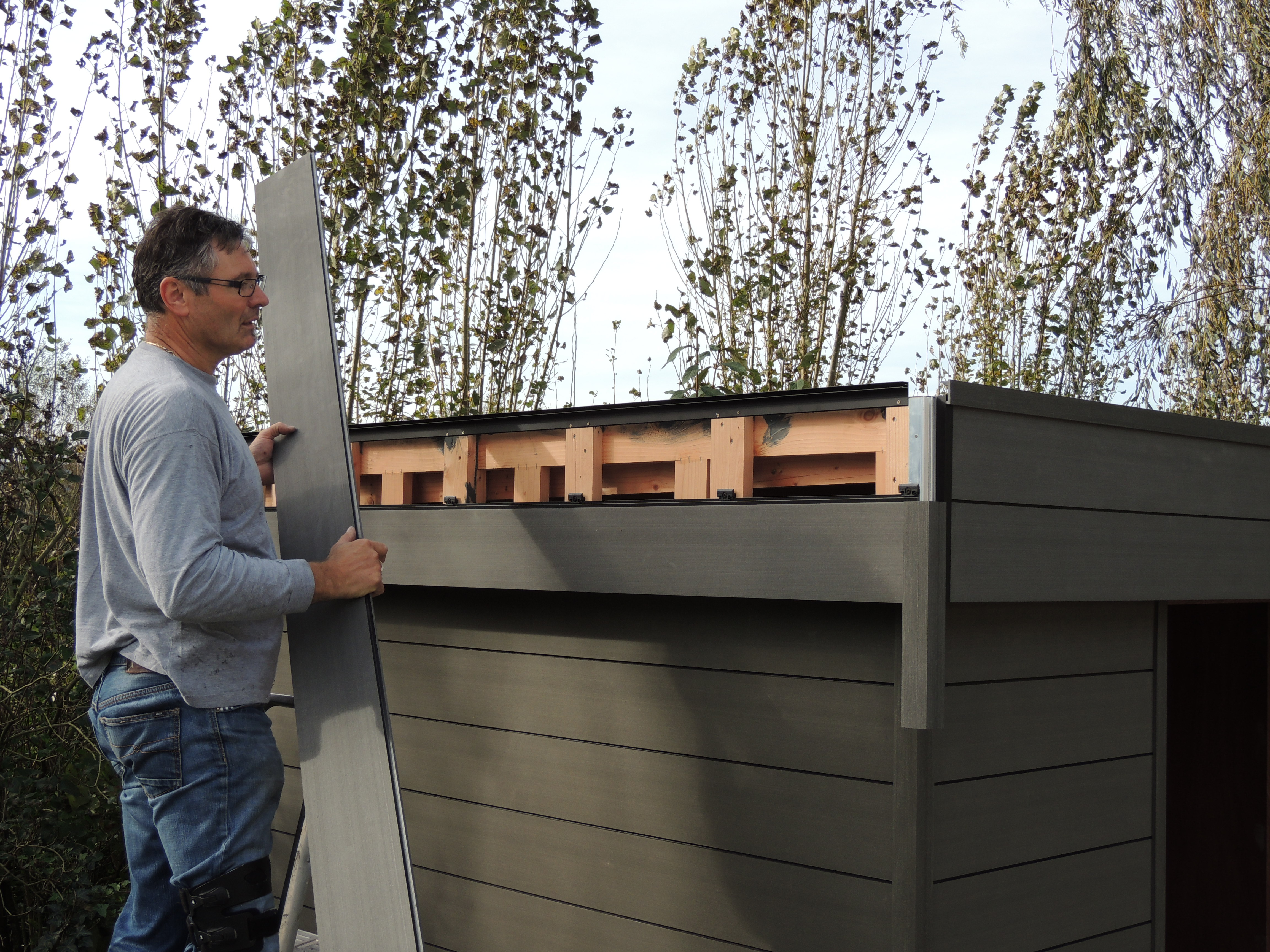

DSCN2506
Painting the wooden abutting surfaces in a matching color.
DSCN2507

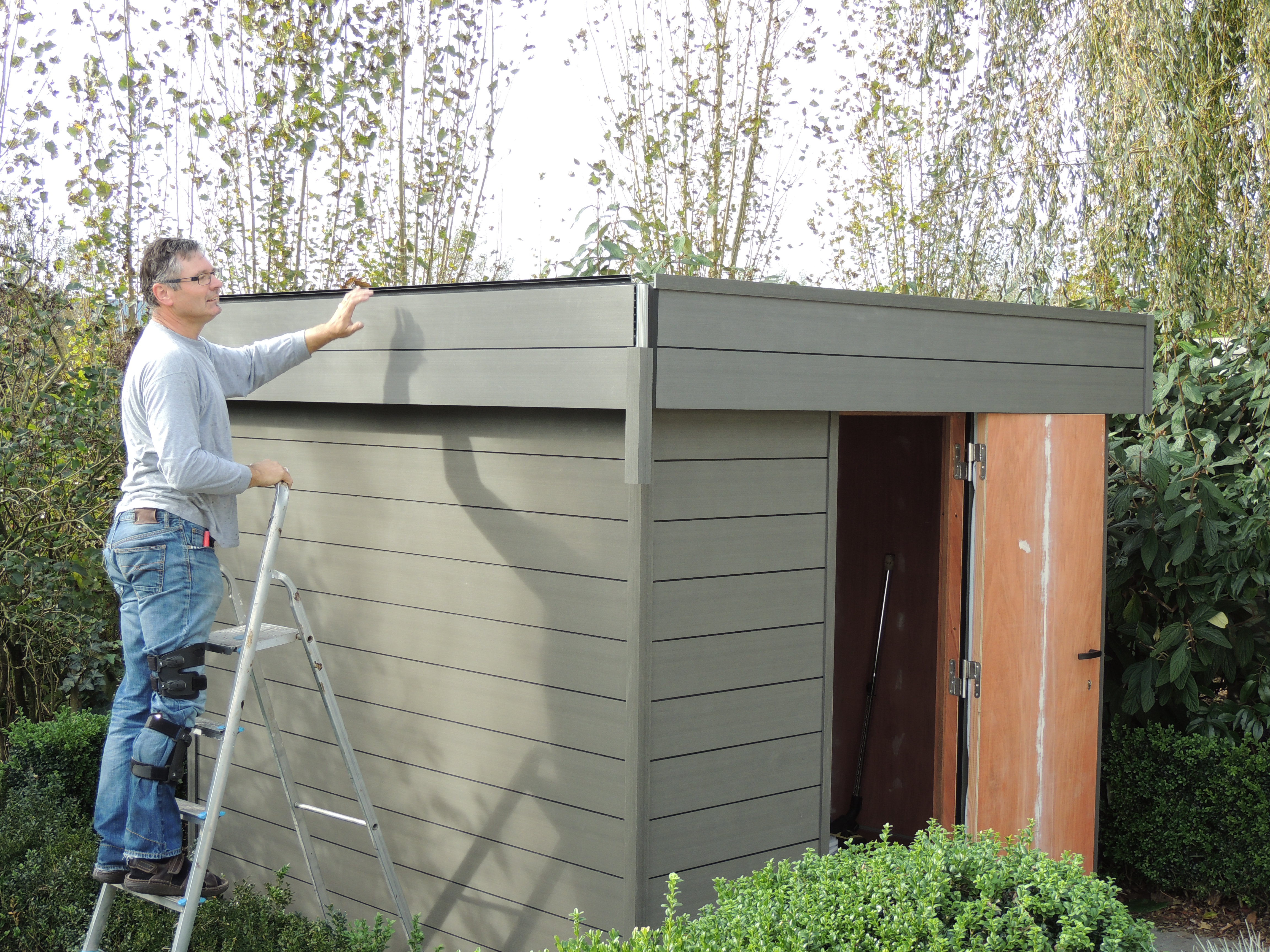

Further assembly of the roof sheeting.
DSCN2508
Fits neatly together.

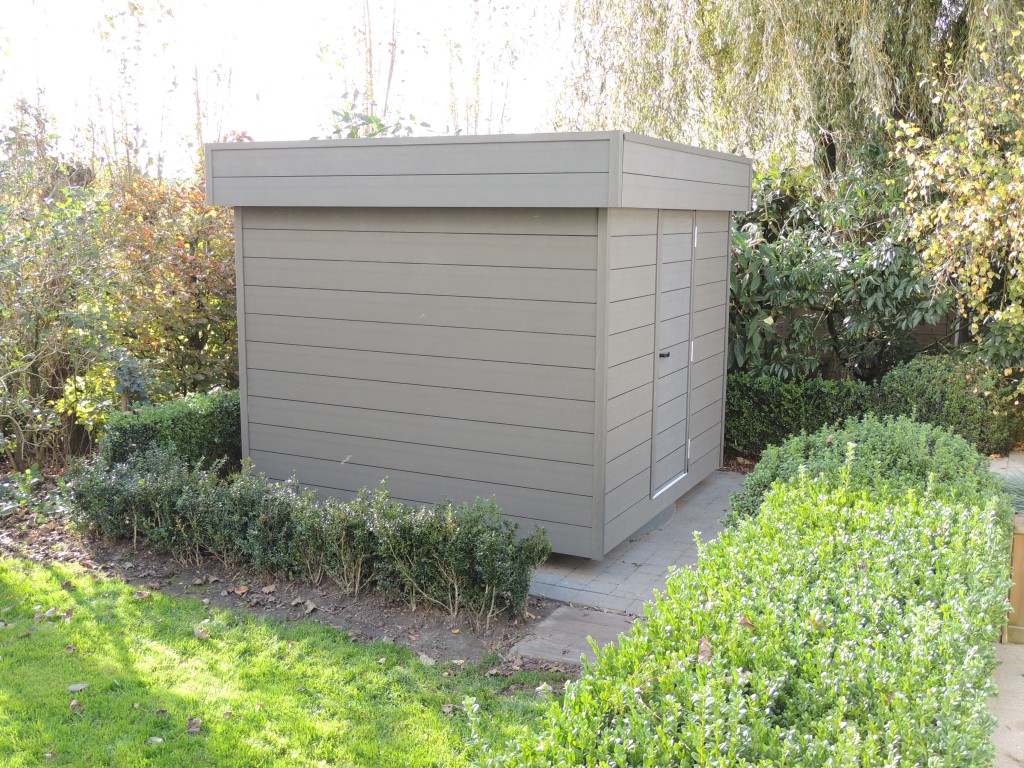

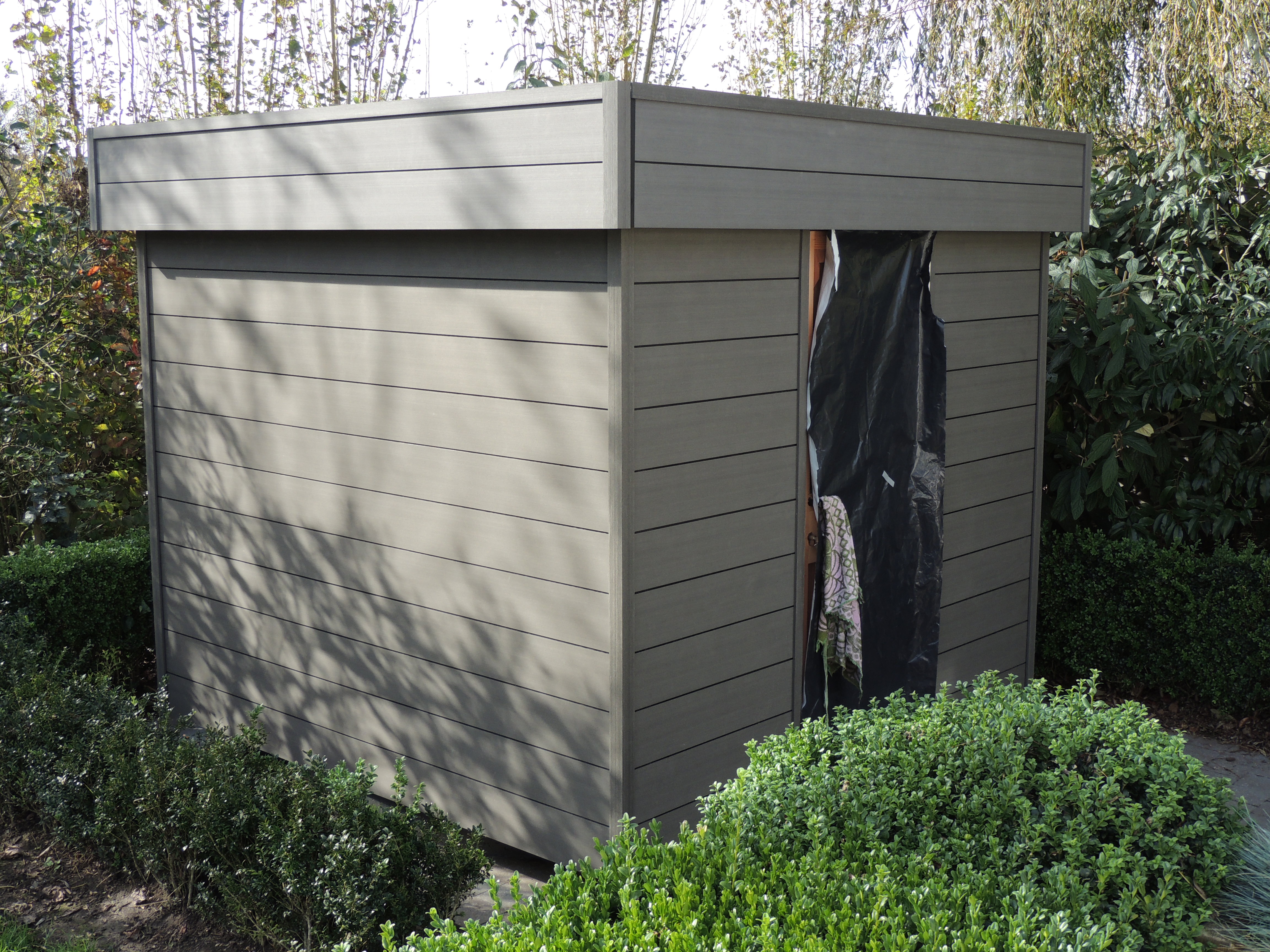

DSCN2512
Looks OK, now some work on the door.
DSCN2515
Exteriors are now completely waterproof.
DSCN2516

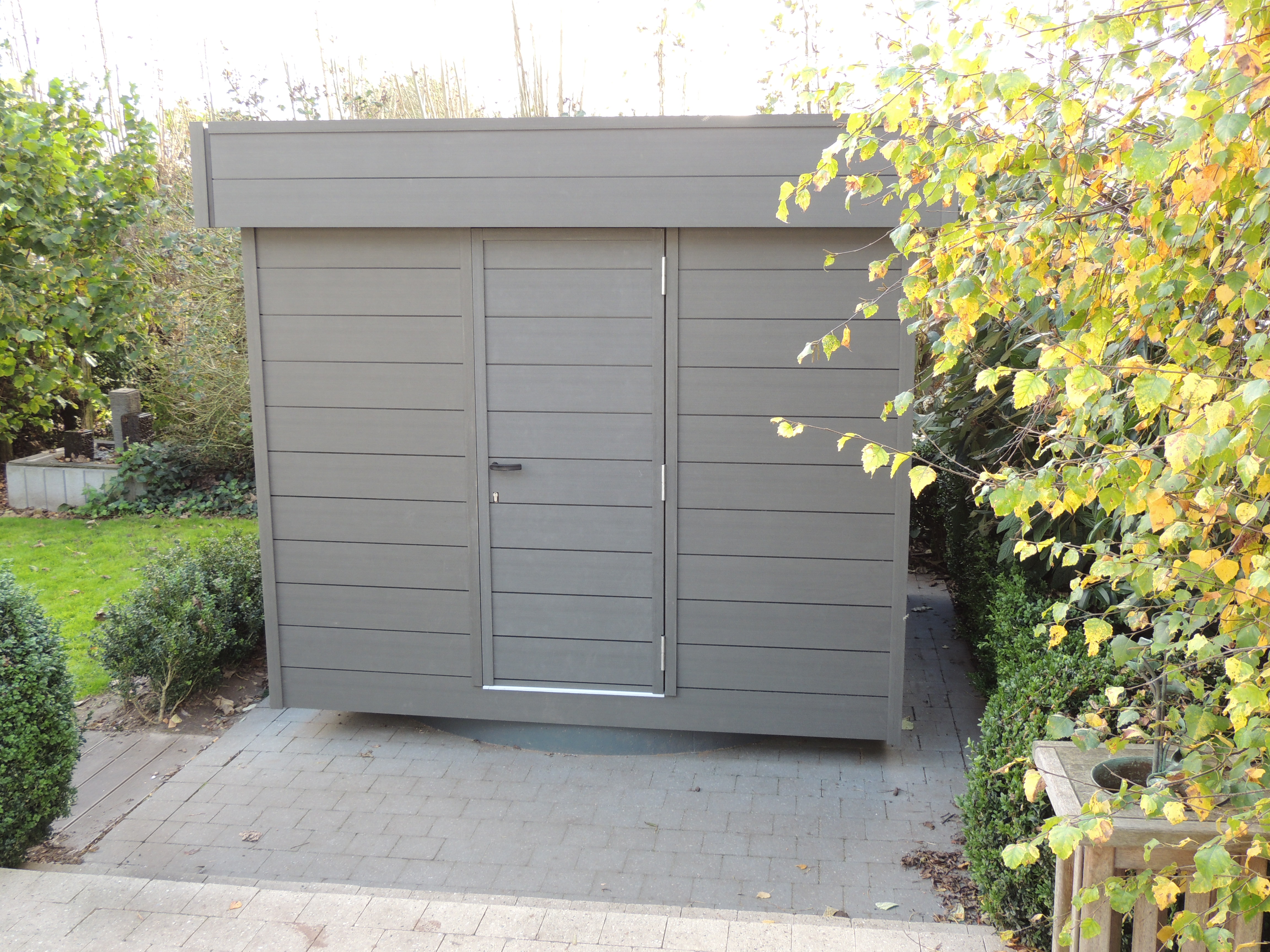

Outside fully finished and floating above the ground.
DSCN2517

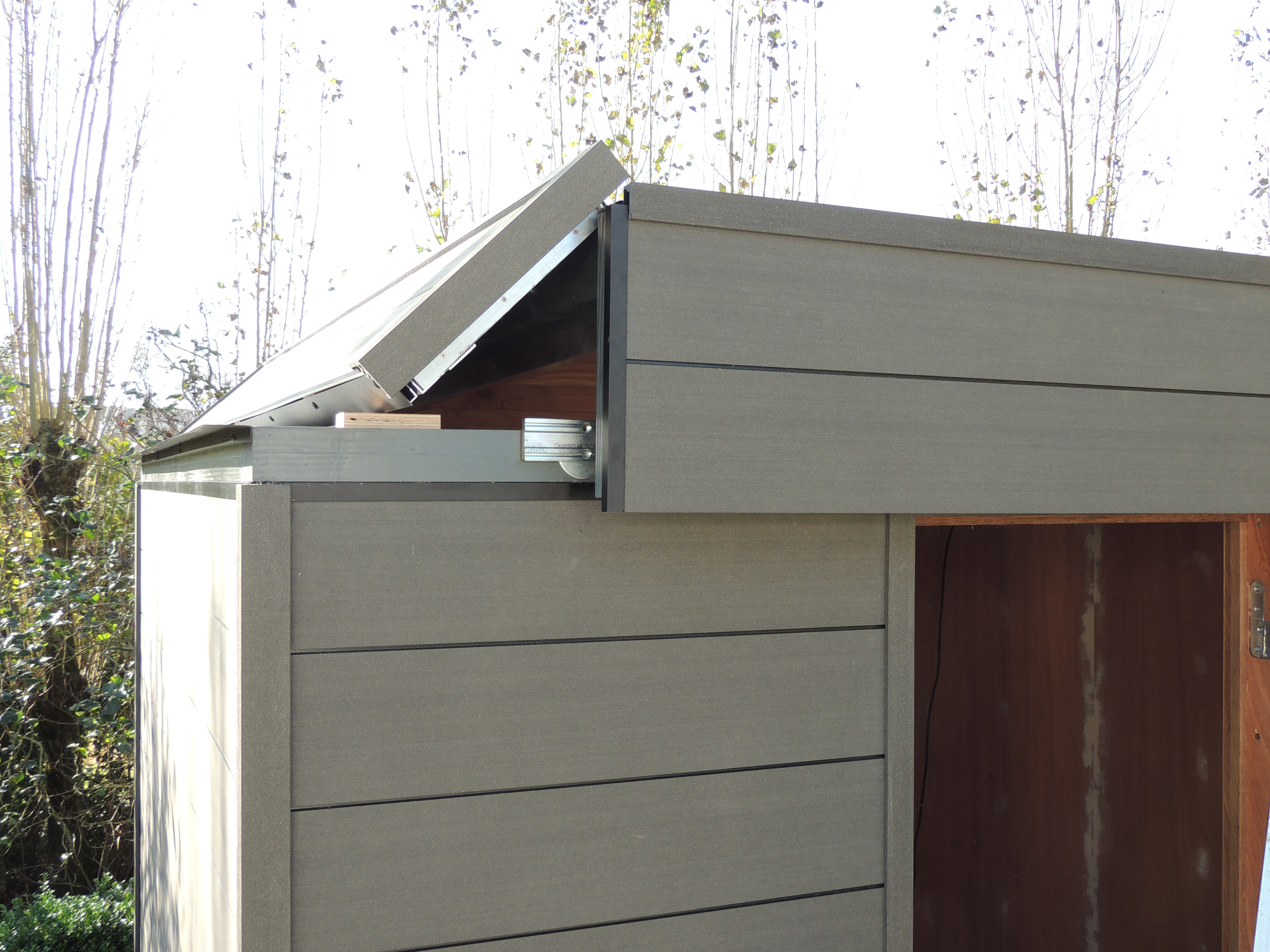

Still partly opened sidewall, with supporting “for the time being” wooden blocks.
DSCN2518

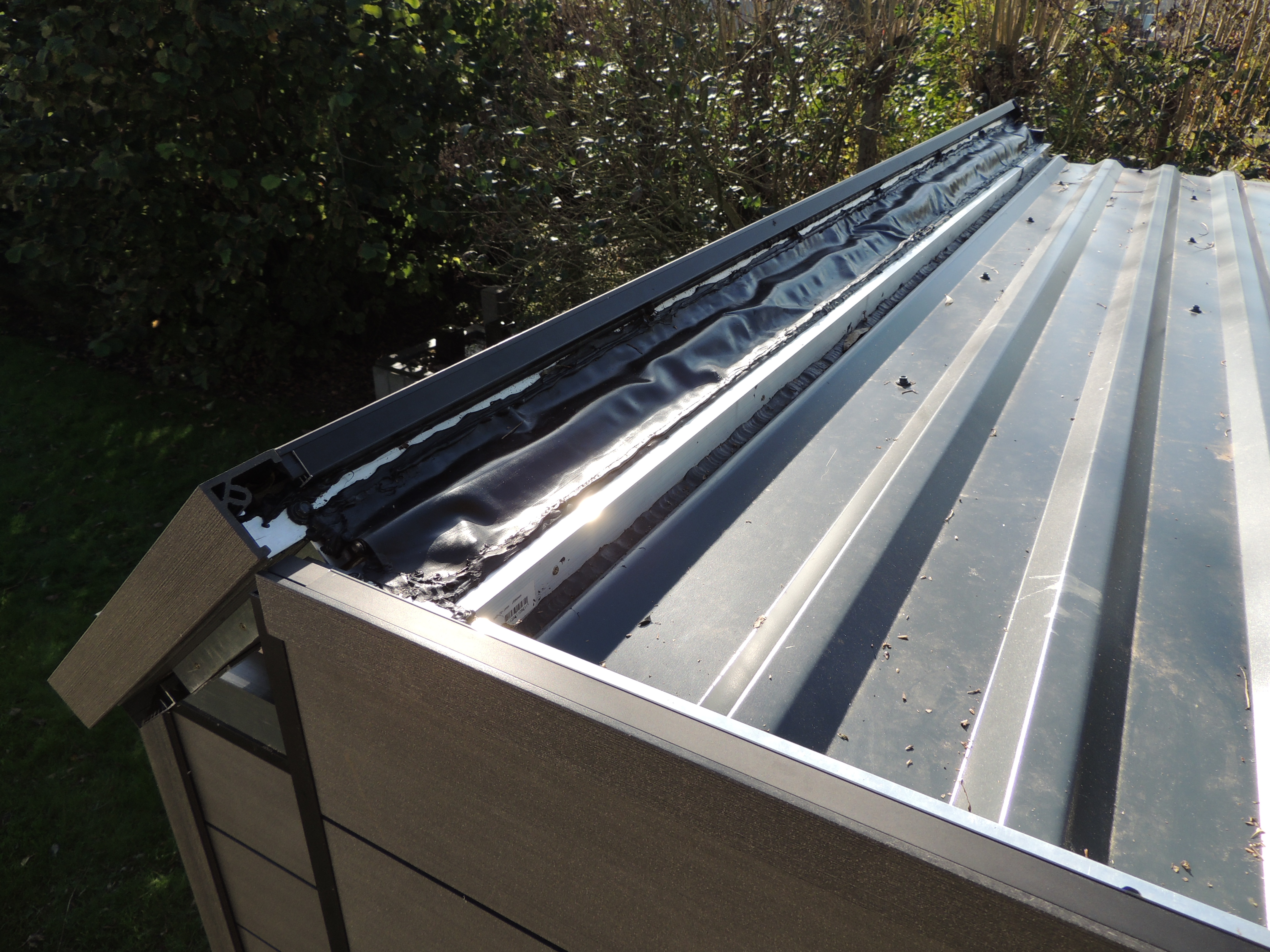

Finished roof with “EPDM” above the hinge.
DSCN2519

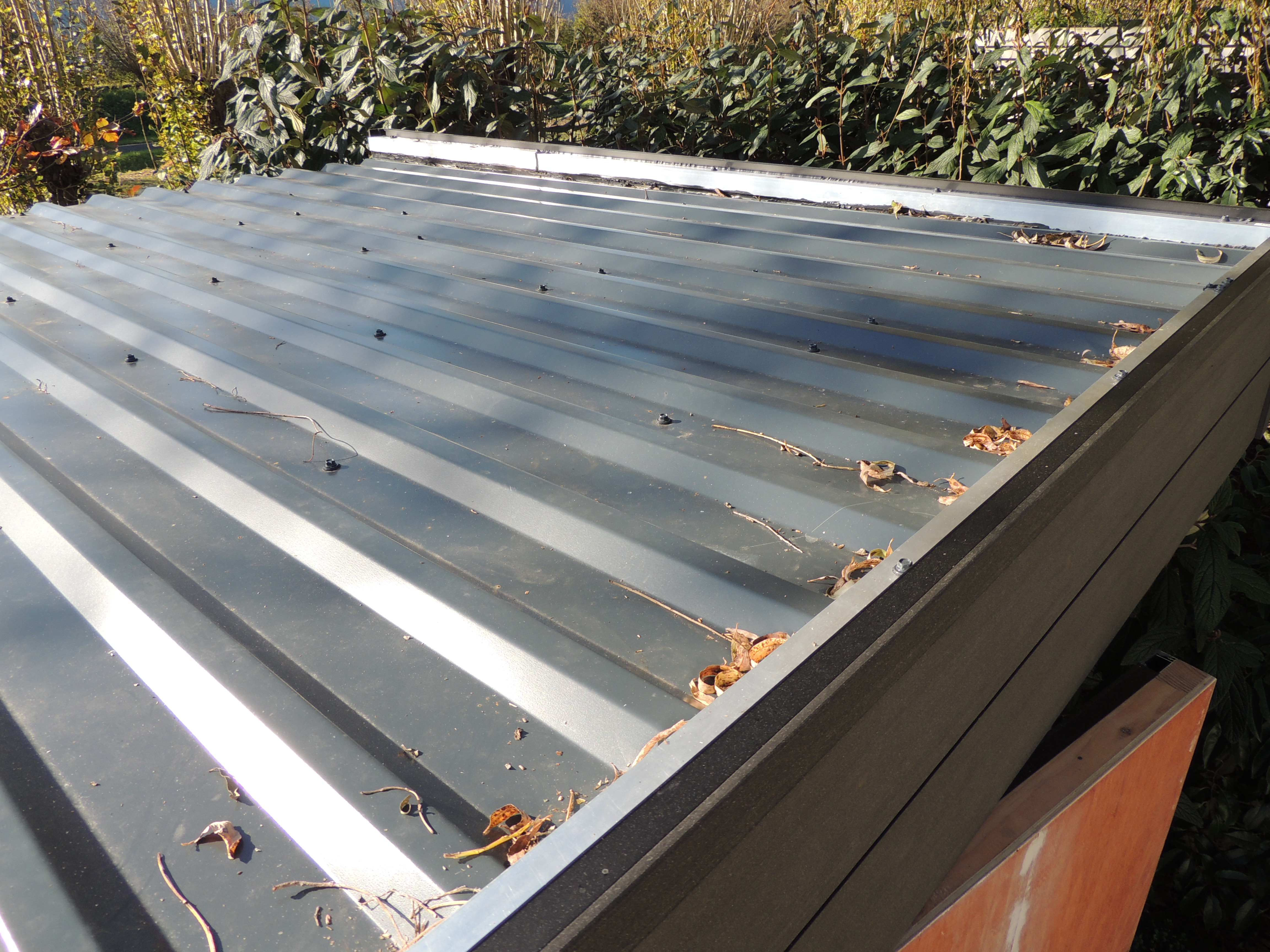

Seams with black seal kit finished.
DSCN2520

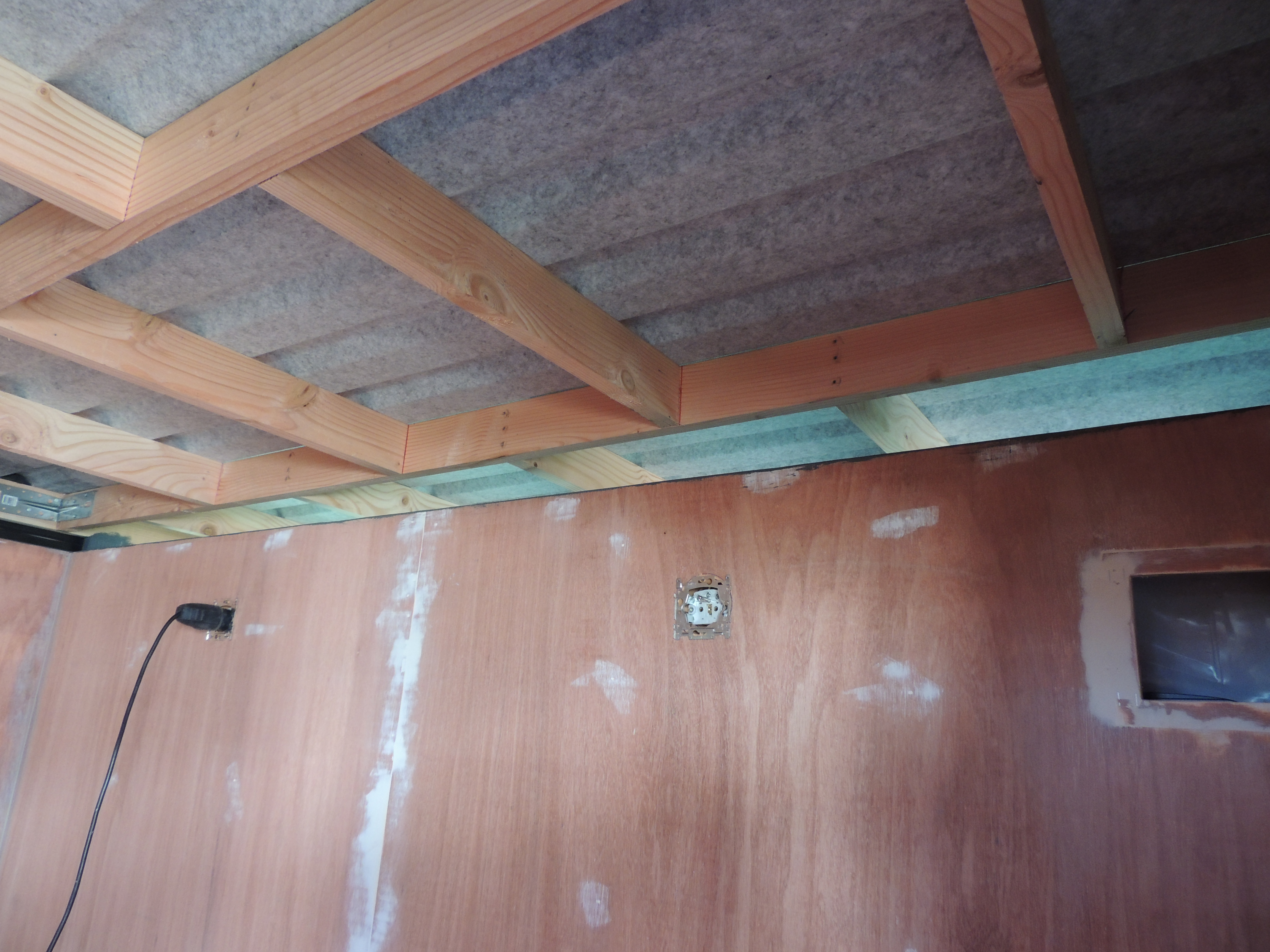

Bottom view of the roof plates, “anti condensation” and multilayered.
DSCN2522

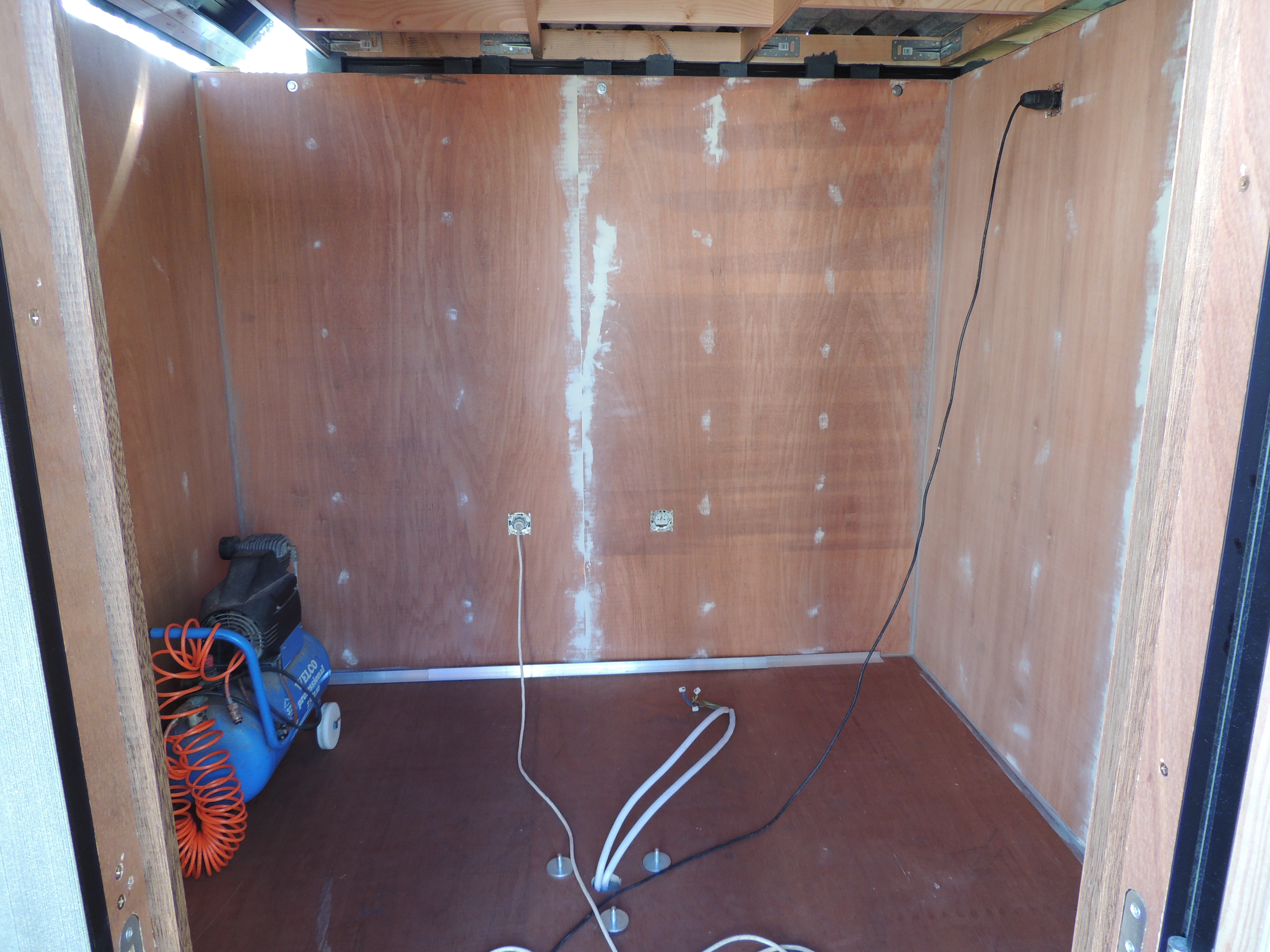

Inside, still a lot of work to do.

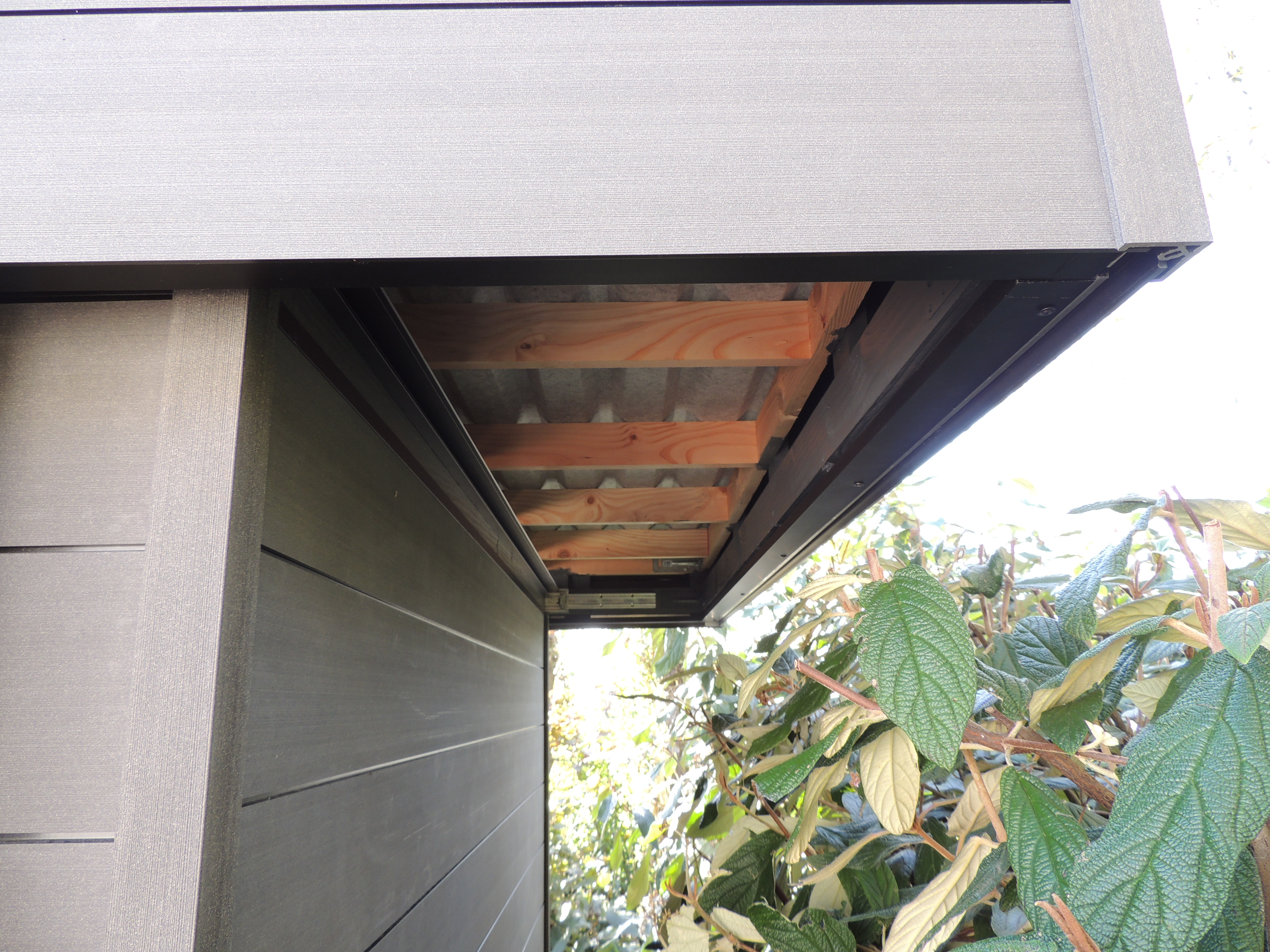

DSCN2523
Bottom of the “open” part of a sliding roof with the still visible wood structure.

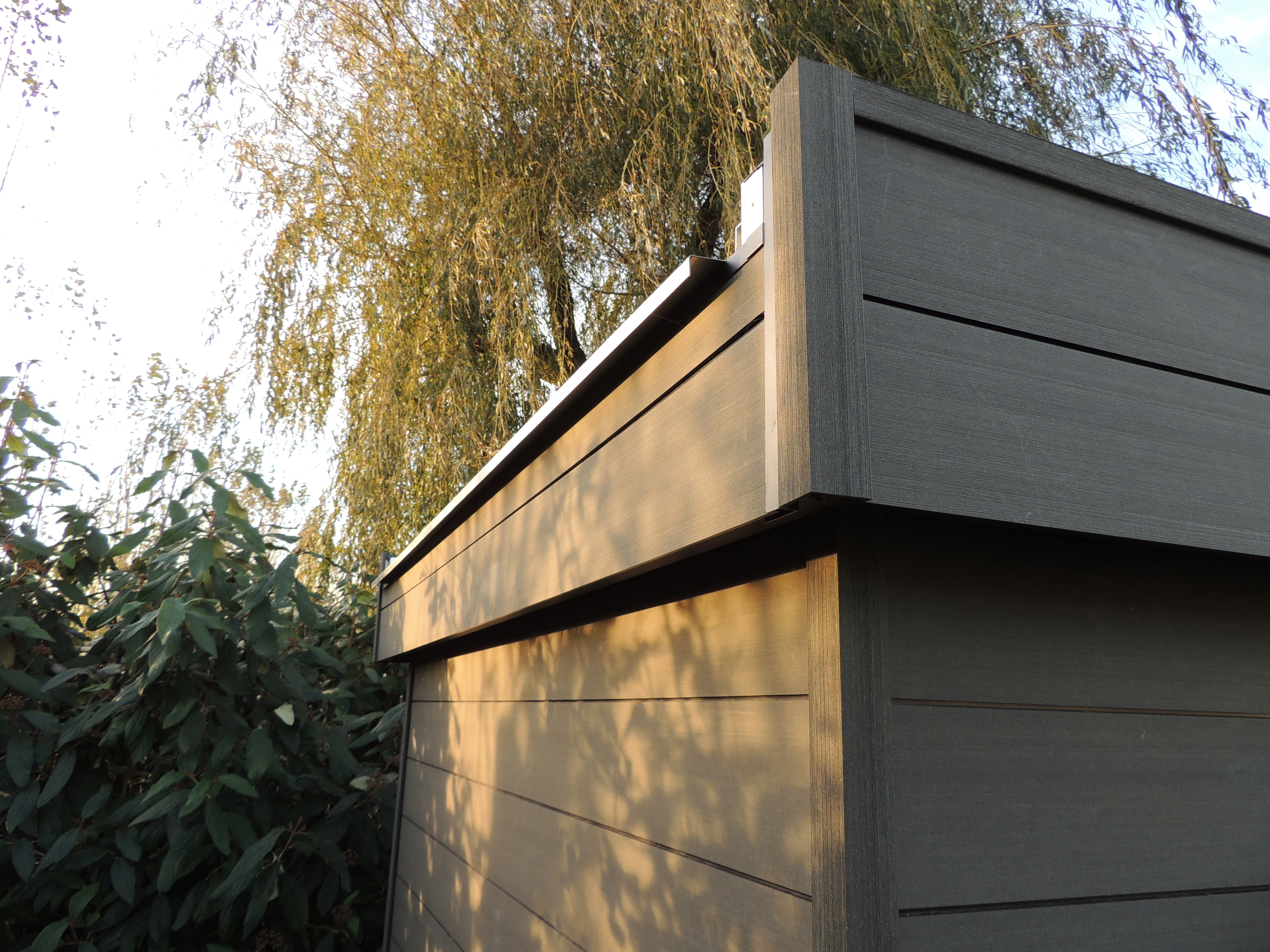

DSCN2524
Back of the roof with L – profile as a water overflow.
DSCN2525

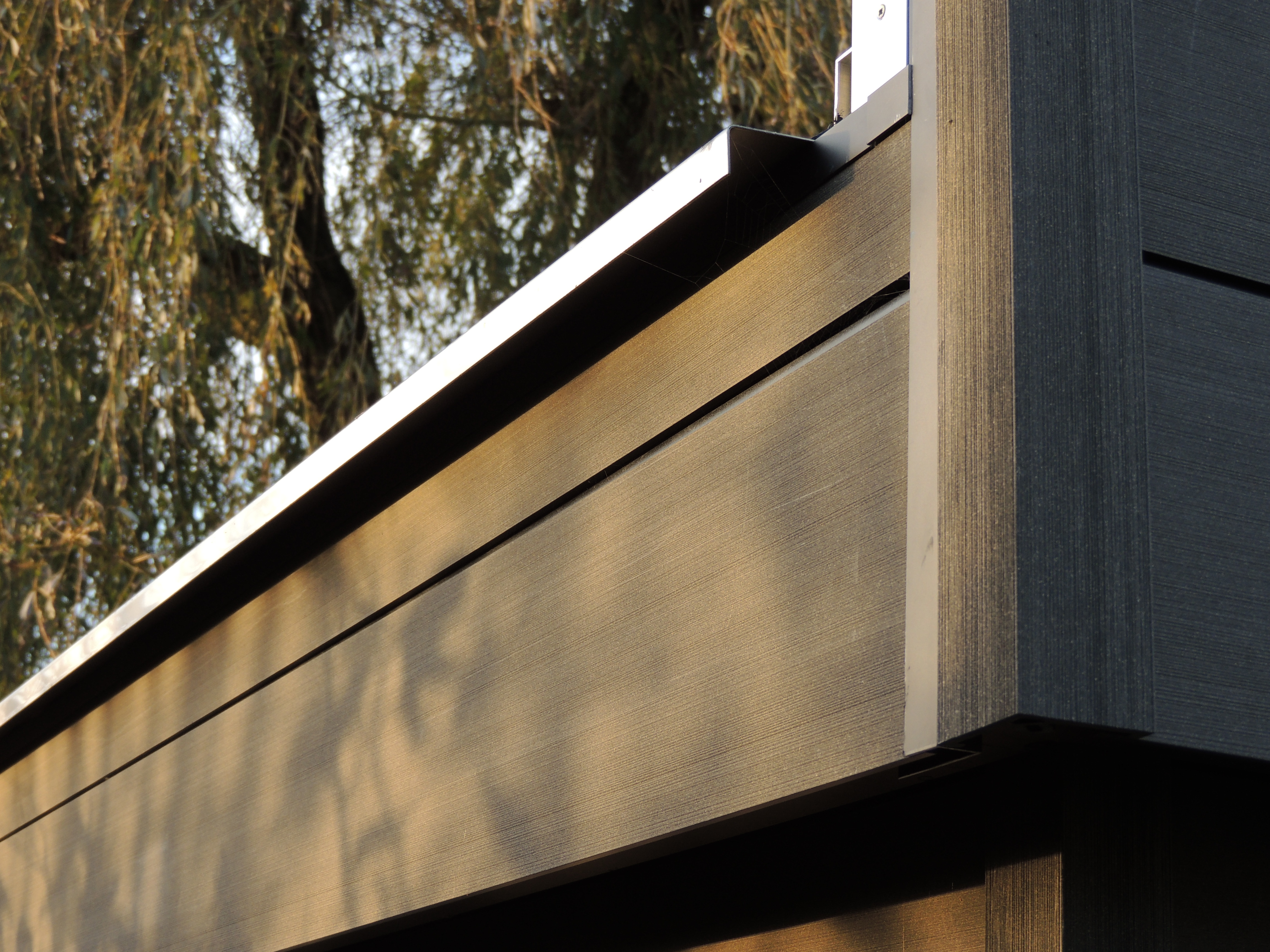

Even closer, finished with stainless steel and aluminium profiles.

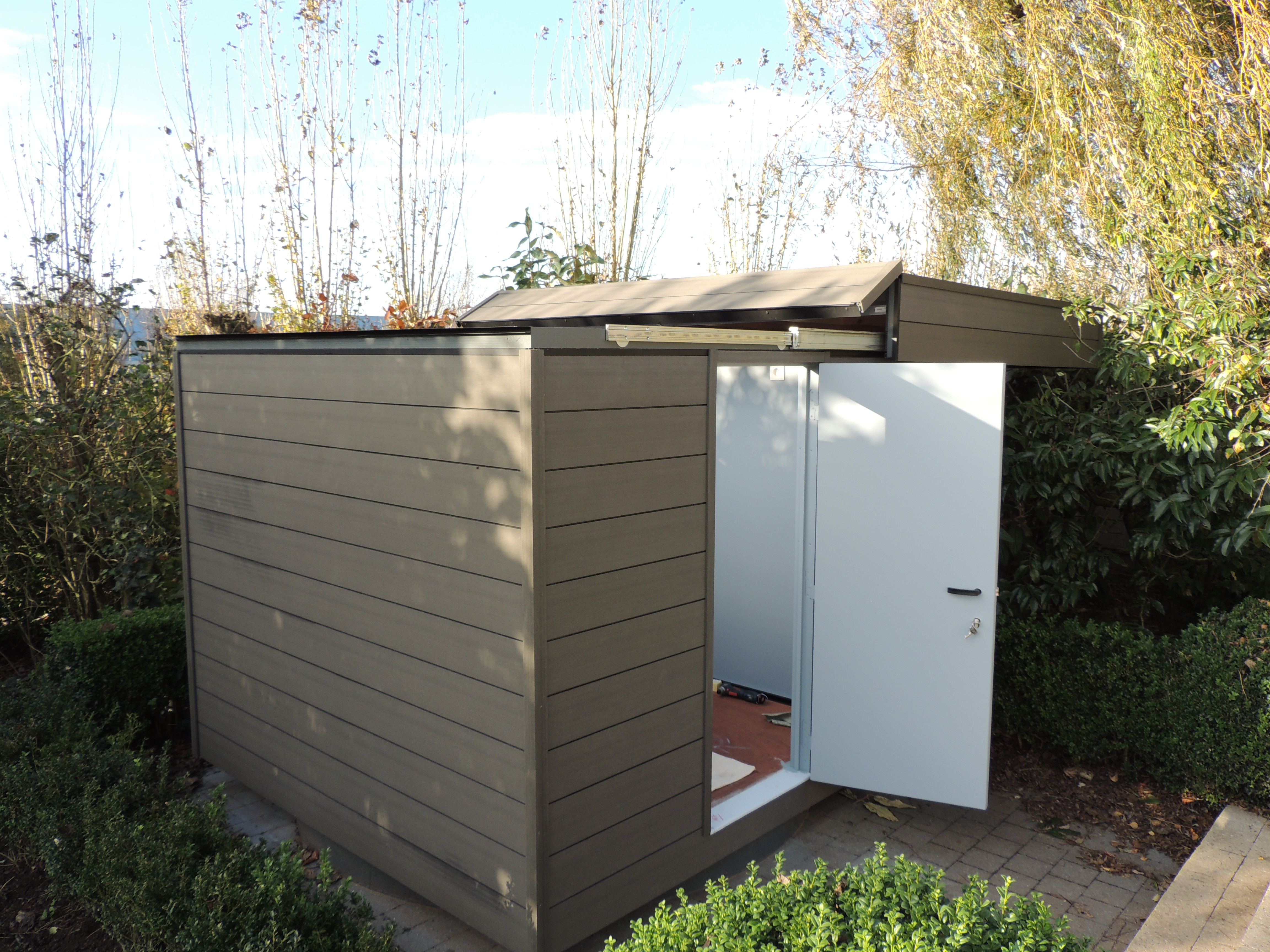

DSCN2528

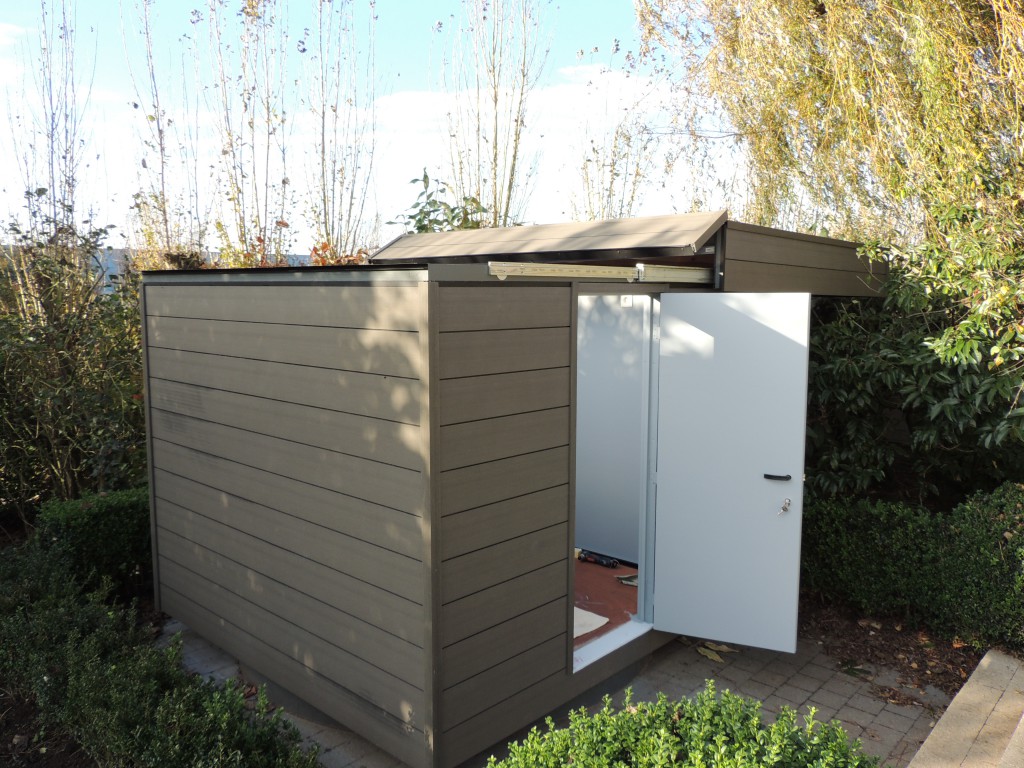

Open roof whose interior is painted with a matt water based washable paint.
DSCN2529

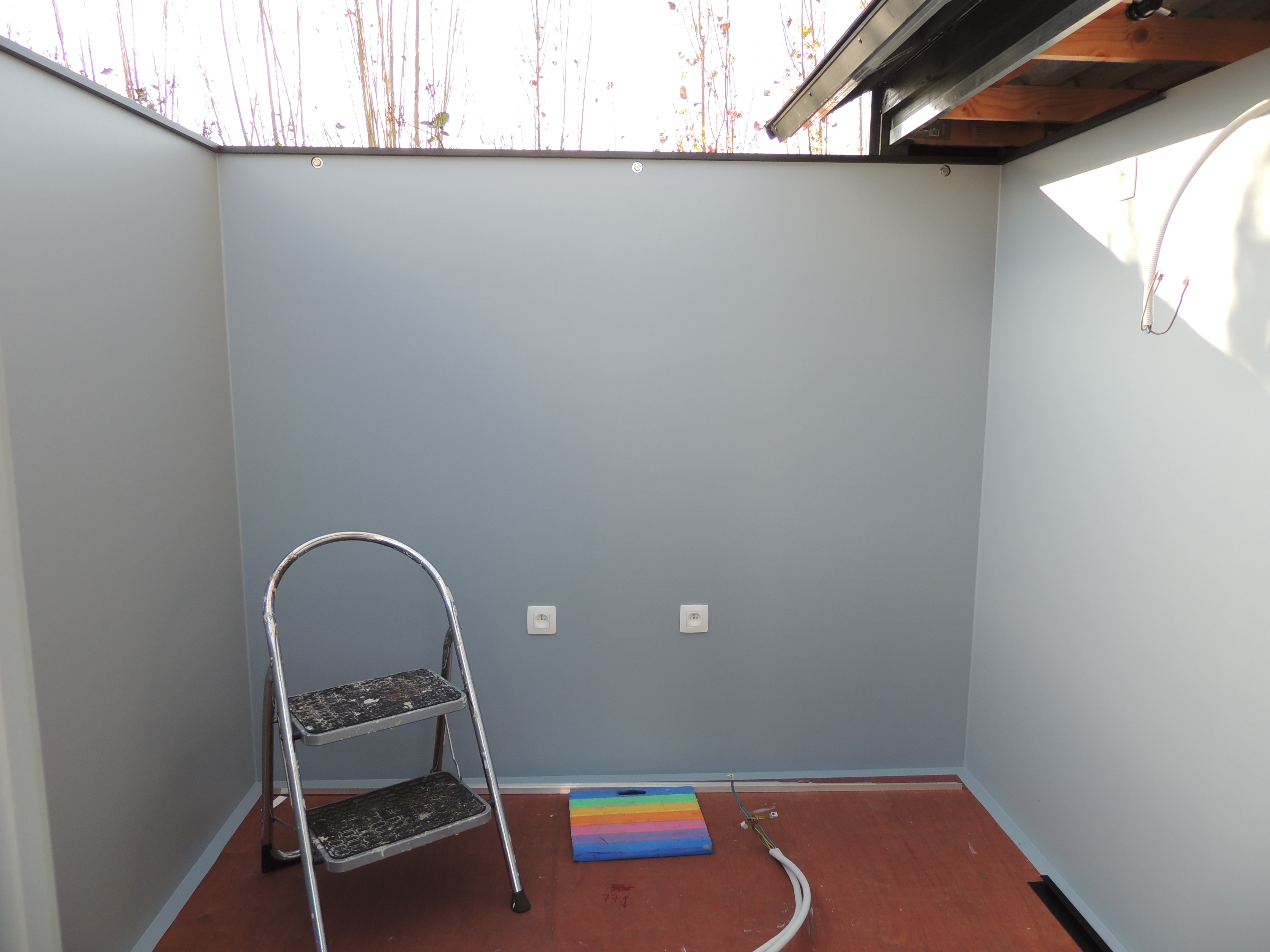

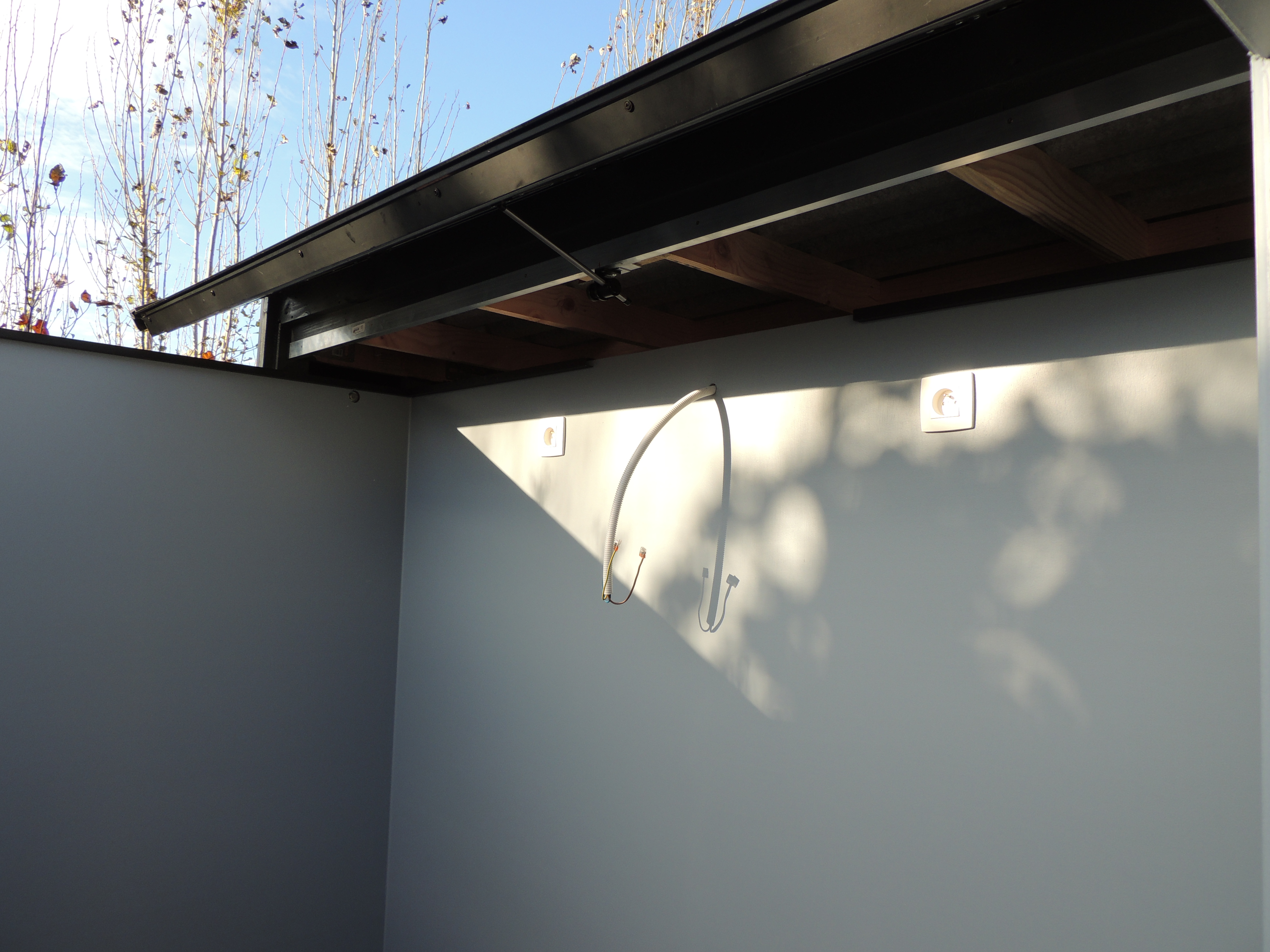

Temporary support for the opened side wall in anticipation of the ordered “gas springs”.
DSCN2530
Black aluminium profiles as a finishing edge at the top of the inside wall.
DSCN2532

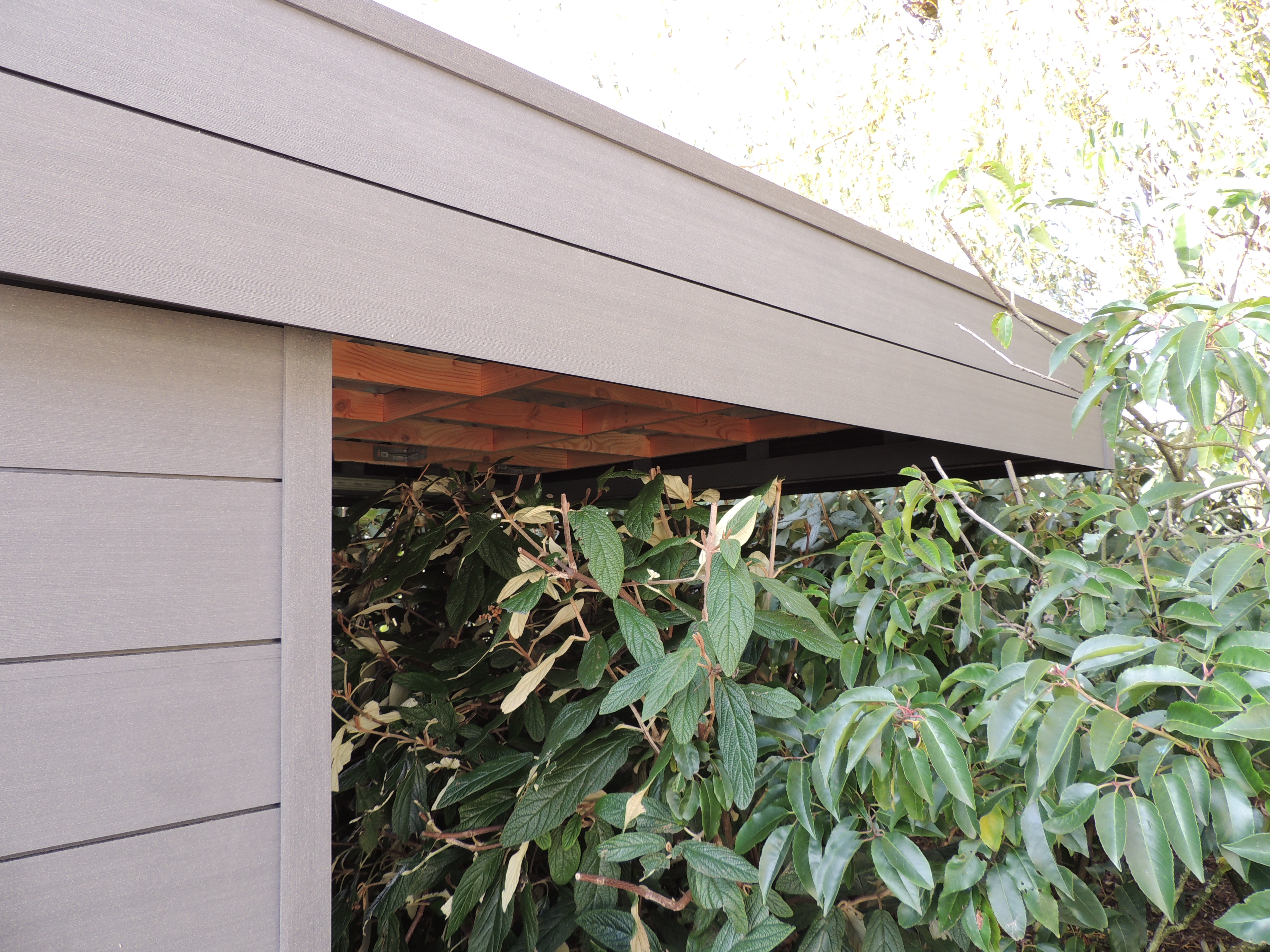

Bottom of “open fully roll off roof” without additional support between the green plants.
DSCN2533

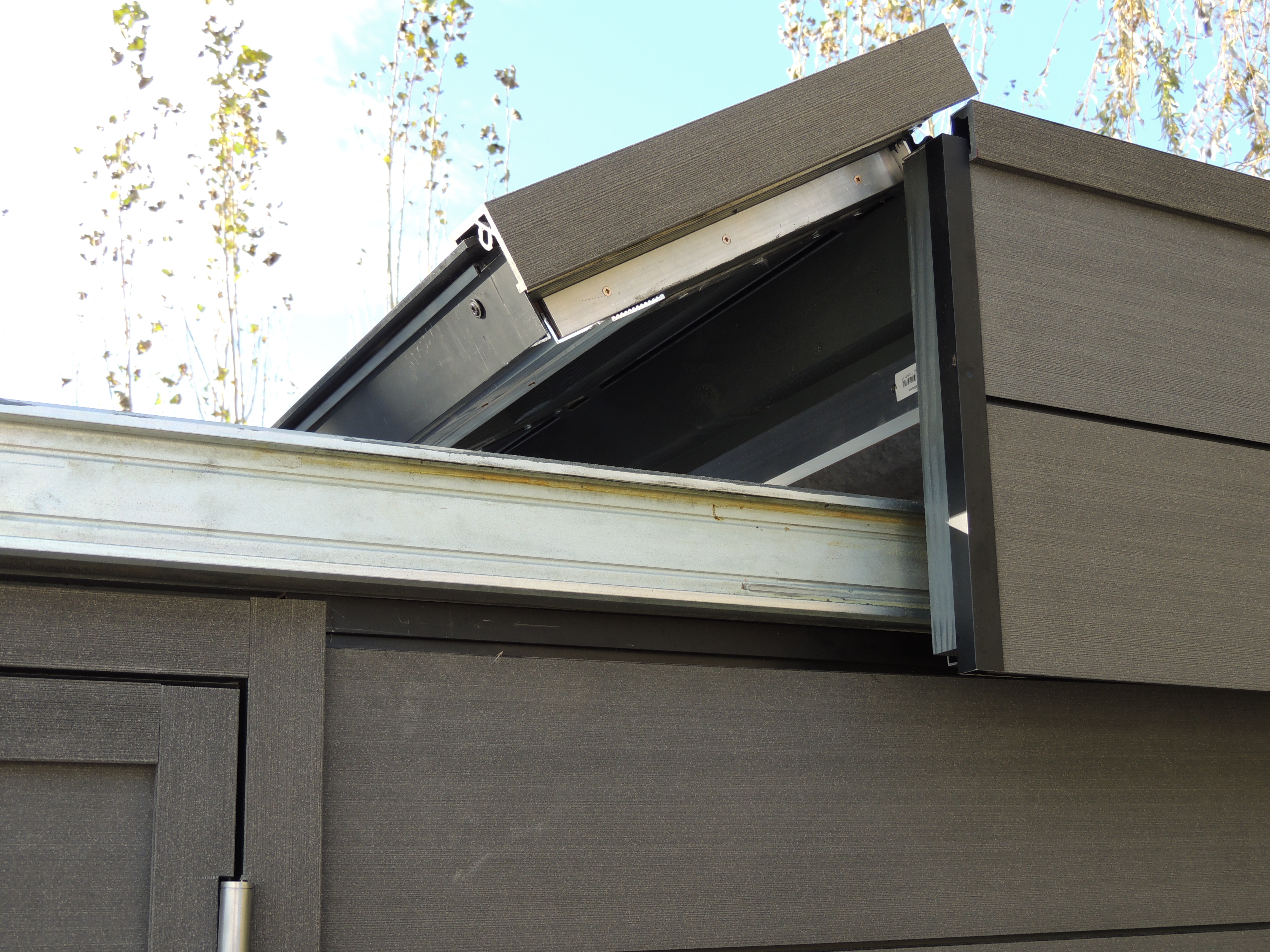

Foldable side wall finished with aluminium.

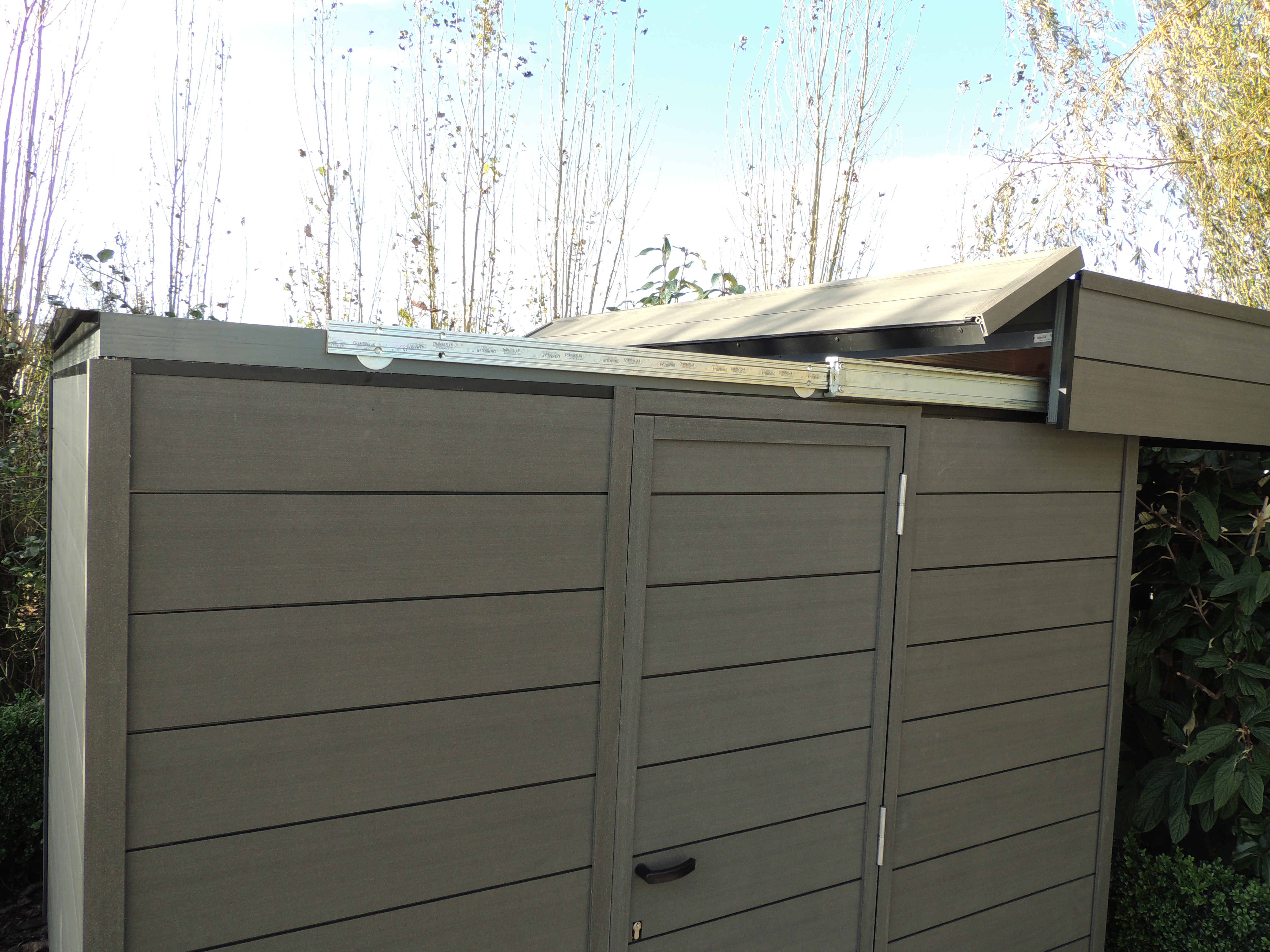

DSCN2534
Heavy telescopic slide in front are doing their job in collaboration with …
DSCN2535

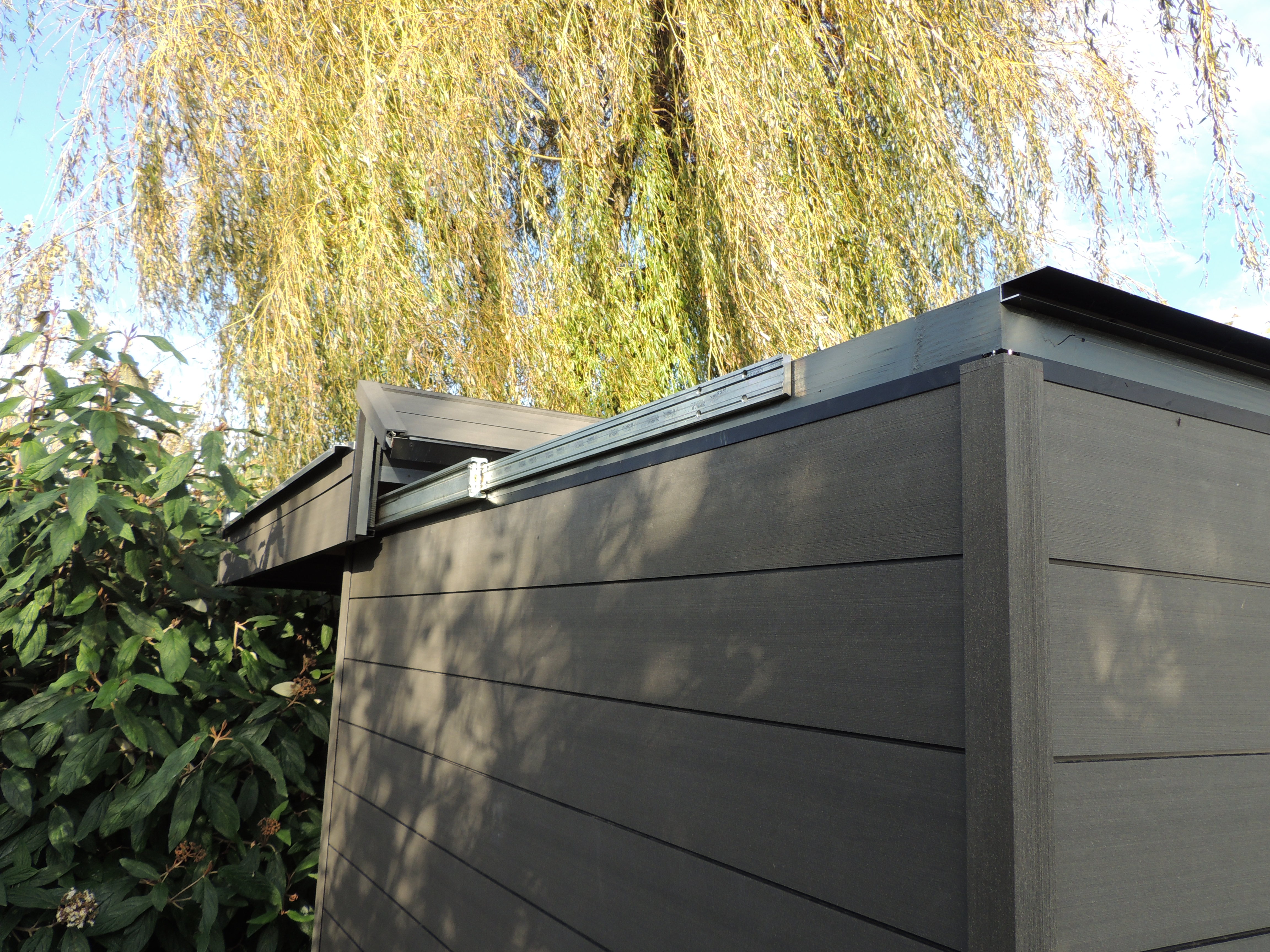

… the heavy telescopic slide to the back.

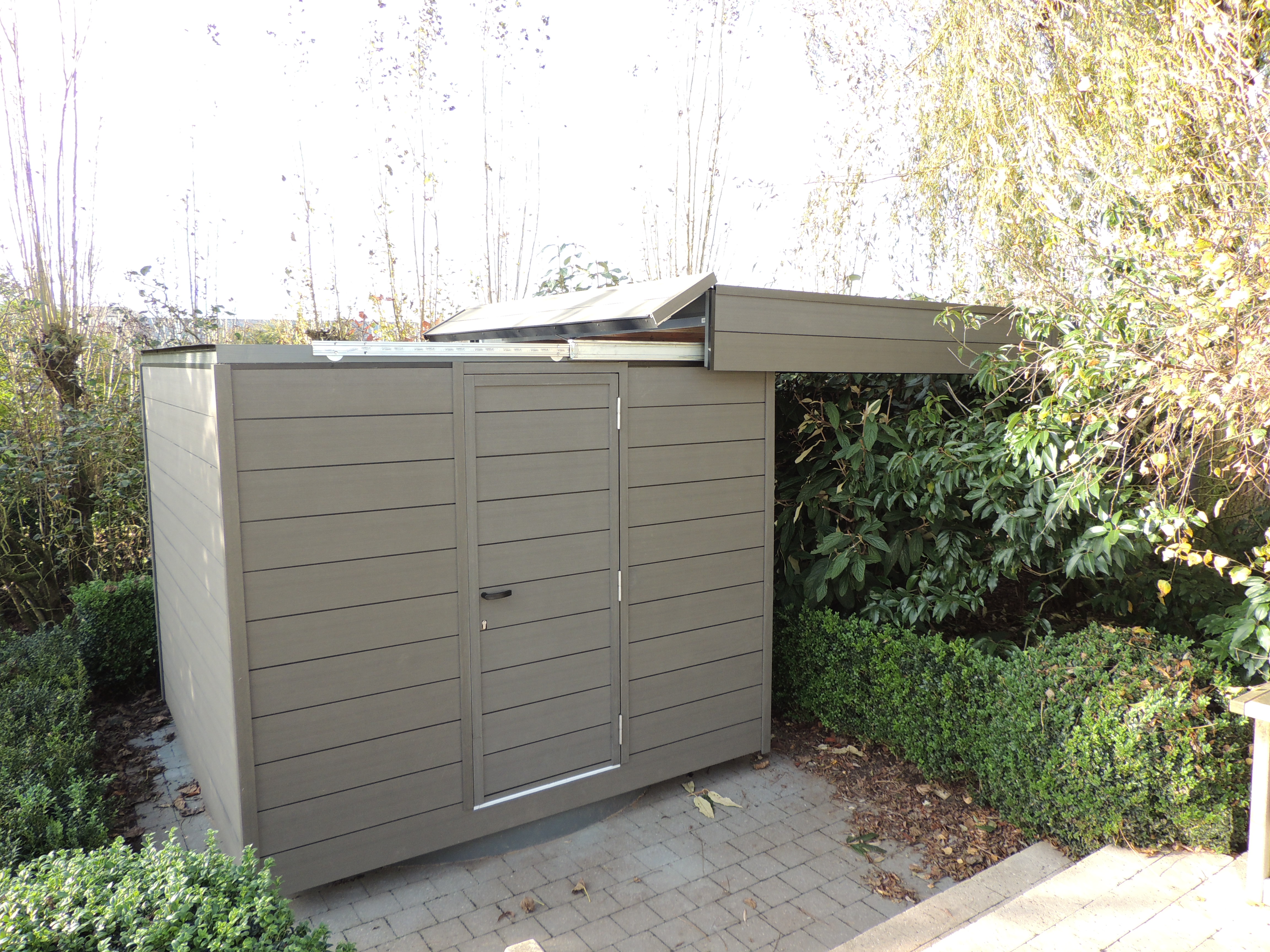

DSCN2537
Open roll off roof with closed door.
DSCN2539

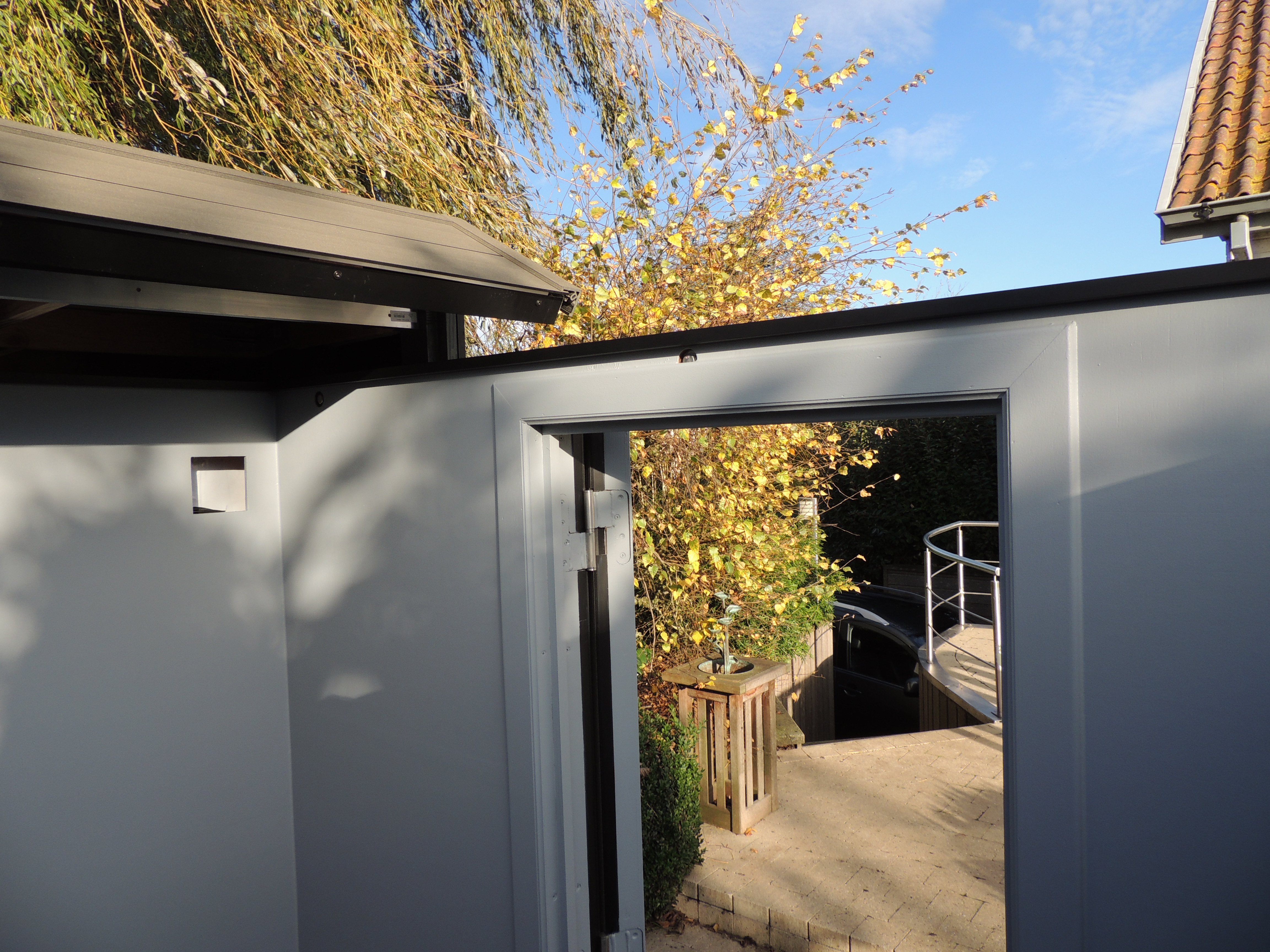

Interior with door opening.
DSCN2541

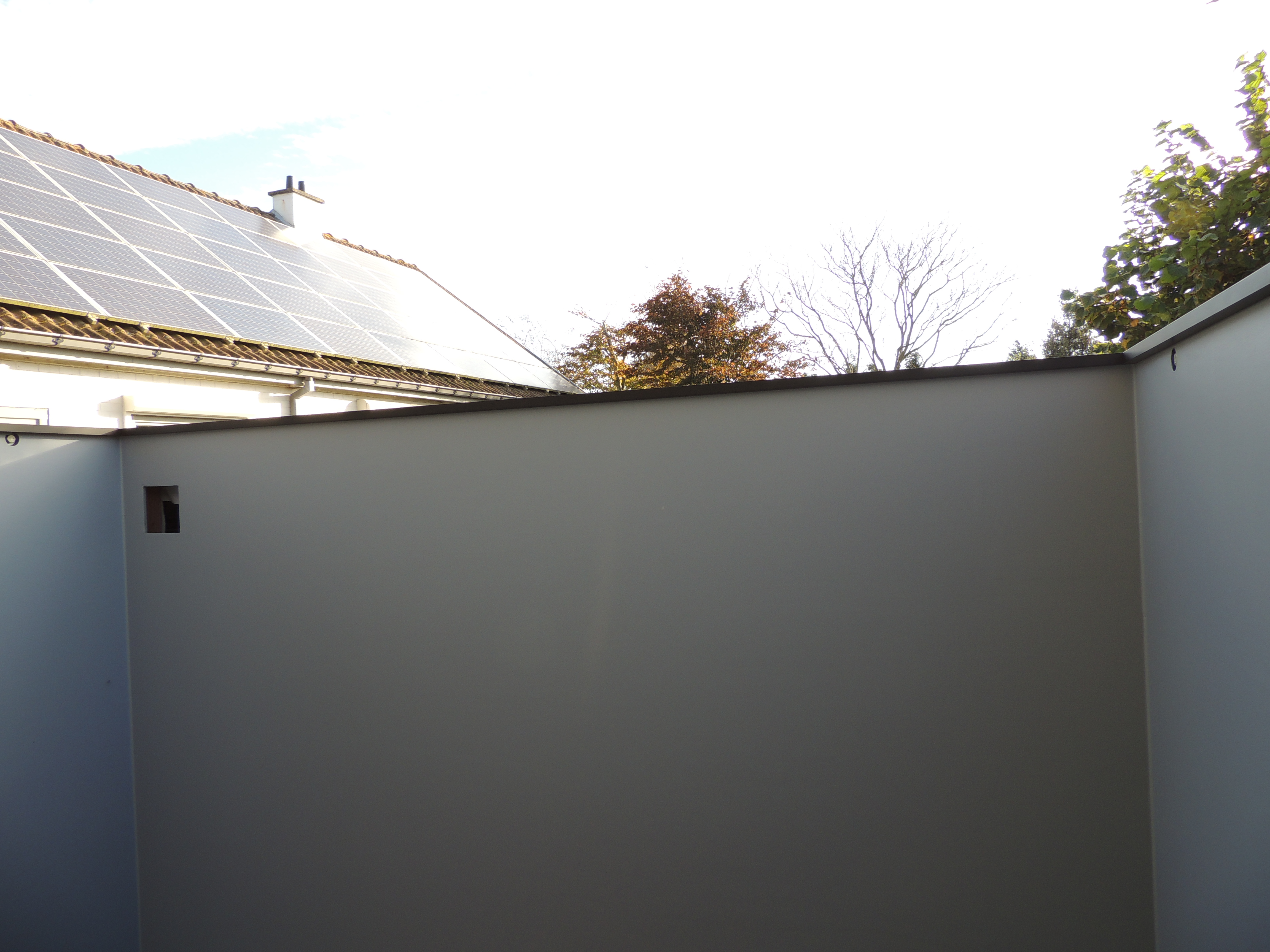

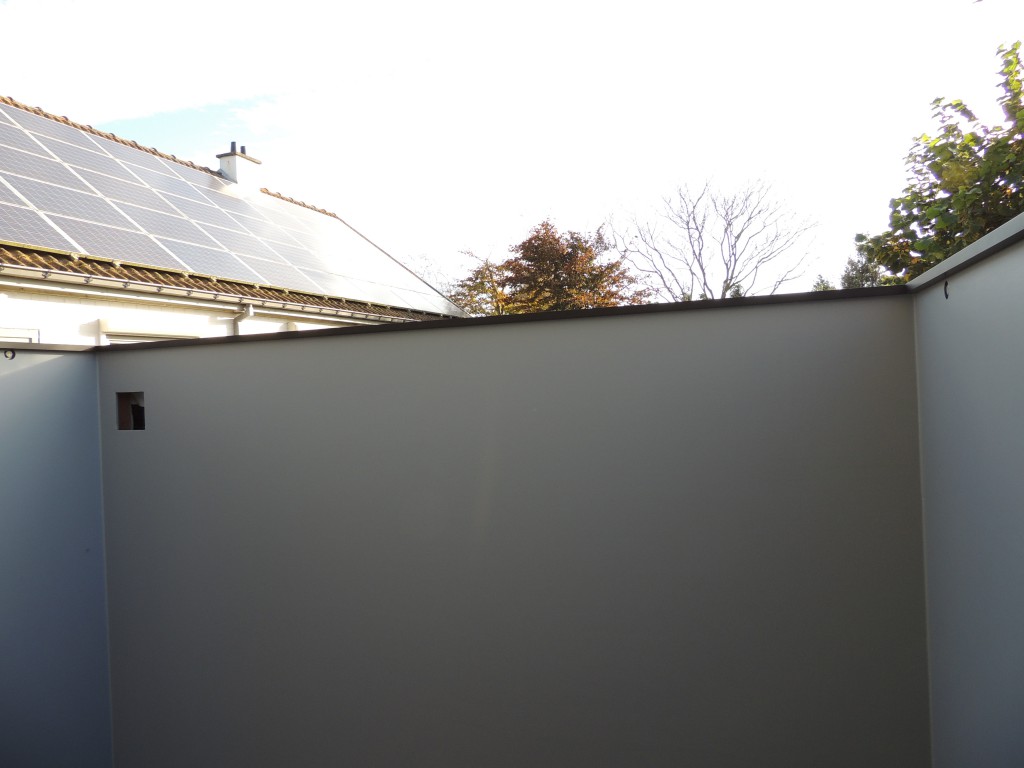

Open view to the sky.
DSCN2578

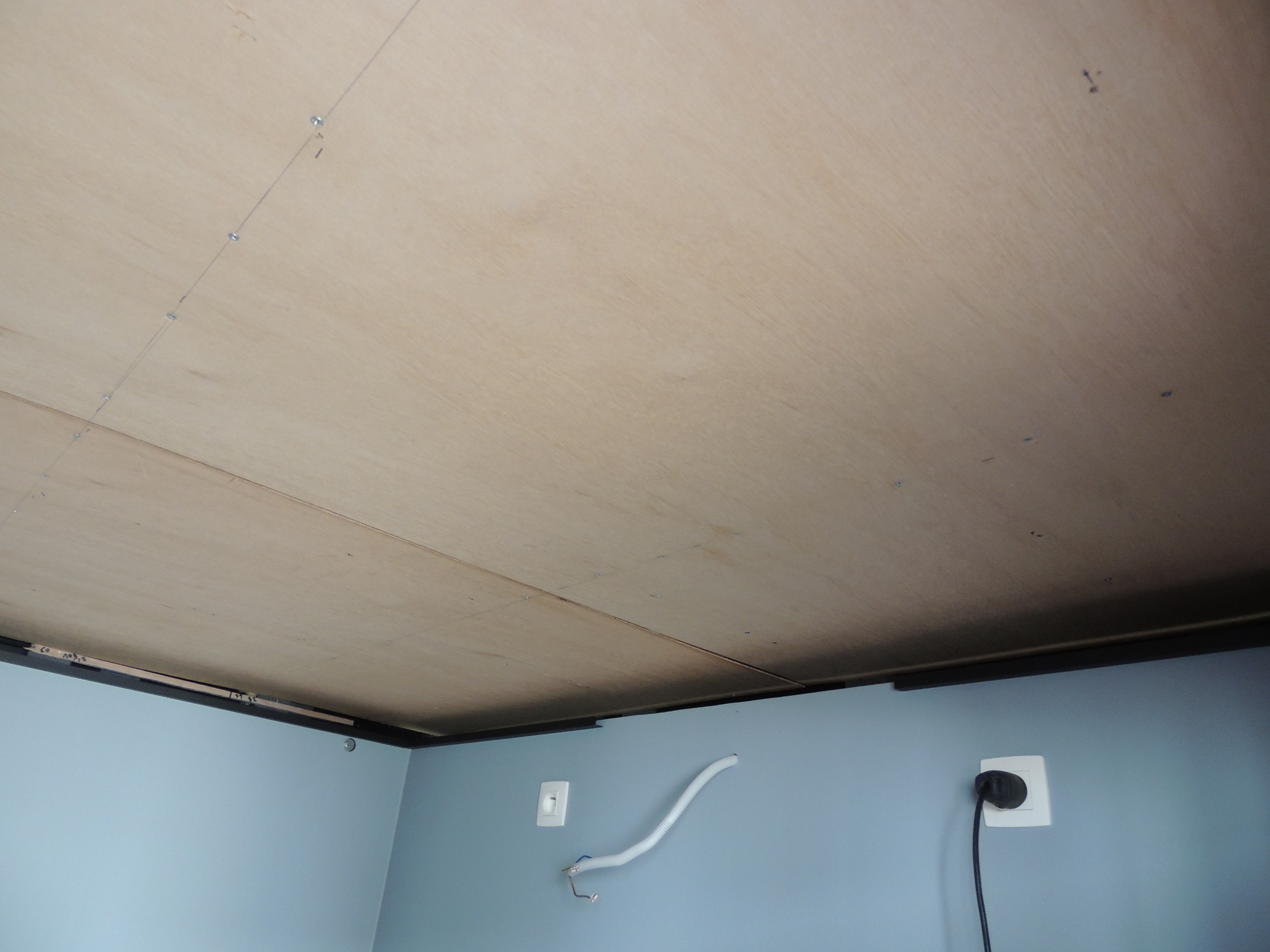

Wooden plate lining against the ceiling.
DSCN2585

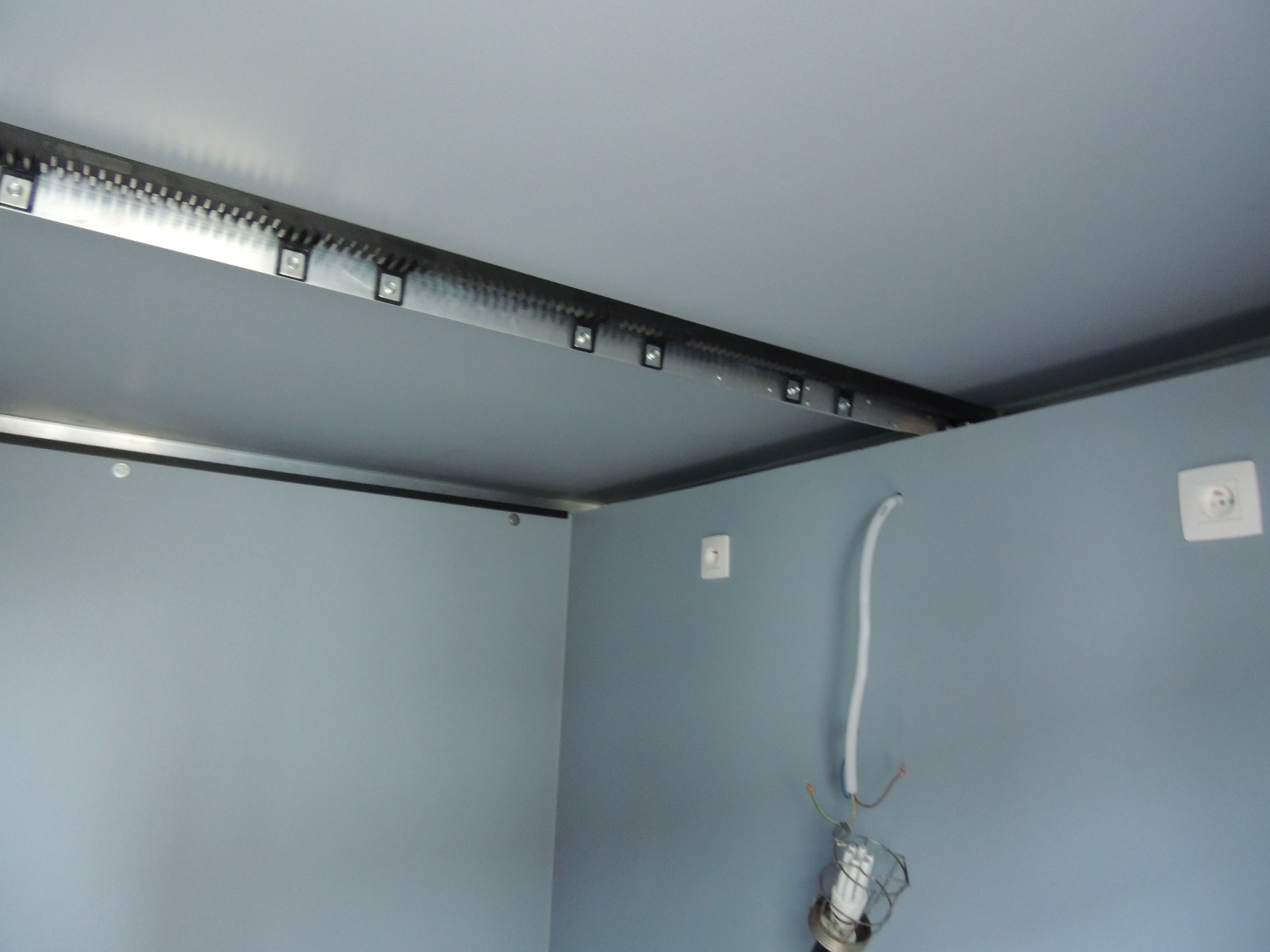

Painted ceiling with a L – profile and “temporary” mounted rack.
DSCN2594

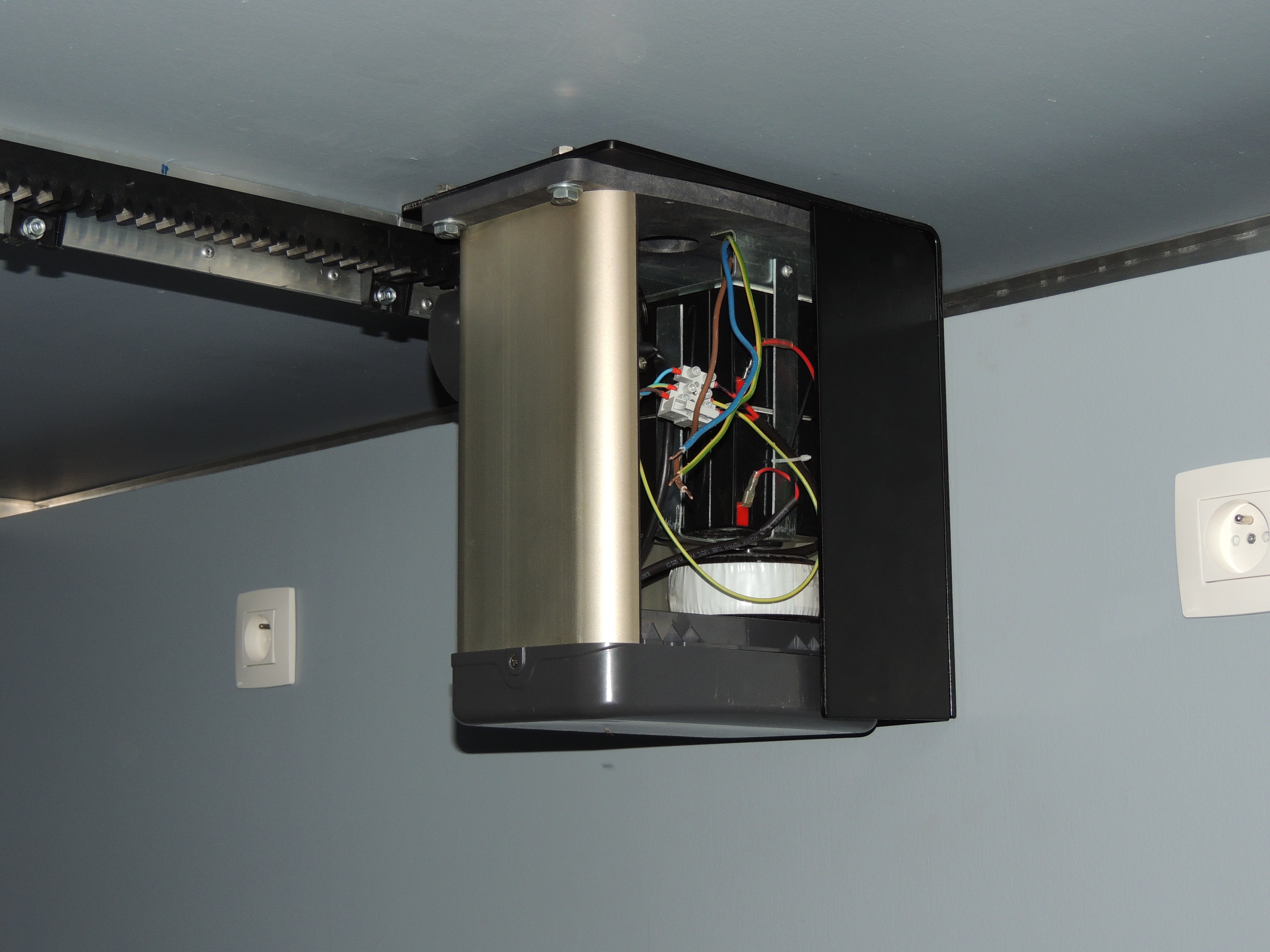

Automatisation of the roll off roof by drive motor with built-in reduction and sprocket, here with open engine box and visible wiring.
DSCN2599

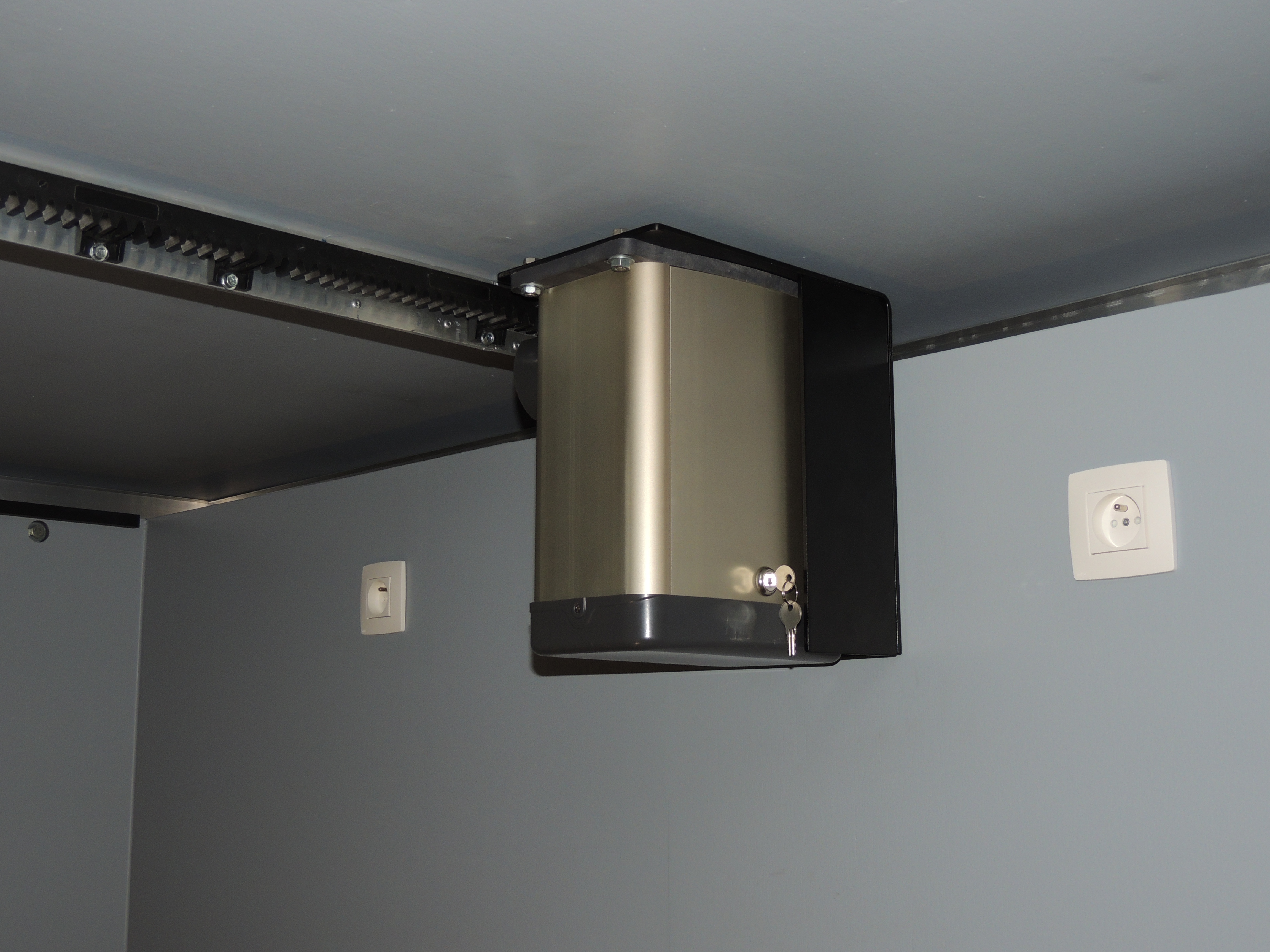

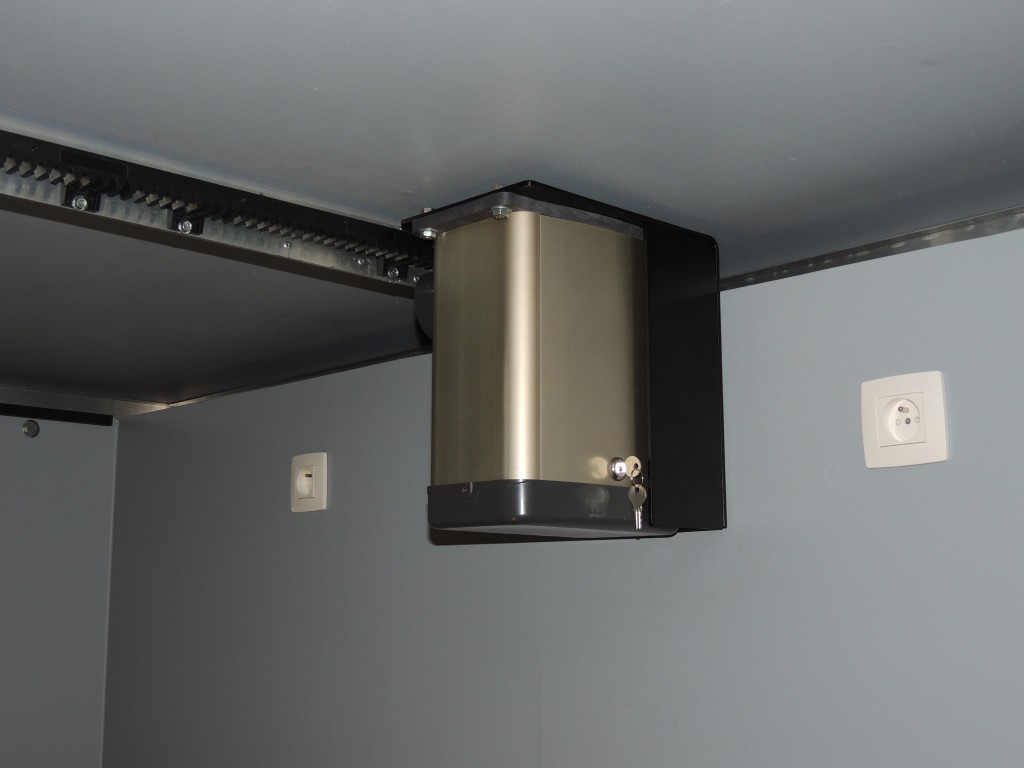

Connected drive motor is ready for use. Everything is wireless. The drive motor has a delayed start-up when starting and delayed end loop when stop.

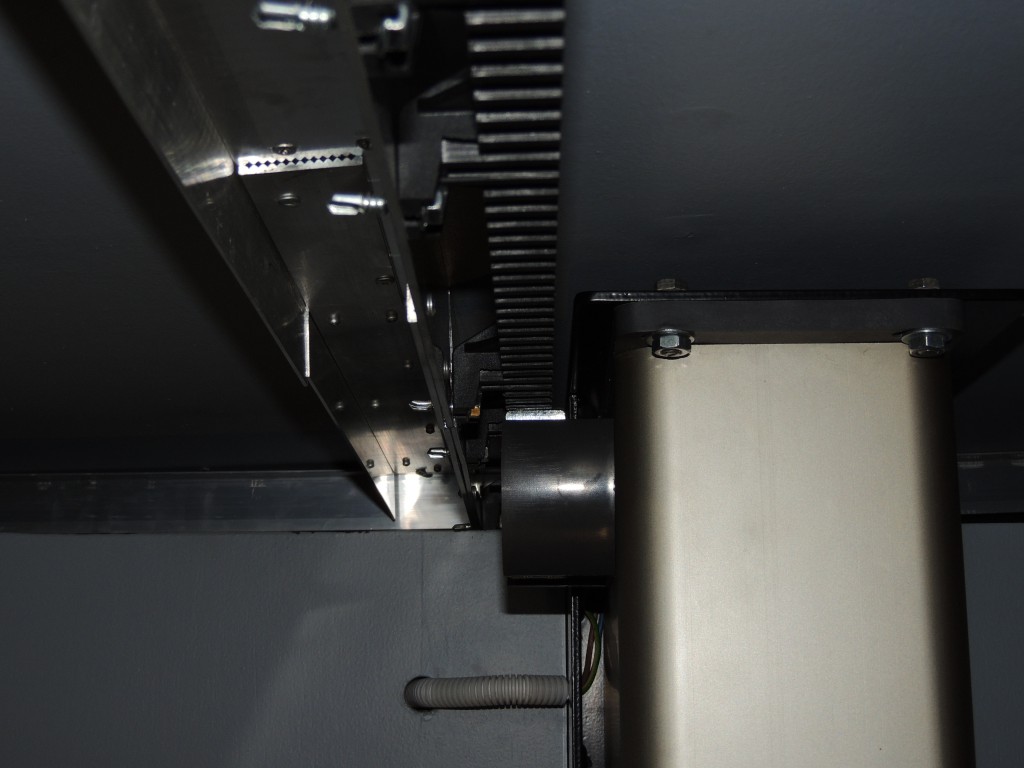

DSCN2600
Close up of the reinforced rack-profile, with gearing after adjustment and positioning.
DSCN2603

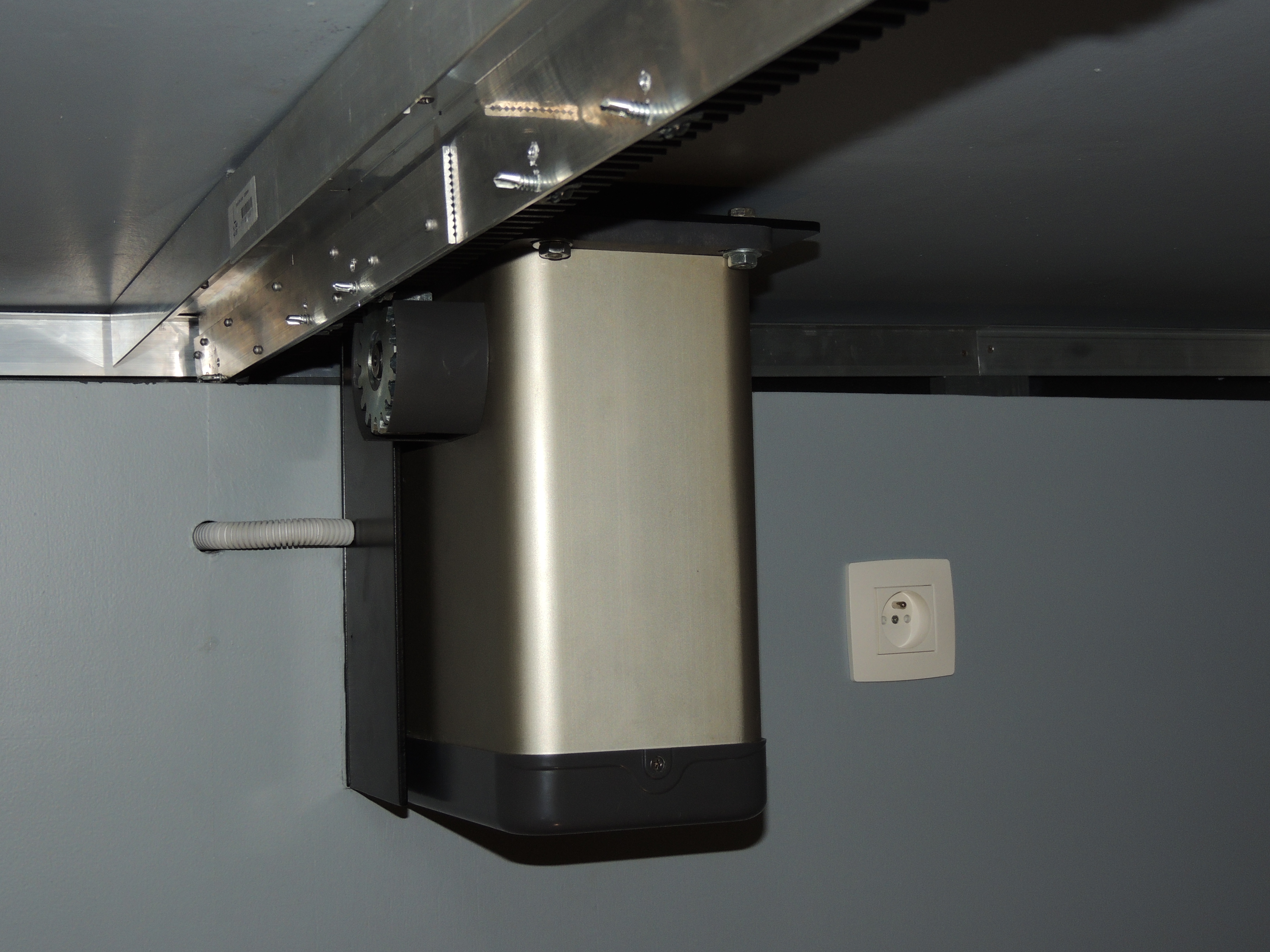

Mounting plate with reverse mounted drive motor.
DSCN2605

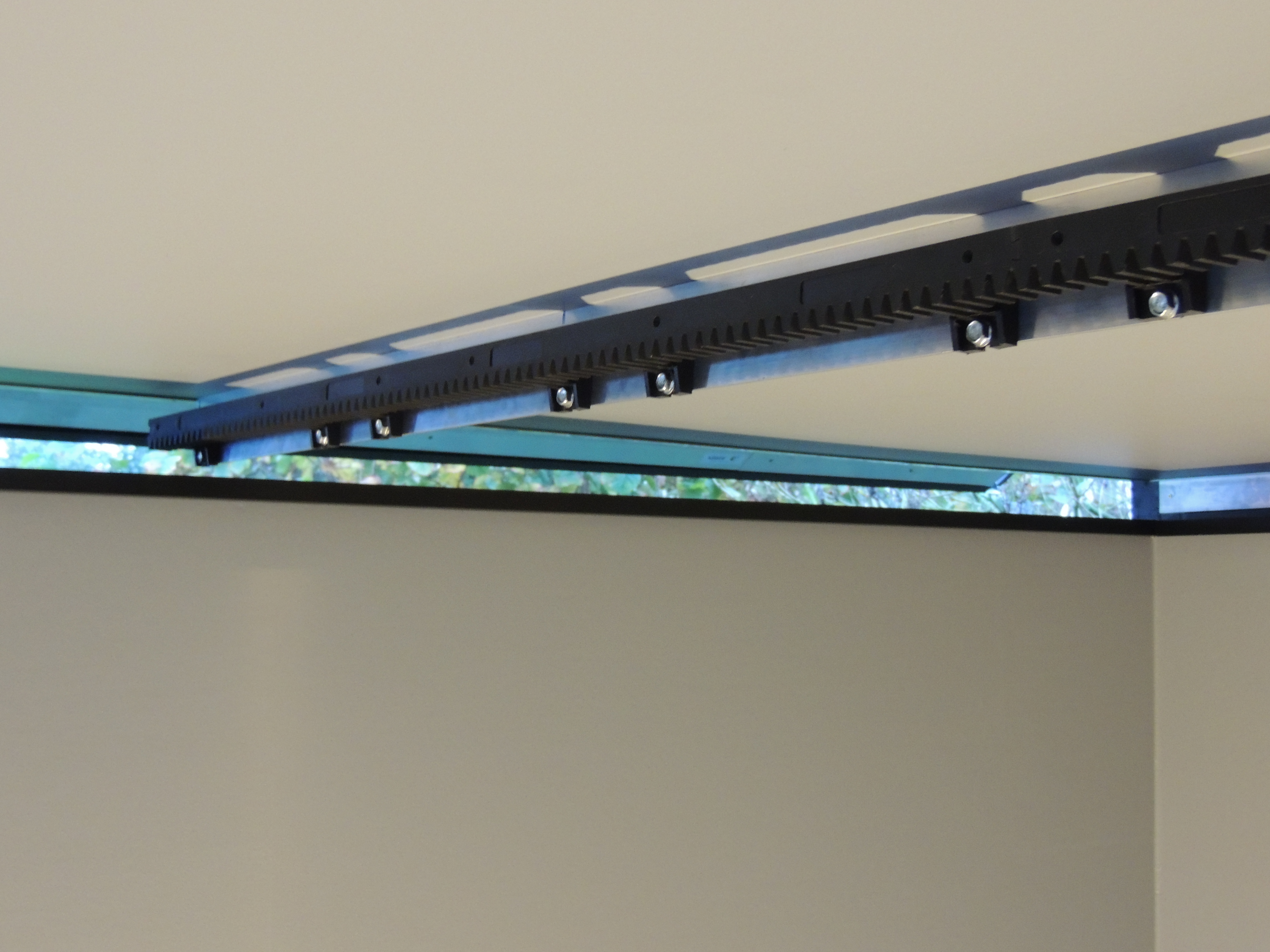

Rack accurately aligned and fastened over the entire length in relation to the sprocket.
DSCN2606

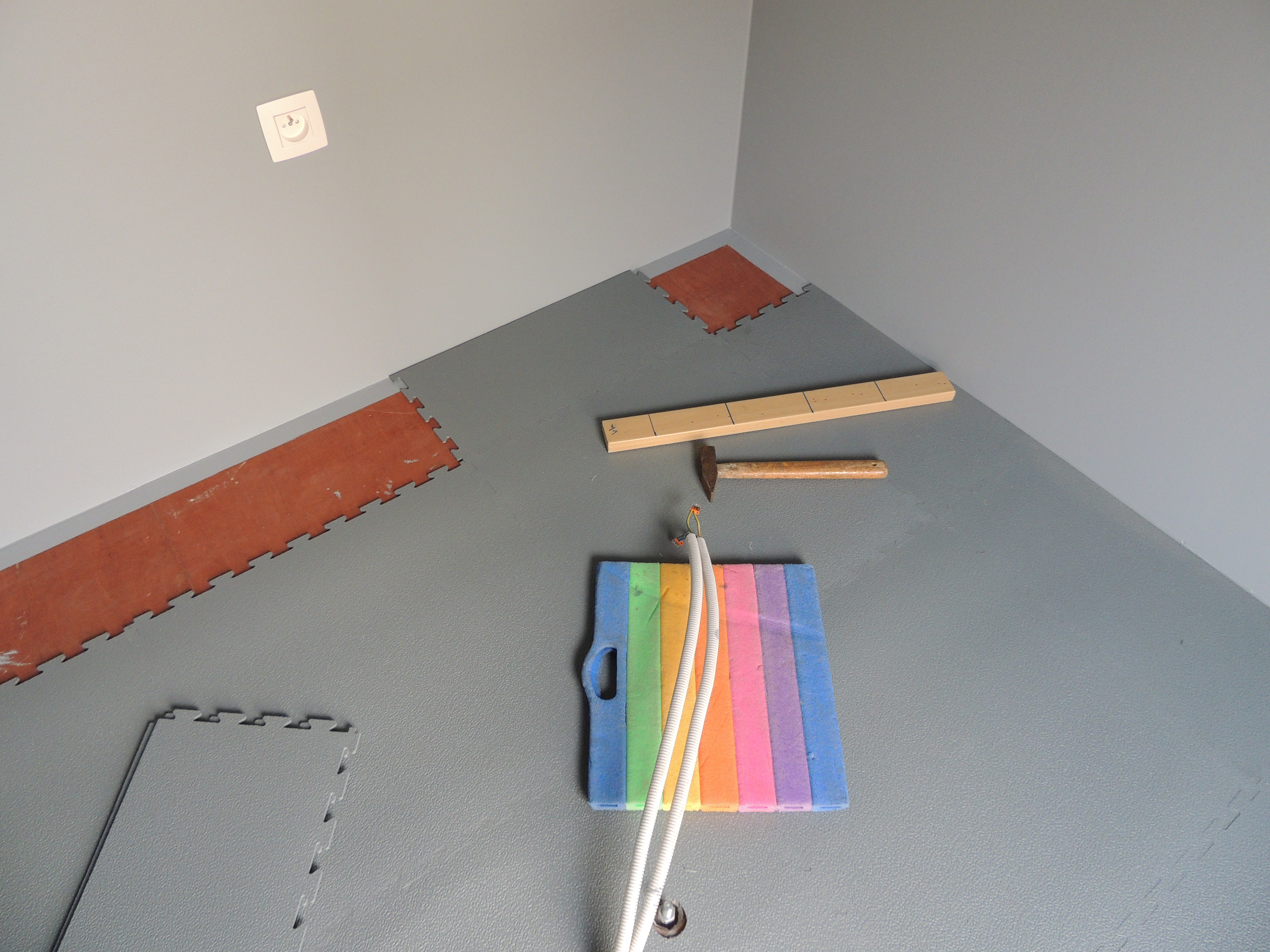

Inserting the plastic floor from the middle to the sides.
DSCN2608

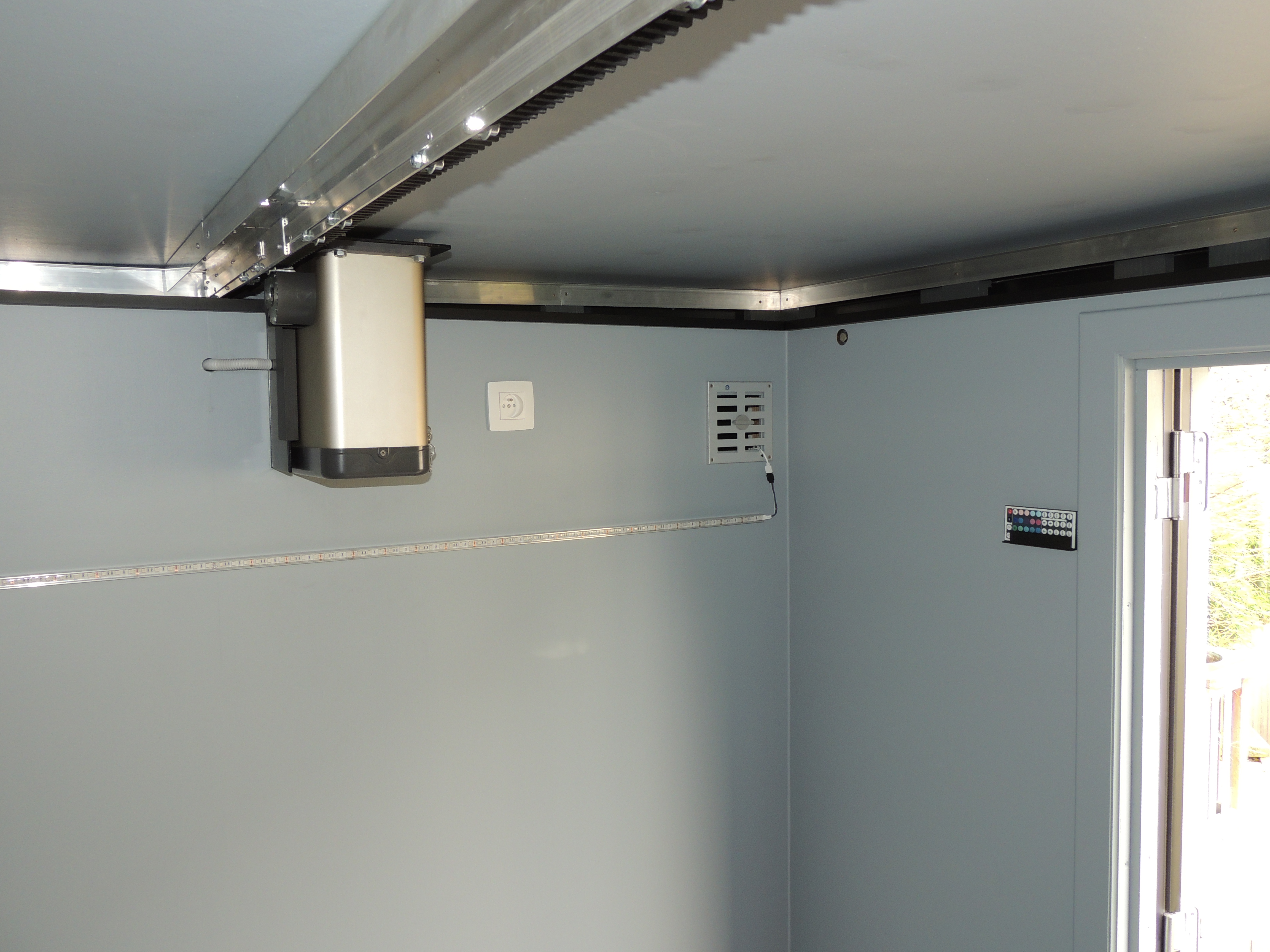

Aluminum U – shaped profile with white led “day” lights along the motor side.

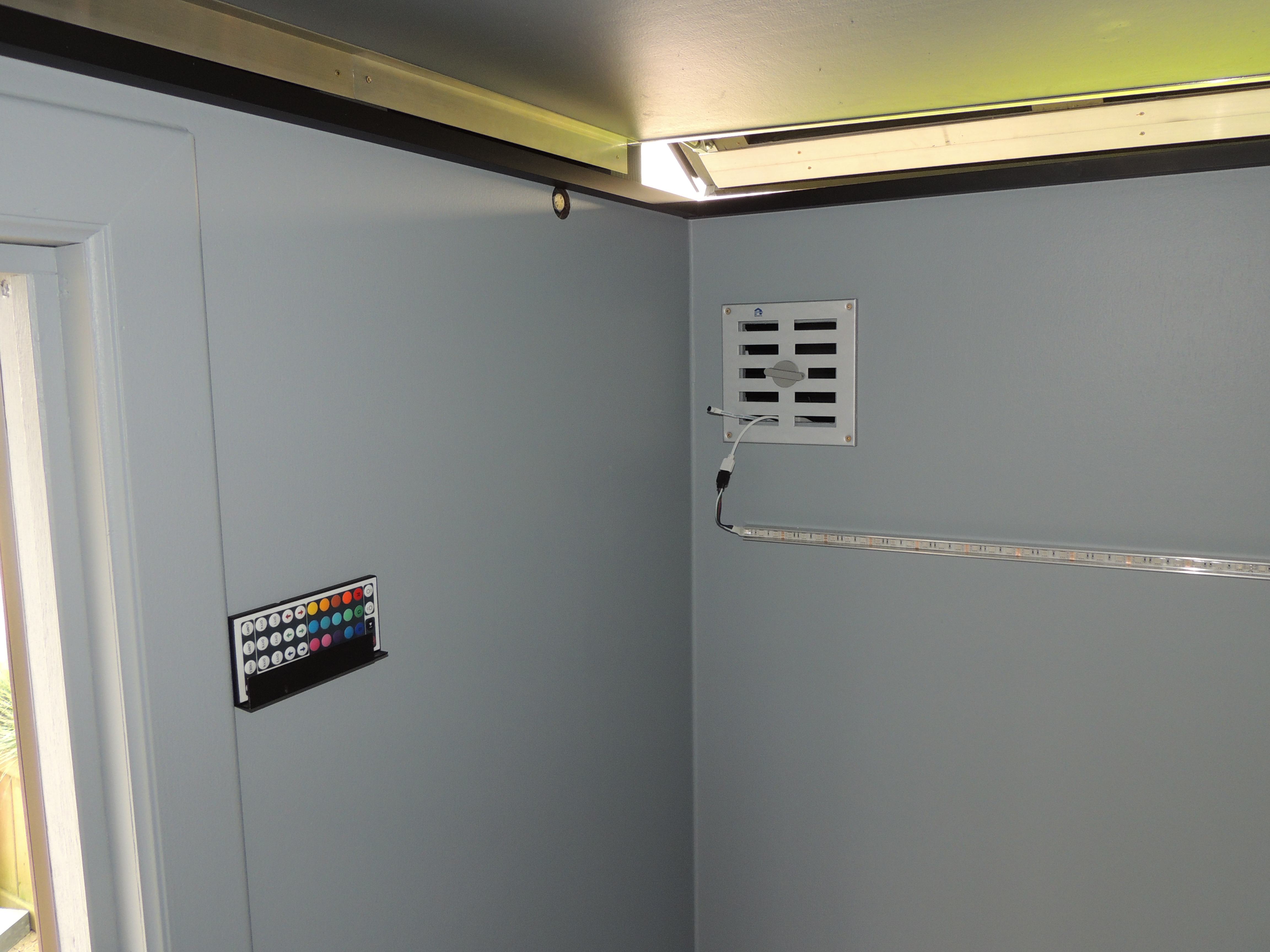

DSCN2609

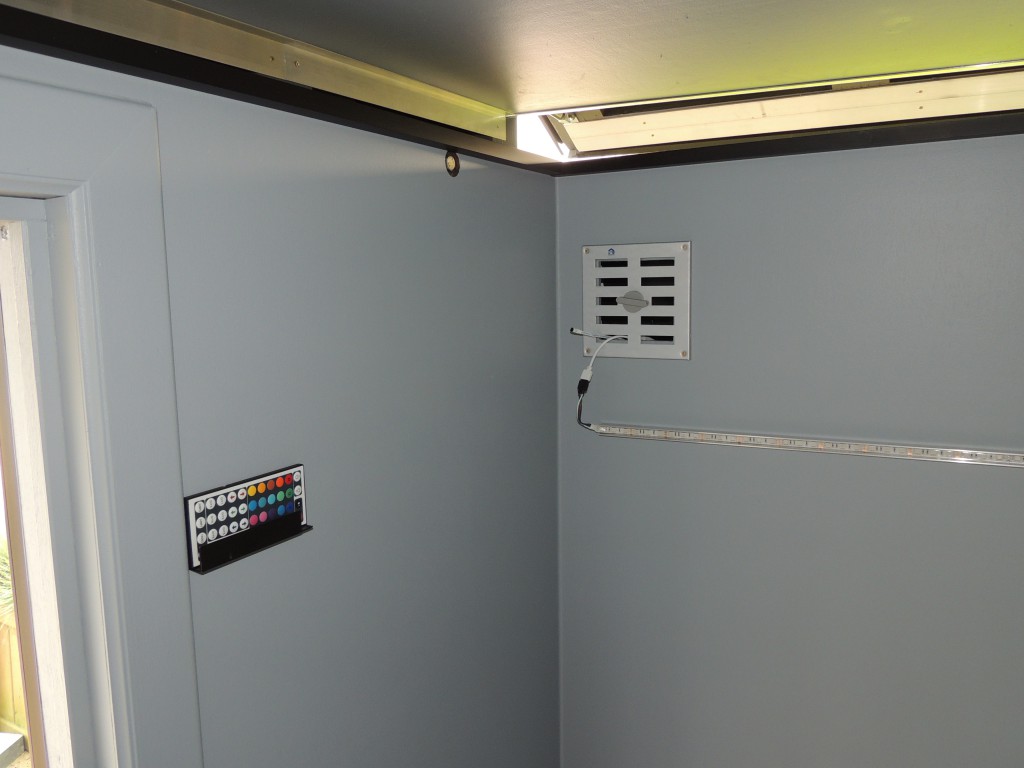

Same aluminium profile with red led “night” lights along the other side.
DSCN2610

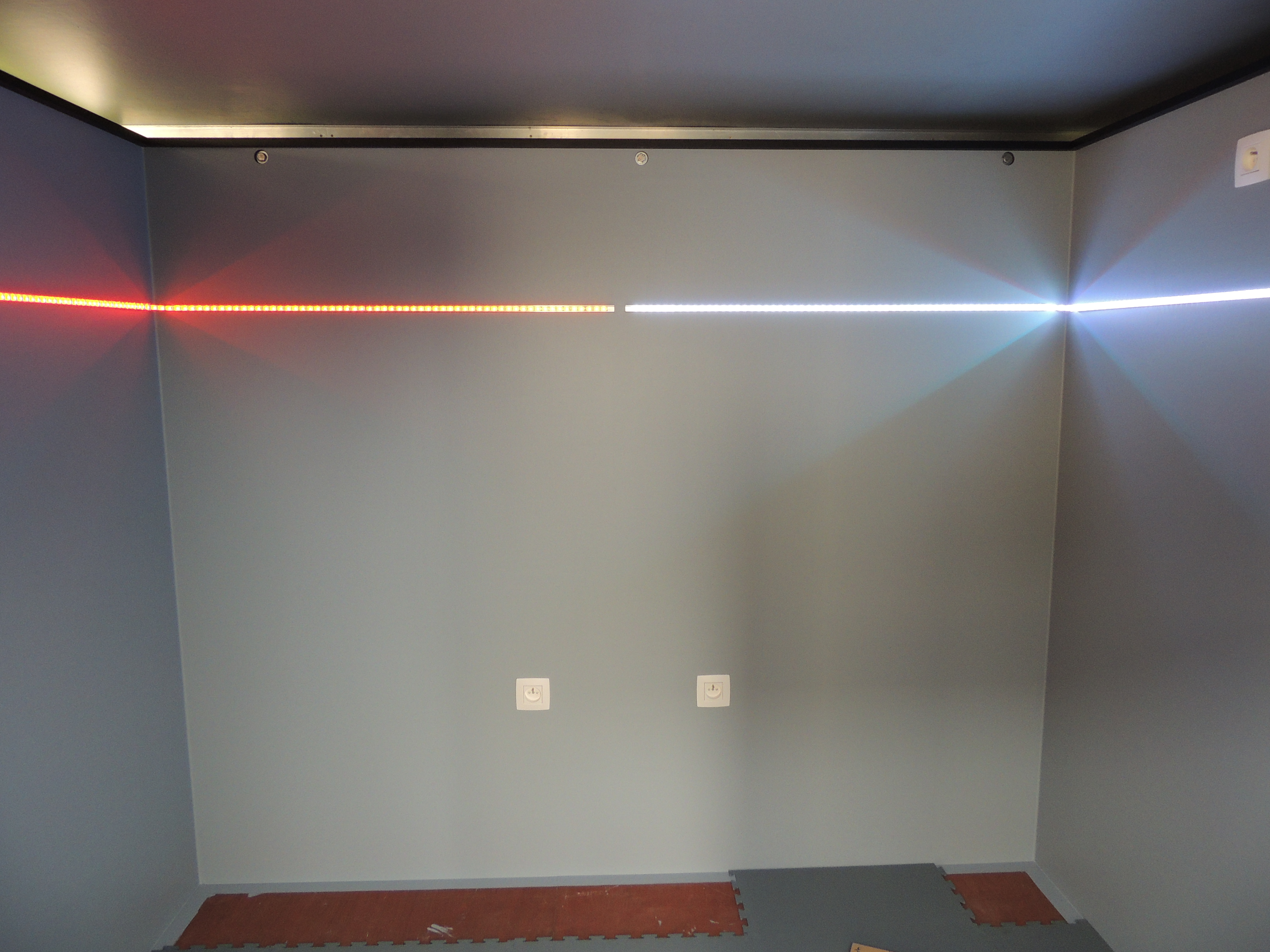

Successfull lighting with remote control.

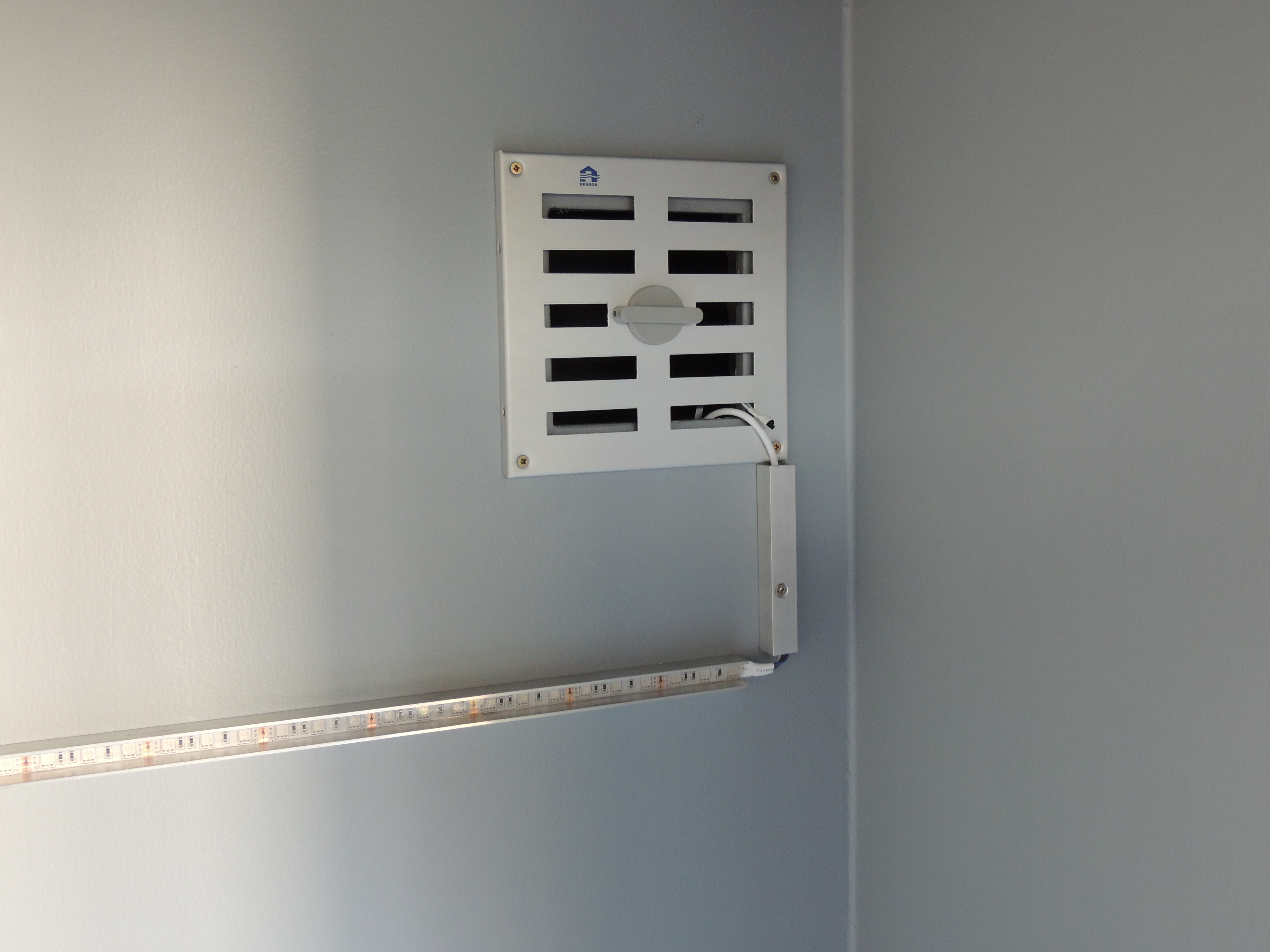

DSCN2620

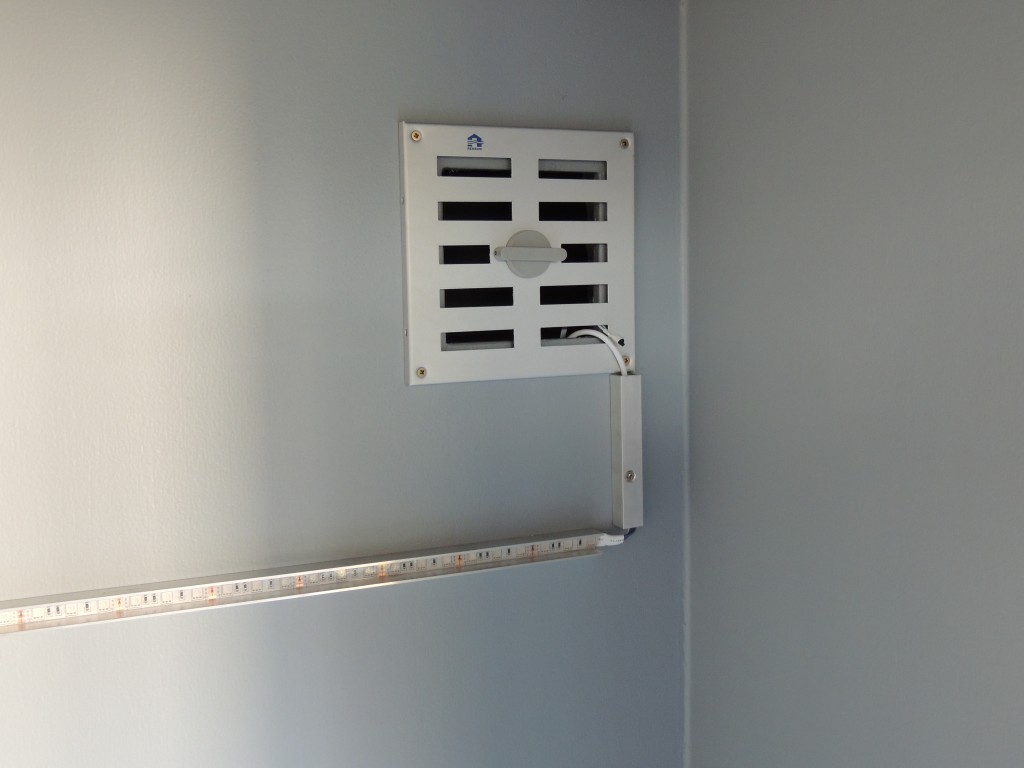

Ventilation to prevent “condensation”.

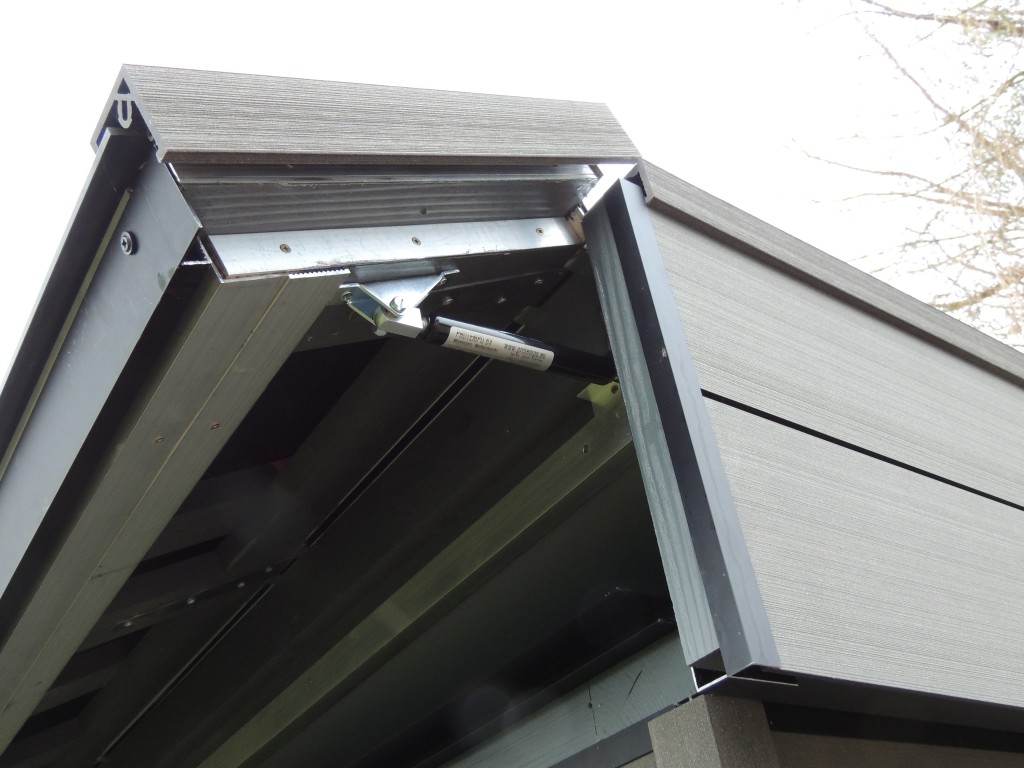

DSCN2623-1

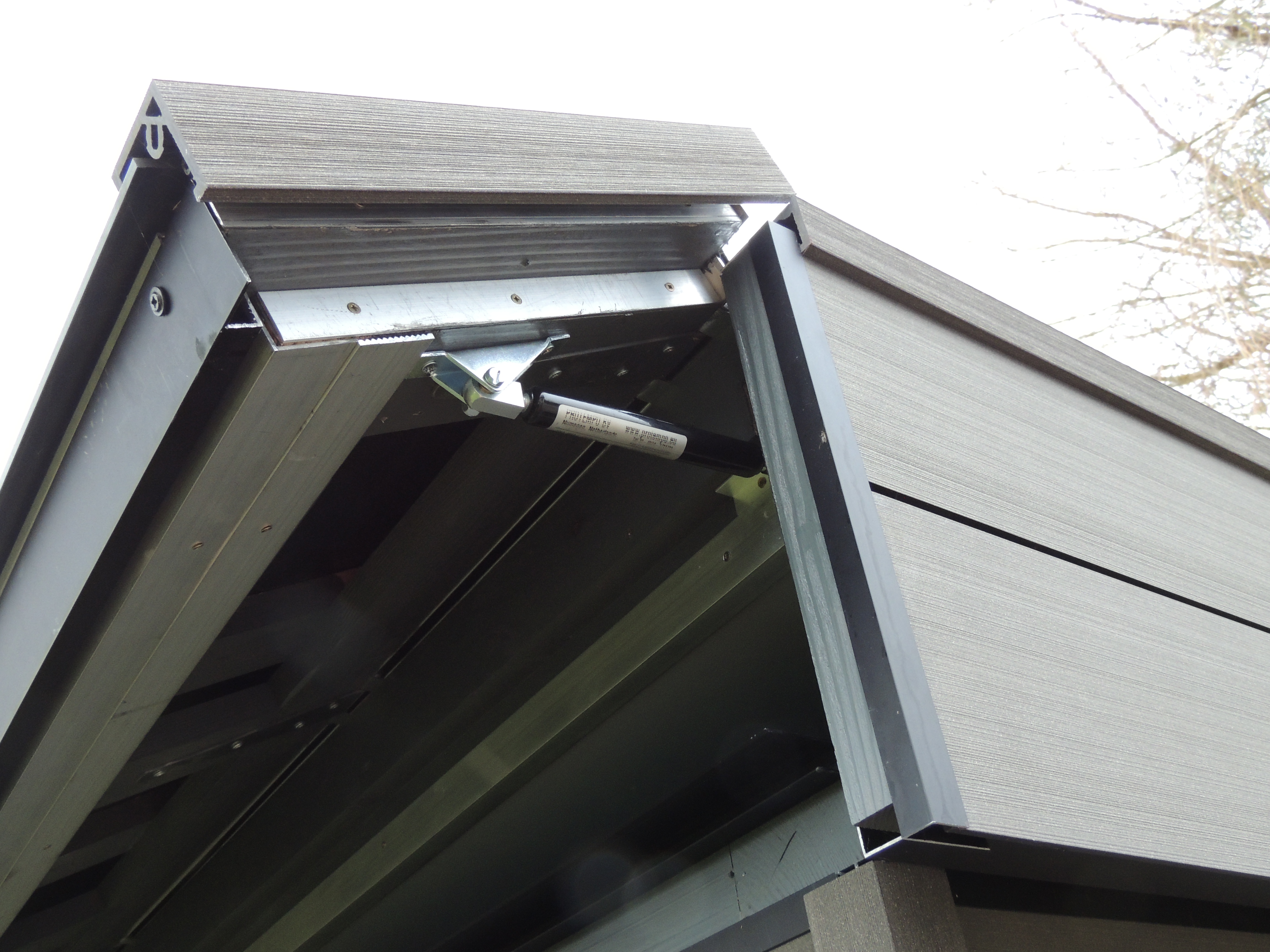

Newly mounted gas springs on both sides to keep the side door on a fixed open stand.
DSCN3747

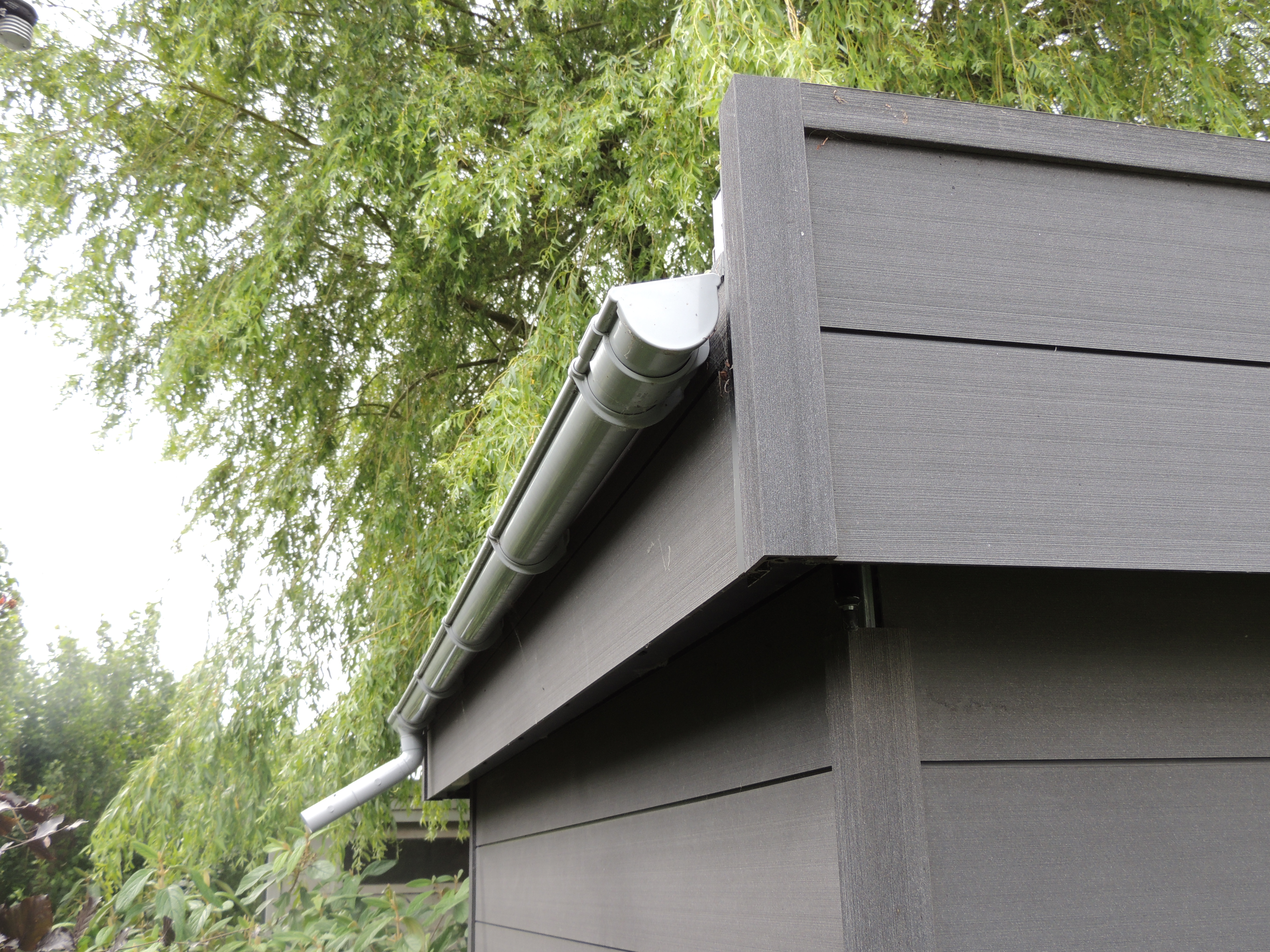

PVC water drainage on the back.
DSCN2675

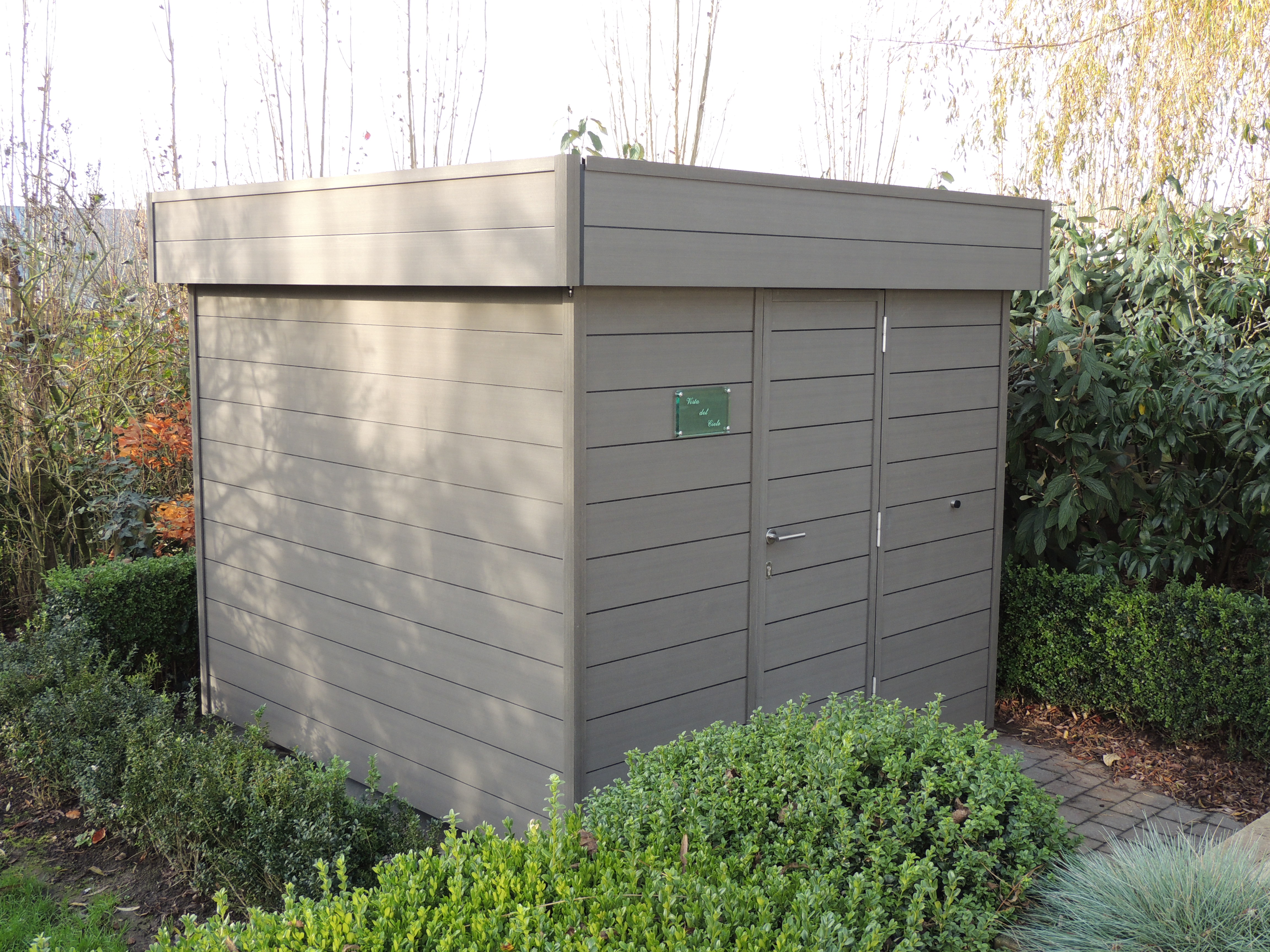

Observatory is newly built and ready for further finishing.
DSCN2676
Logo with stainless steel parts shows off in front.
